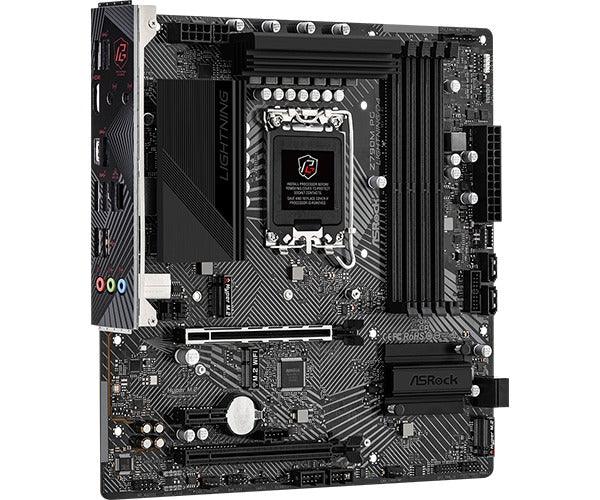

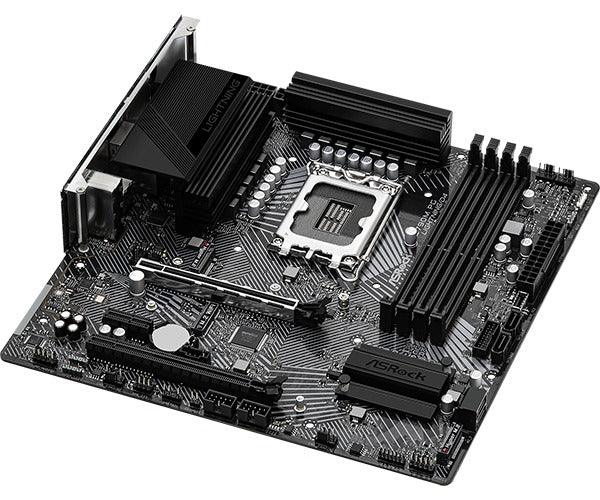

Asrock Z790M Phantom Gaming Lightning D4 Motherboard



• Supports 13^th Gen & 12^th Gen Intel^® Core™ Processors
• 10+1+1 Phase Power Design, Dr.MOS for VCore+GT
• 4 x DDR4 DIMMs, supports up to 5333+(OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
• 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• Intel^® 1G LAN

SPECIFICATIONS:

Unique Feature	Rock-Solid Durability 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
CPU	Supports 13th Gen & 12th Gen Intel® Core™ Processors LGA1700 Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT)
Chipset	Intel® Z790
Memory	Dual Channel DDR4 Memory Technology   4 x DDR4 DIMM Slots  Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*  Supports ECC UDIMM memory modules (operate in non-ECC mode)  Max. capacity of system memory: 128GB*  Supports Intel® Extreme Memory Profile (XMP) 2.0 *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Graphics	Intel® Xe Graphics Architecture (Gen 12)  1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)  Nahimic Audio
LAN	Gigabit LAN 10/100/1000 Mb/s  Intel® I219V
Slots	CPU:  1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset:  1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*  1 x PCIe 3.0 x1 Slot (PCIE2)*  1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™
Storage	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*  4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices  Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	1 x USB 3.2 Gen2 Type-A (Rear) 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen1 Type-C (Front) 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
Connector	1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	2 x Antenna Mounting Points 1 x HDMI Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	1 x User Manual 2 x SATA Data Cables 3 x Screws for M.2 Sockets
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	Microsoft® Windows® 10 64-bit / 11 64-bit *Windows® 10 only supports version 21H2 or later
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
