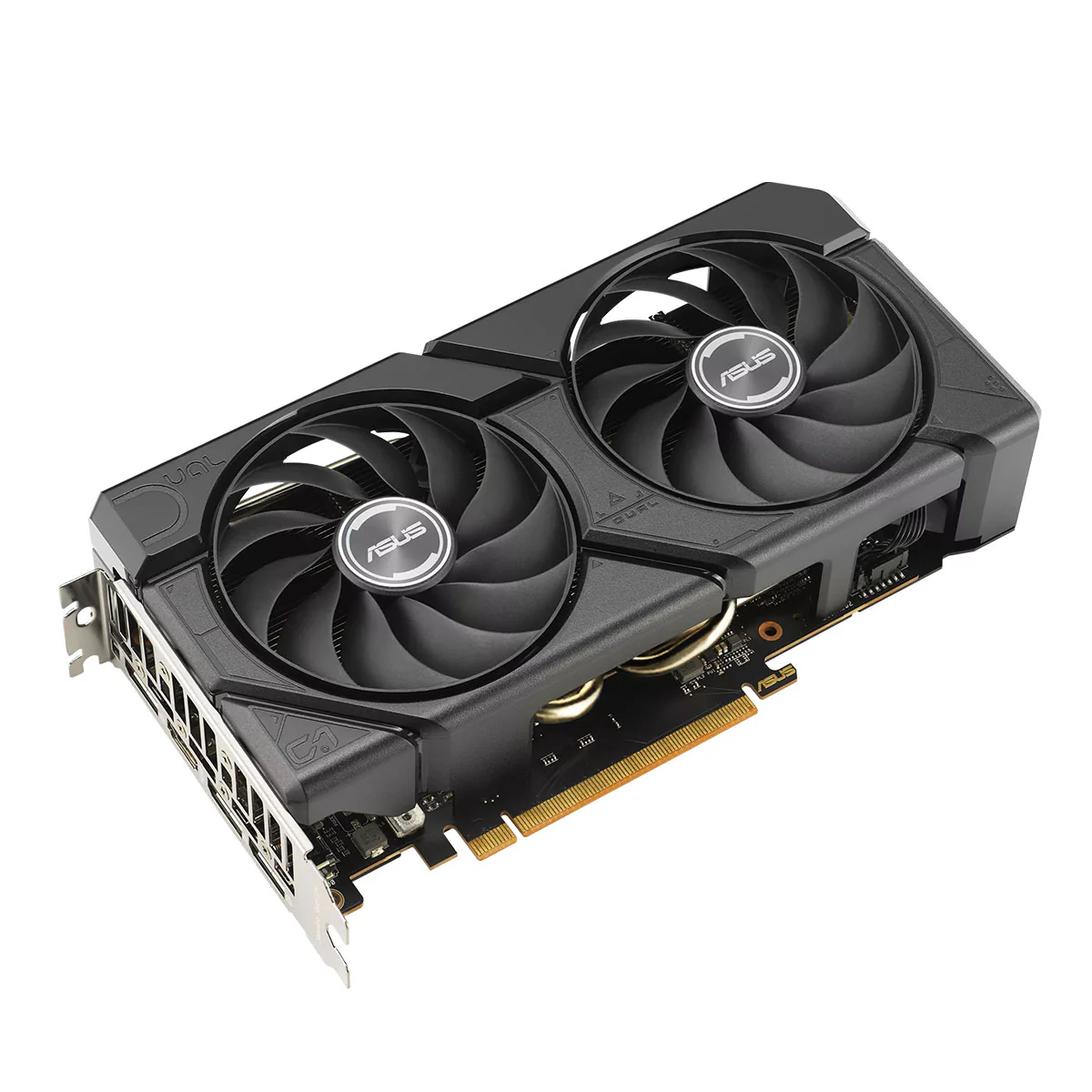

Asus Dual AMD Radeon RX 7600 EVO OC 8GB GDDR6 Graphics Card

• OC Mode: up to 2715 MHz (Boost Clock)/ up to 2300 MHz (Game Clock)
• Axial-tech Fan design features a smaller fan hub to increase airflow through the cooling array
• Dual ball fan bearings last up to twice as long as conventional designs
• 2.5-Slot design allows for greater build compatibility while maintaining premium cooling
• 0dB technology lets you enjoy light gaming in relative silence
• Auto-Extreme precision automated manufacturing for higher reliability
• A stainless-steel bracket is harder and more resistant to corrosion
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

COOLING

ENGINEERING

SOFTWARE

SPECIFICATION

Graphic Engine	AMD Radeon™ RX 7600
Bus Standard	PCI Express 4.0
OpenGL	OpenGL®4.6
Video Memory	8GB GDDR6
Engine Clock	OC mode: up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock)
	Default mode: up to 2695 MHz (Boost Clock)/up to 2280 MHz (Game Clock)
Stream Processors	2048
Memory Speed	18 Gbps
Memory Interface	128-bit
Resolution	Digital Max Resolution 7680 x 4320
Interface	Yes x 1 (Native HDMI 2.1)
	Yes x 3 (Native DisplayPort 1.4a)
	HDCP Support Yes (2.3)
Maximum Display Support	4
NVlink/ Crossfire Support	No
Accessories	1 x Speedsetup Manual
Software	ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions	22.9 x 12.3 x 4.9 cm
	9.02 x 4.85 x 1.96 inch
Recommended PSU	550W
Power Connectors	1 x 8-pin
Slot	2.5 Slot
Note	* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
	* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
	* Crossfire Support for DirecX® 12 and Vulkan®
	* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
	* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
