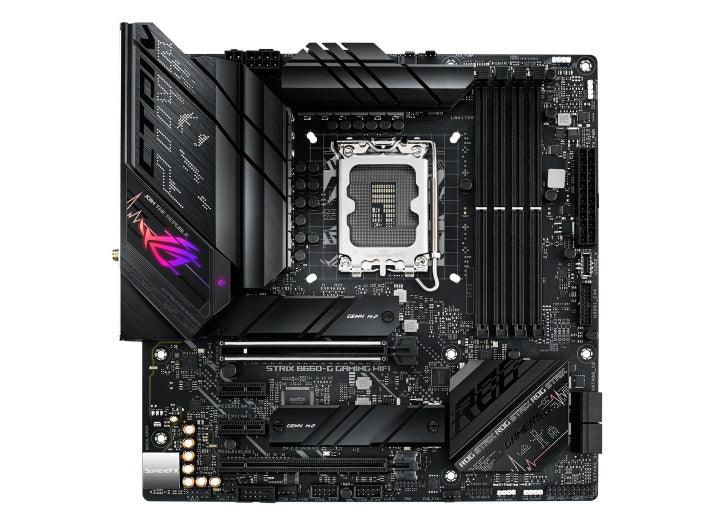

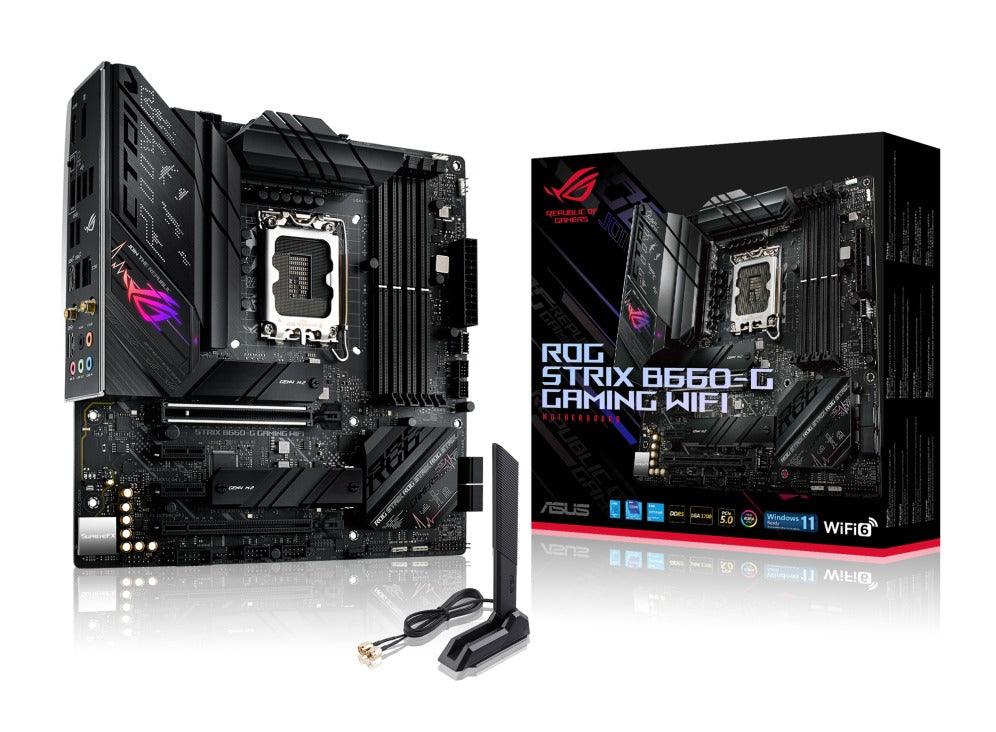

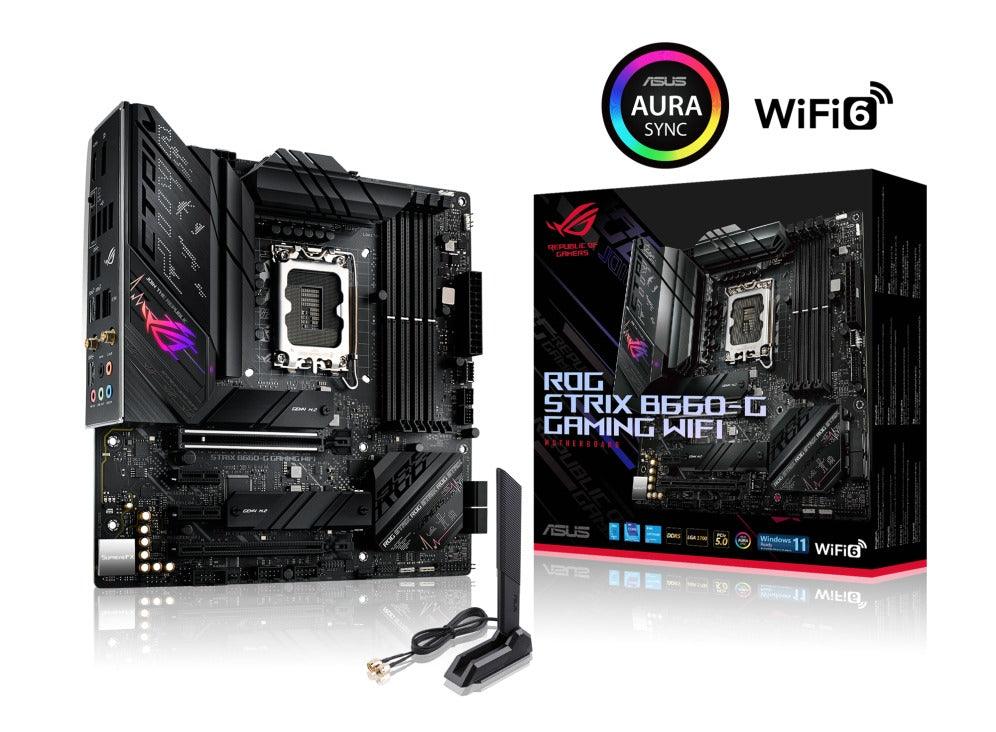

ASUS ROG Strix B660-G Gaming Wifi Motherboard

ROG STRIX B660-G GAMING WIFI

Intel^® B660 LGA 1700 mATX motherboard with PCIe^® 5.0, 12+1 power stages, DDR5 memory support, ASUS Enhanced Memory Profile, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, two PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2x2 Type-C^®, SATA and Aura Sync RGB lighting

• Intel^® LGA 1700 socket: Ready for 13th Gen Intel^® Core^™ Processors and 12th Gen Intel^® Core^™, Pentium^® Gold, and Celeron^® Processors
• Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, and two onboard M.2 heatsinks
• High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI^® 2.1 and DisplayPort^™ 1.4 output, two M.2 slots, as well as USB 3.2 Gen 2x2 Type-C^®
• Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, Q-LED and BIOS FlashBack^™ button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
• Industry-leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS^® Sound Unbound^™ and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86

SPECIFICATIONS:

CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors   Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**   * Refer to www.asus.com for CPU support list.   ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B660 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory*   Dual Channel Memory Architecture   Supports Intel® Extreme Memory Profile (XMP)   OptiMem II   *Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics	1 x DisplayPort**   1 x HDMI® port***   *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.   ** Support 8K@60Hz as specified in DisplayPort 1.4.   *** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® 13th & 12th Gen Processors   1 x PCIe 5.0 x16 slot(s)   Intel® B660 Chipset   1 x PCIe 3.0 x16 slot (supports x4 mode)   2x PCIe 4.0 x1 slots
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports   Intel® 13th & 12th Gen Processors   M.2_1 slot (Key M), type 2242/2260/2280   - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.   Intel® B660 Chipset**   M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)   4 x SATA 6Gb/s ports   ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet	1 x Intel® 2.5Gb Ethernet   ASUS LANGuard
Wireless & Bluetooth	"Wi-Fi 6  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)   Supports 2.4/5GHz frequency band   Bluetooth v5.2"
USB	Rear USB (Total 9 ports)   1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)   1 x USB 3.2 Gen 2 port(s) (1 x Type-A)   3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)   4 x USB 2.0 port(s) (4 x Type-A)   Front USB (Total 7 ports)   1 x USB 3.2 Gen 2 connector (supports USB Type-C®)   1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports   2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio	"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A   - Impedance sense for front and rear headphone outputs   - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking   - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input   - Supports up to 32-Bit/192 kHz playback"   Audio Features   - SupremeFX Shielding Technology   - Savitech SV3H712 AMP   - Premium audio capacitors   - Audio cover   * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)   1 x USB 3.2 Gen 2 port (1 x Type-A)   3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)   4 x USB 2.0 port(s) (4 x Type-A)   1 x DisplayPort   1 x HDMI® port   1 x Wi-Fi Module   1 x Intel® 2.5Gb Ethernet port   5 x Audio jacks   1 x BIOS FlashBack™  button
Internal I/O Connectors	Fan and Cooling related   1 x 4-pin CPU Fan header(s)   1 x 4-pin AIO Pump header(s)   2 x 4-pin Chassis Fan header(s)   Power related   1 x 24-pin Main Power connector   1 x 8-pin +12V Power connector   Storage related   2 x M.2 slots (Key M)   4 x SATA 6Gb/s ports   USB   1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)   1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports   2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports   Miscellaneous   3 x Addressable Gen 2 header(s)   1 x AURA RGB header(s)   1 x Clear CMOS header   1 x COM Port header   1 x Front Panel Audio header (AAFP)   1 x S/PDIF Out header   1 x SPI TPM header (14-1pin)   1 x 20-3 pin System Panel header with Chassis intrude function   1 x Thermal Sensor header   1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+   - 5K Black Metallic Capacitors   ASUS Q-Design   - M.2 Q-Latch   - Q-DIMM   - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])   - Q-Slot   ASUS Thermal Solution   - M.2 heatsink   ASUS EZ DIY   - BIOS FlashBack™ button   - BIOS FlashBack™ LED   - CPU Socket lever protector   - ProCool   - Pre-mounted I/O shield   - SafeSlot   - SafeDIMM   AURA Sync   - AURA RGB header(s)   - Addressable Gen 2 header(s)
Software Features	ROG Exclusive Software   - GameFirst VI   - ROG CPU-Z   - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion   - Sonic Radar III   - DTS® Sound Unbound   - Anti-virus software   ASUS Exclusive Software   Armoury Crate   - AIDA64 Extreme (60 days free trial)   - AURA Creator   - AURA Sync   - Fan Xpert 4   - Two-Way AI Noise Cancelation   AI Suite 3   - Performance And Power Saving Utility    TPU    EPU    DIGI+ VRM   MyAsus   WinRAR   UEFI BIOS   AI Overclocking Guide   ASUS EZ DIY   - ASUS CrashFree BIOS 3   - ASUS EZ Flash 3   - ASUS UEFI BIOS EZ Mode   MemTest86
BIOS	256 Mb   Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

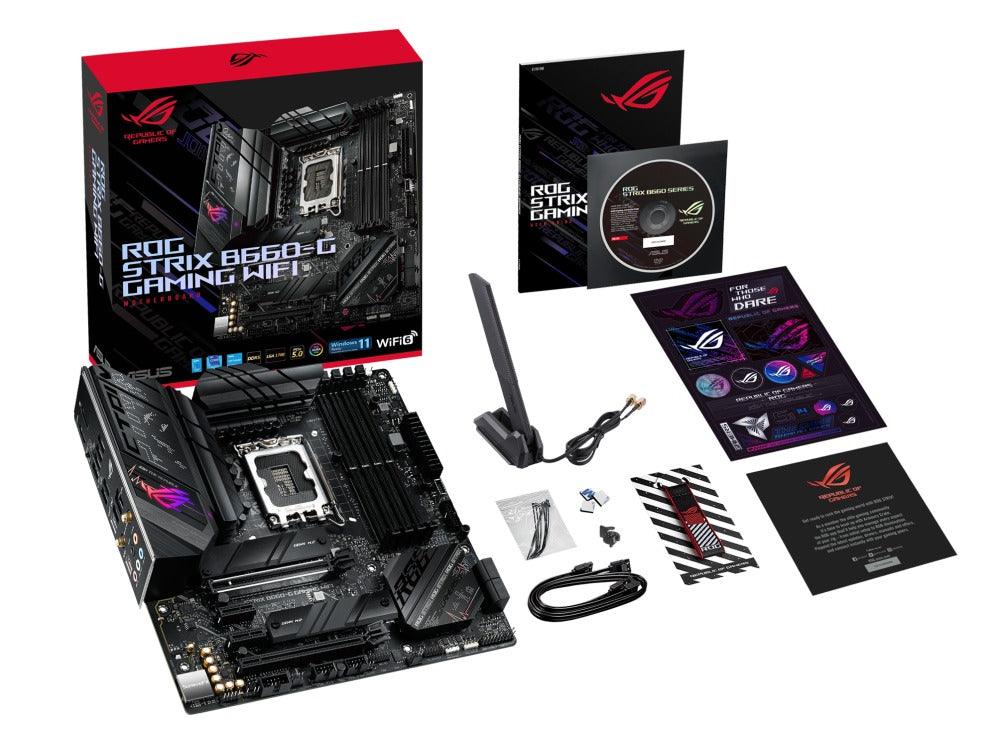

Accessories	Cables   2 x SATA 6Gb/s cables   Miscellaneous   1 x ASUS Wi-Fi moving antennas   1 x Cable ties pack   1 x M.2 Rubber Package(s)   1 x M.2 Q-Latch package(s)   1 x ROG key chain   1 x ROG Strix stickers   1 x ROG Strix thank you card   Installation Media   1 x Support DVD   Documentation   1 x User guide
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	mATX Form Factor   9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
