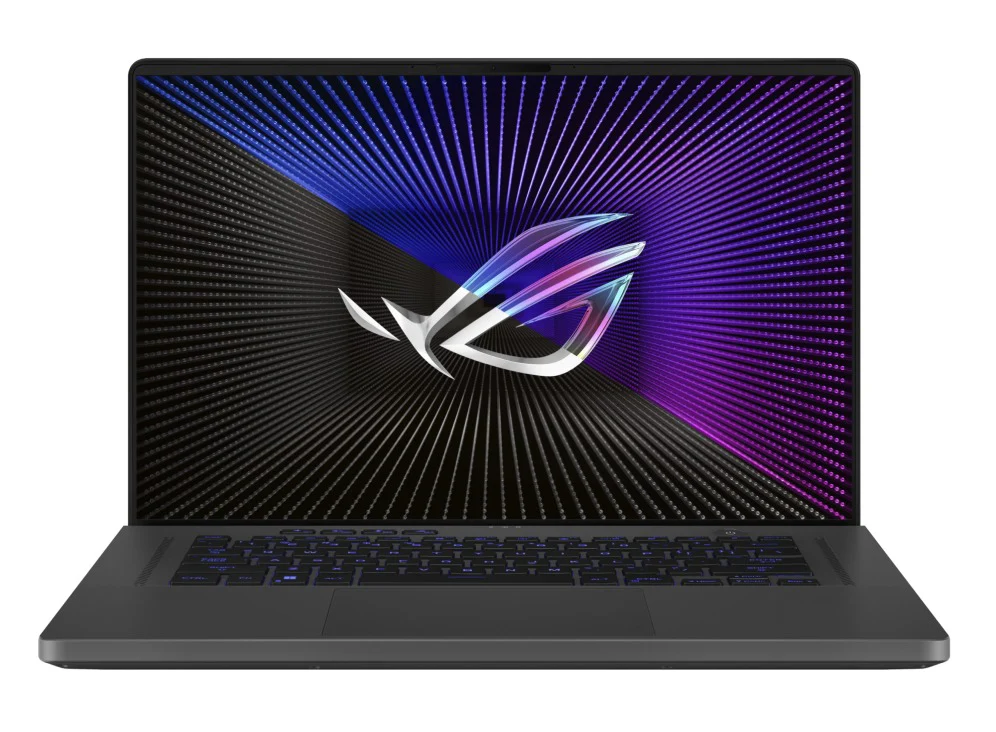

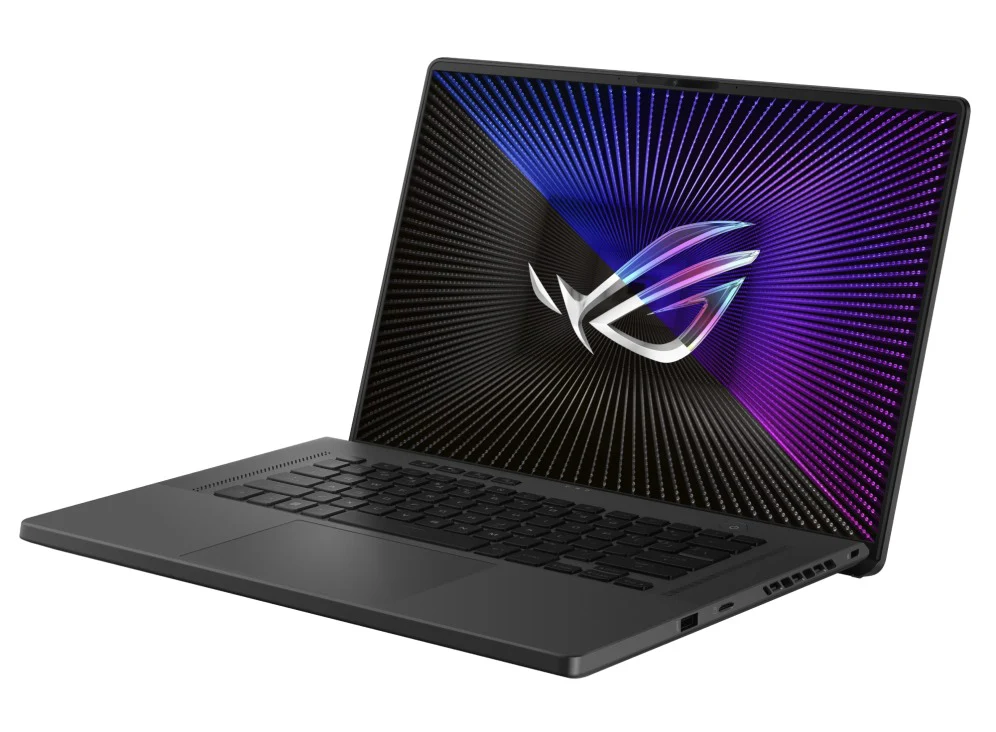

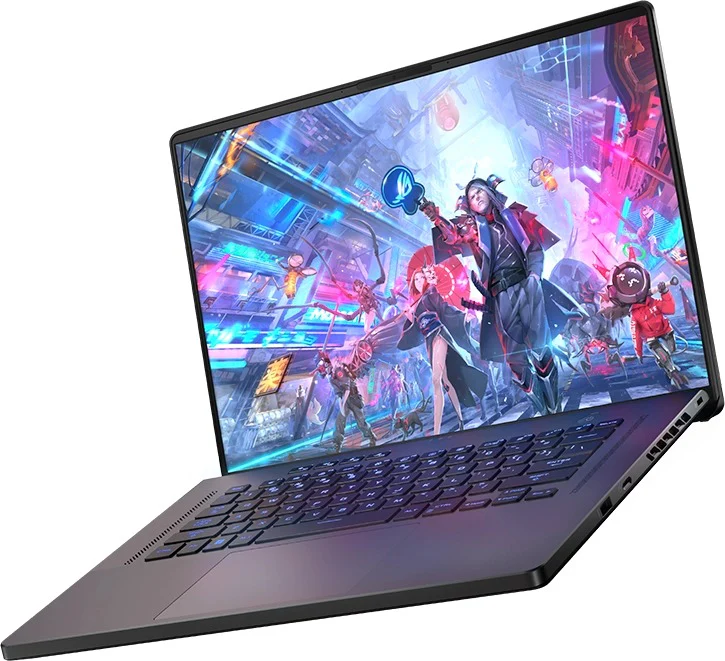

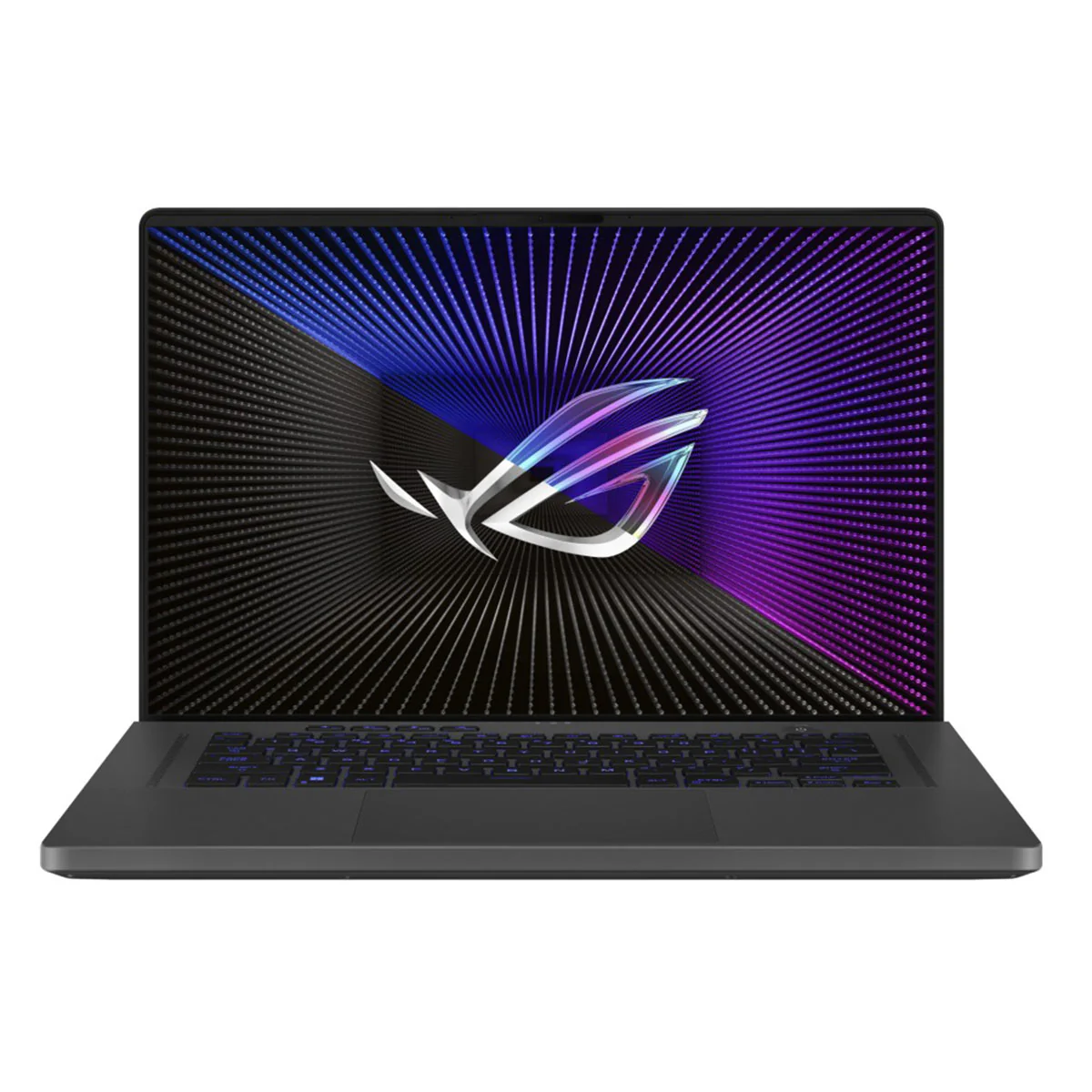

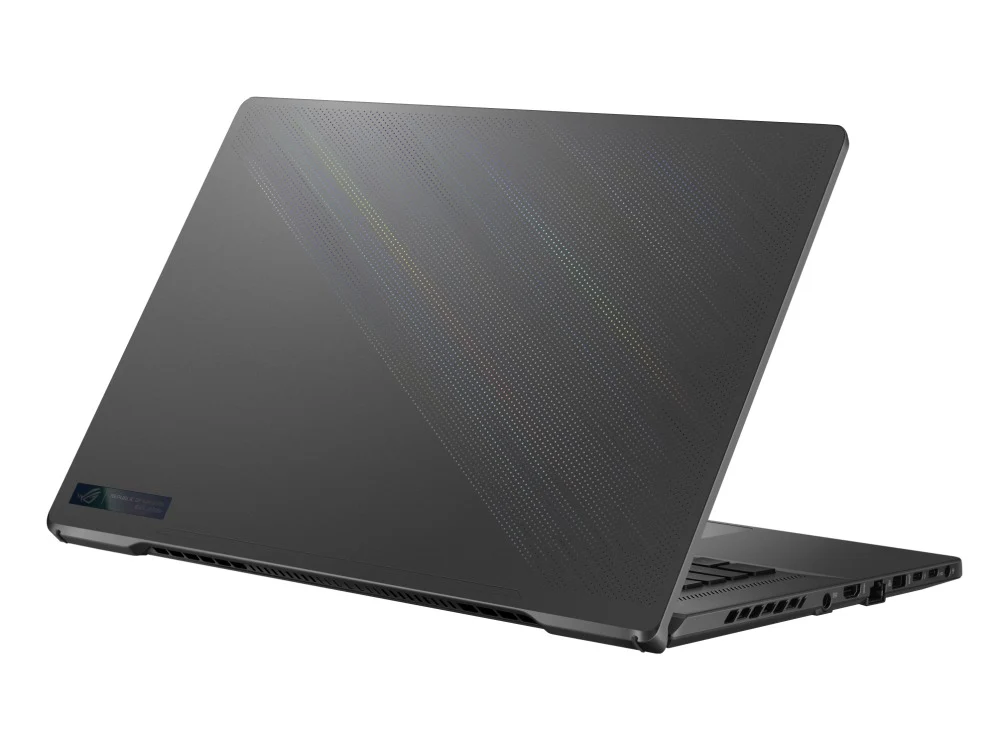

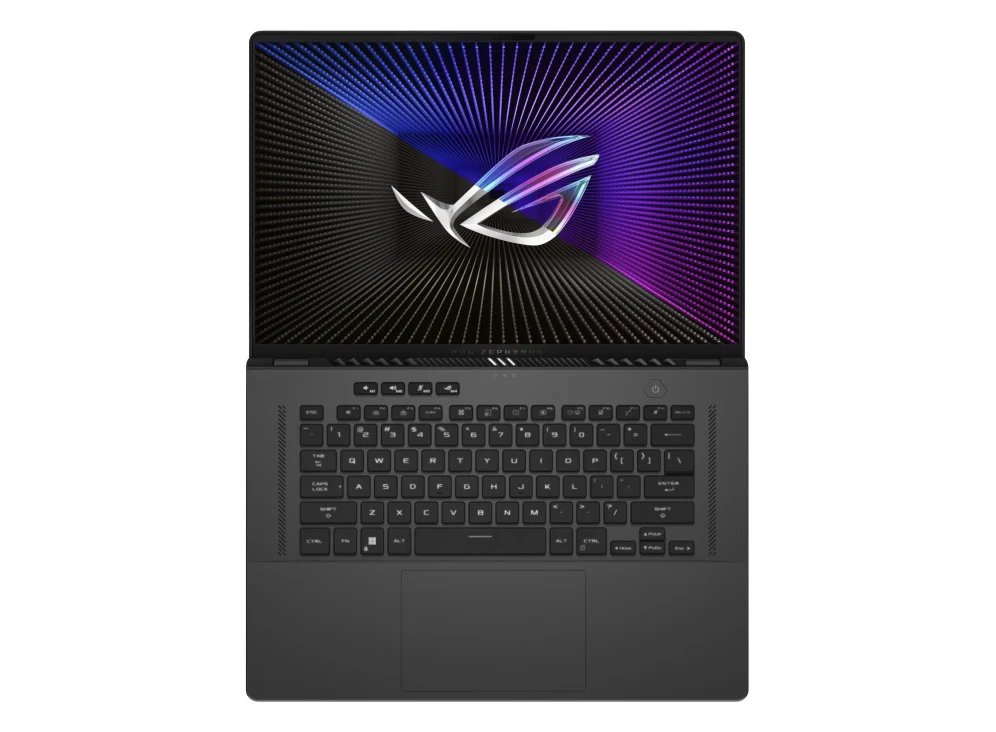

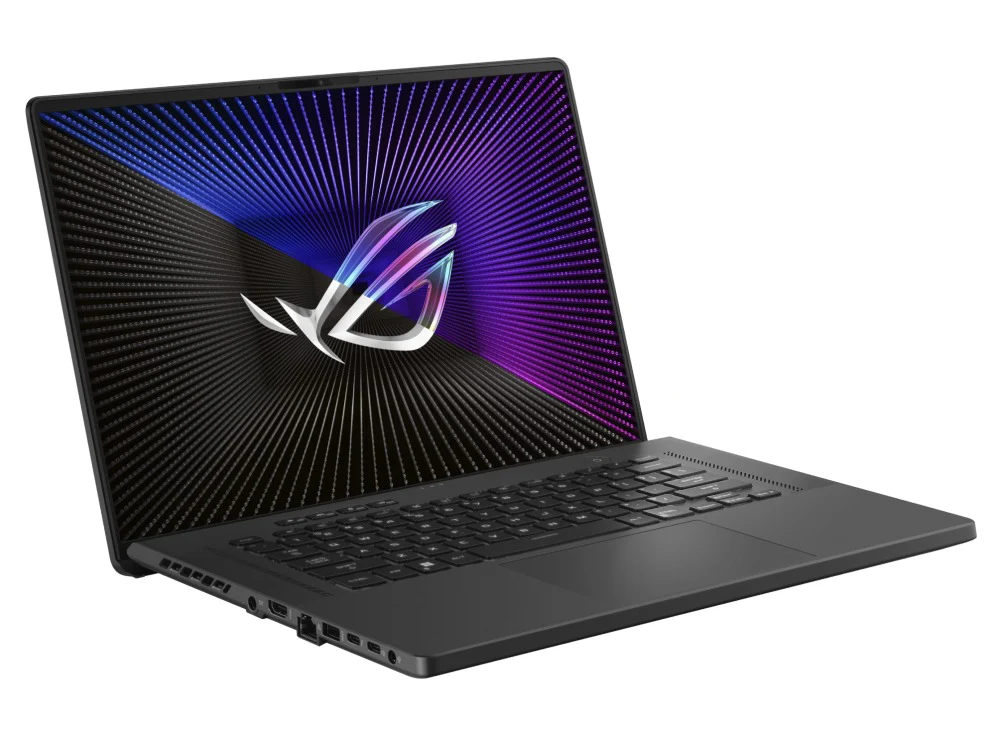

Asus ROG Zephyrus G16 GU603VV-N3089W Gaming Laptop (Eclipse Grey) | 16" FHD+ (1920X1200) 165HZ | I7-13620H | 16GB RAM | 512GB SSD | RTX 4060 | Windows 11 Home | ROG Backpack | ROG Impact Gaming Mouse

• PROCESSOR:  13th Gen Intel® Core™ i7-13620H
• DISPLAY: 16" FHD+ 16:10 (1920 x 1200, WUXGA)
• MEMORY: 16GB DDR4 on board
• STORAGE: 512GB PCIe® 4.0 NVMe™ M.2 SSD
• GPU: NVIDIA® GeForce RTX™ 4060 Laptop GPU
• OS: Windows 11 Home
• COLOR: Eclipse Grey





SPECIFICATION

Marketing Name	ROG Zephyrus G16
Color	Eclipse Gray
Dimension (W x D x H)	35.5 x 24.3 x 2.05 ~ 2.29 cm (13.98" x 9.57" x 0.81" ~ 0.90")
Weight	2.00 Kg ( lbs)
Processor	13th Gen Intel® Core™ i7-13620H Processor 2.4 GHz (24M  Cache, up to 4.9 GHz, 10 cores: 6 P-cores and 4 E-cores)
Chipset	N/A
Discrete/Optimus	MUX Switch + NVIDIA® Advanced Optimus
Graphic	NVIDIA® GeForce RTX™ 4060 Laptop GPU
Graphic Wattage	ROG Boost: 2300MHz* at 120W (2250MHz Boost Clock+50MHz OC, 100W+20W Dynamic Boost)
Graphic Memory	8GB GDDR6
IGPU	Intel® Iris Xᵉ Graphics (Intel® Iris Xᵉ Graphics in Dual Channel; Intel® UHD Graphics in Single Channel)
Panel Size	16-inch
Resolution	FHD+ 16:10 (1920 x 1200, WUXGA)
Refresh Rate	165Hz
Viewing Angle	85/85/85/85
Panel Tech	Value IPS-level
Brightness	250nits
Contrast	1000:1
SRGB %	100%
Anti glare	Anti-glare display
Adaptive-Sync technology	G-Sync
Pantone	N/A
Support Dolby Vision HDR	Yes
On board memory	16GB DDR4 on board
Total System Memory	DDR4 16GB
Memory Slot	1x SO-DIMM slot
Memory Max.	48GB
System Storage Installed	512GB PCIe® 4.0 NVMe™ M.2 SSD
M.2 slots support either SATA or NVMe	2
M.2 SSD Support List	Performance PCIe G4x4  SSD M2 2280 P4X4 512G  SSD M2 2280 P4X4 1TB  SSD M2 2280 P4X4 2TB    Value PCIe G4x4  SSD M2 2280 P4X4 512G  SSD M2 2280 P4X4 1TB  SSD M2 2280 P4X4 2TB
Expansion Slot (includes used)	1x DDR4 SO-DIMM slot 2x PCIe
LAN	10/100/1000 Mbps
Wi-Fi/Bluetooth	Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)
I/O Ports	1x RJ45 LAN port 1x Thunderbolt™ 4 support DisplayPort™ / power delivery 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery 2x USB 3.2 Gen 2 Type-A 1x card reader (microSD) (UHS-II)
Display output	1x HDMI 2.1 FRL
Audio	1x 3.5mm Combo Audio Jack
Webcam	720P HD IR Camera for Windows Hello
Mic	Built-in array microphone
Keyboard Type	Backlit Chiclet Keyboard 1-Zone RGB
NumberPad	N/A
Aura Sync	Yes
Speakers	2x 2W Tweeter 2x 2W dual-force woofer with Smart Amp Technology
Audio Tech	AI noise-canceling technology Dolby Atmos Hi-Res certification Smart Amp Technology
Operating System	Windows 11 Home
Antivirus	McAfee® 30 days free trial
Xbox Game Pass	Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Security	BIOS Administrator Password and User Password Protection Kensington Security Slot™ Trusted Platform Module (Firmware TPM)
Battery	90WHrs, 4S1P, 4-cell Li-ion
Fast charging	Recharge from 0-50% in 30 minutes
Power	ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal
Bundled Peripherals	ROG backpack
Additional Accessories	ROG Impact Gaming Mouse
Ecolabels & Compliances	ENERGY STAR®
Reparability Index (for FR)	8.5
