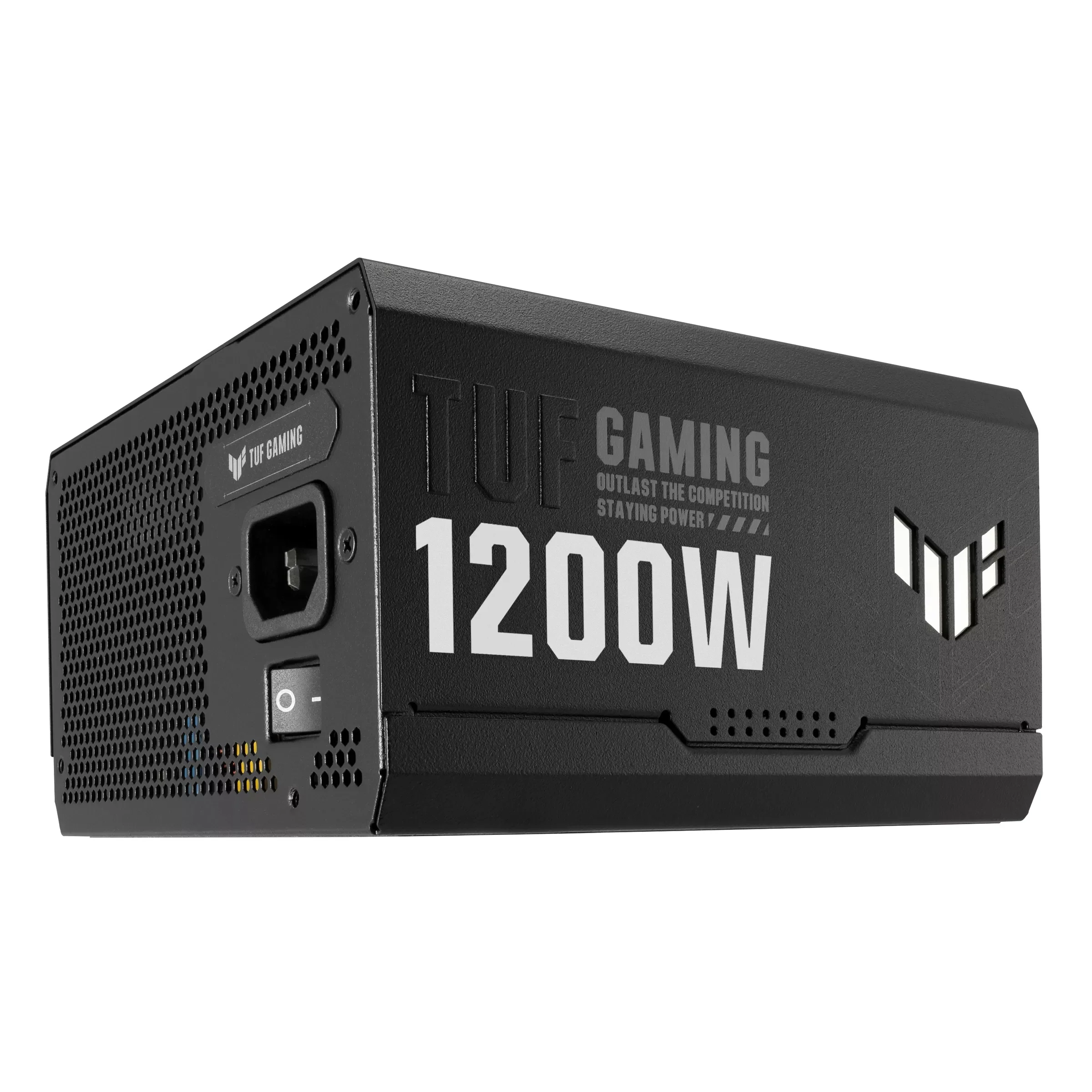

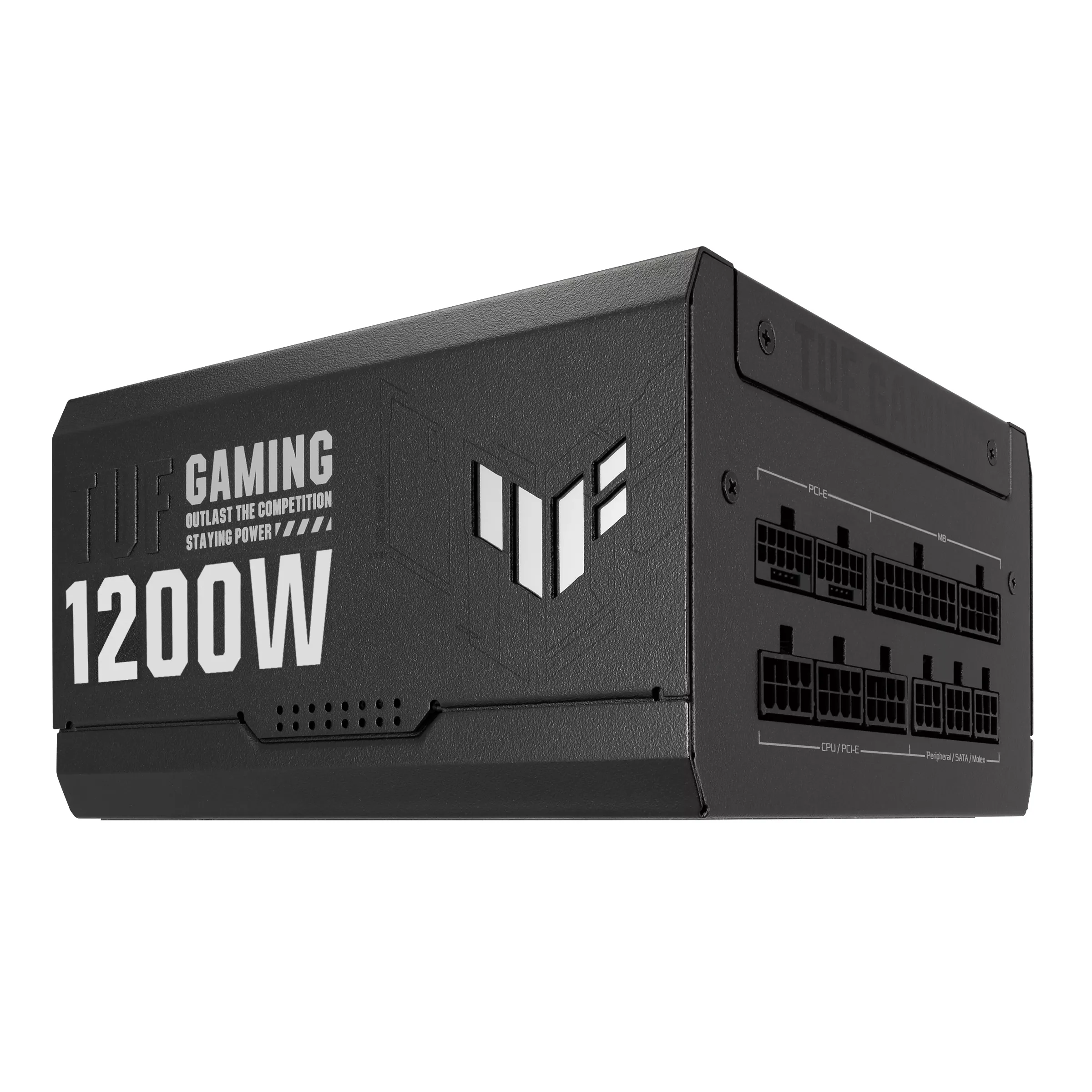

Asus TUF 1200W Gold Gaming Power Supply
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- A protective PCB coating protects against moisture, dust, and extreme temperatures.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Fully modular etched cables keep your rig neat and tidy.
- 10-year warranty included.
TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1200W Gold empowers you to build in confidence.
Dual Ball Fan Bearings
2x longer lifespan

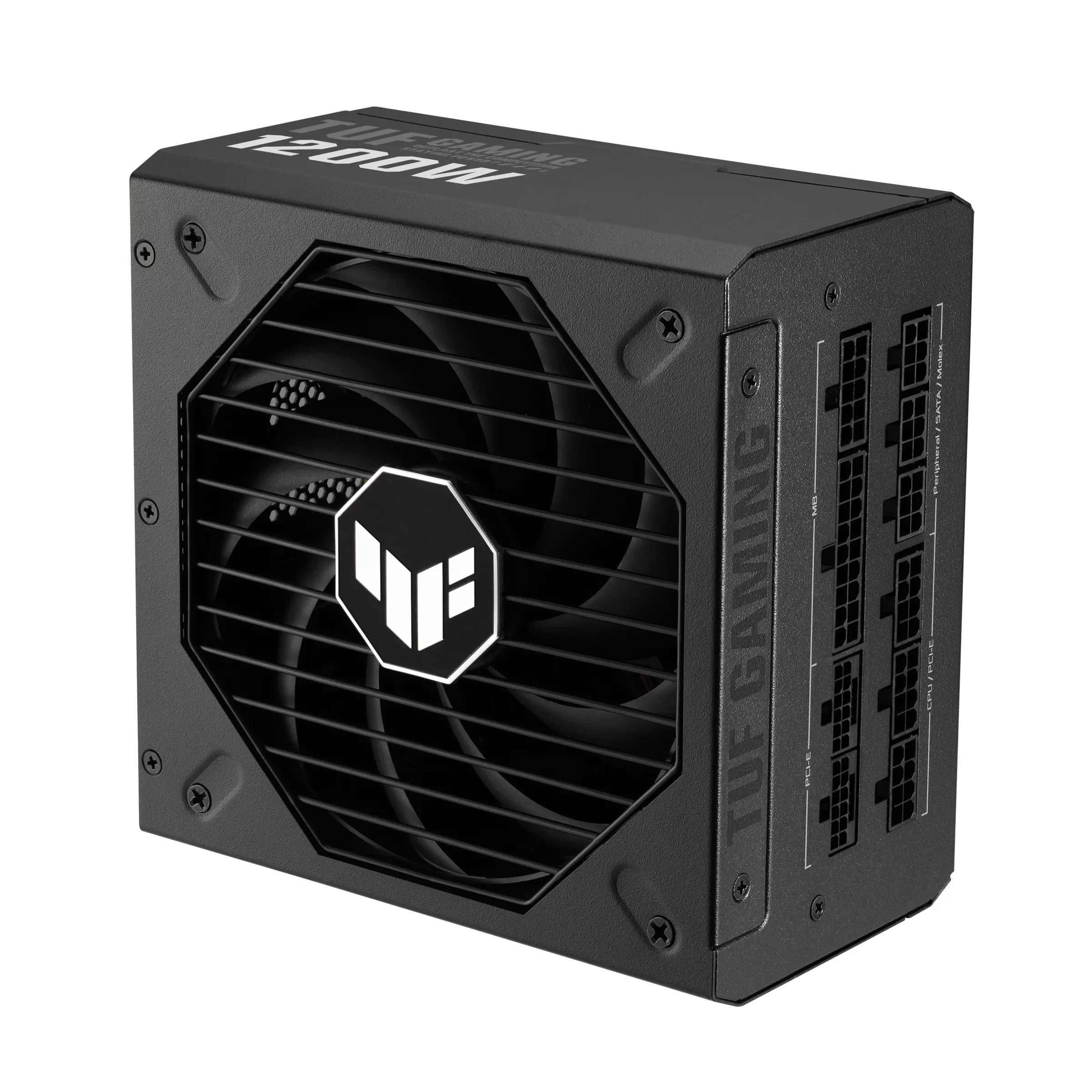

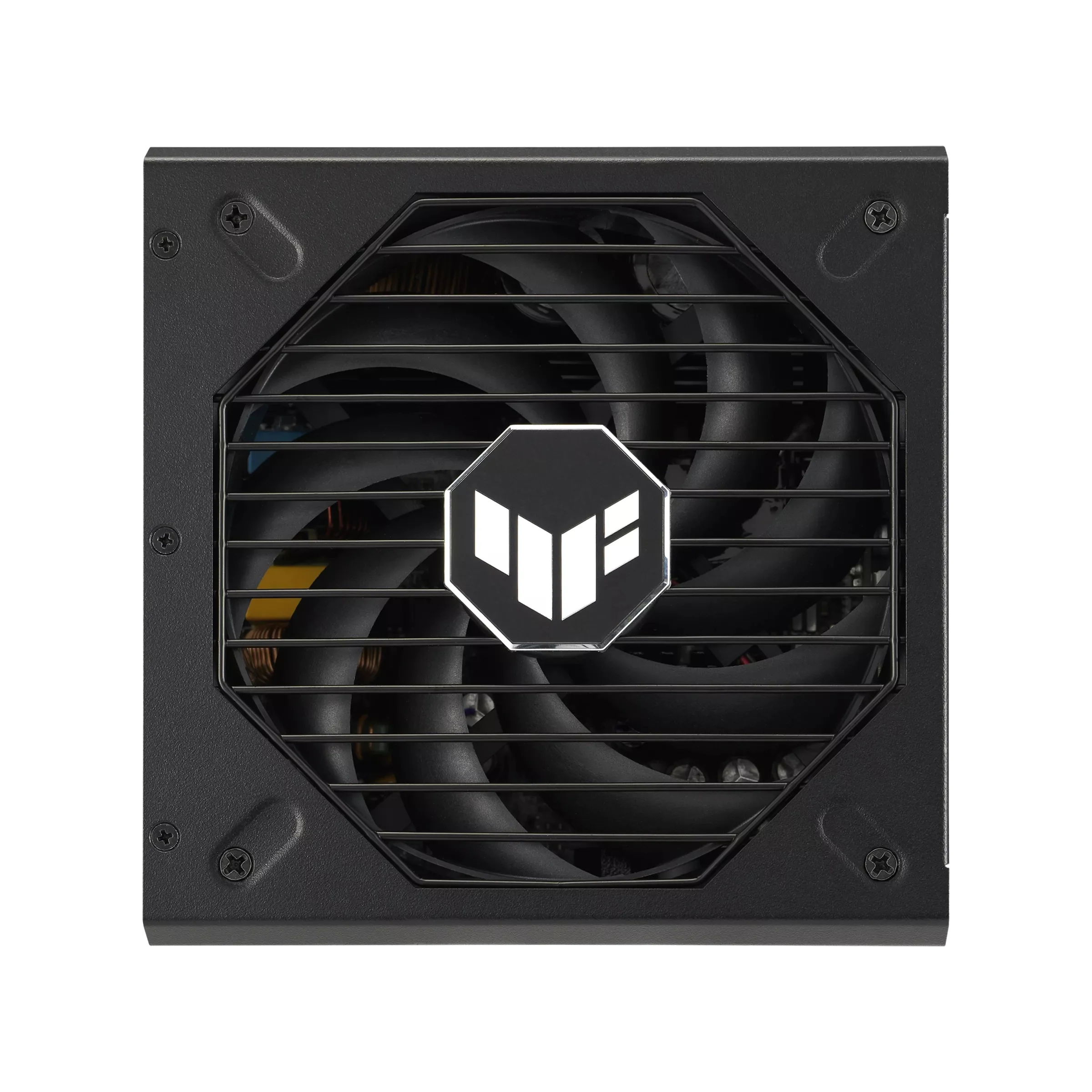

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating
All wrapped up
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
80 Plus Gold Certification
Heart of gold
The TUF Gaming 1200W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
| Model | TUF Gaming 1200W Gold |
| Intel Form Factor | ATX12V |
| ATX 3.0 | Yes |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |

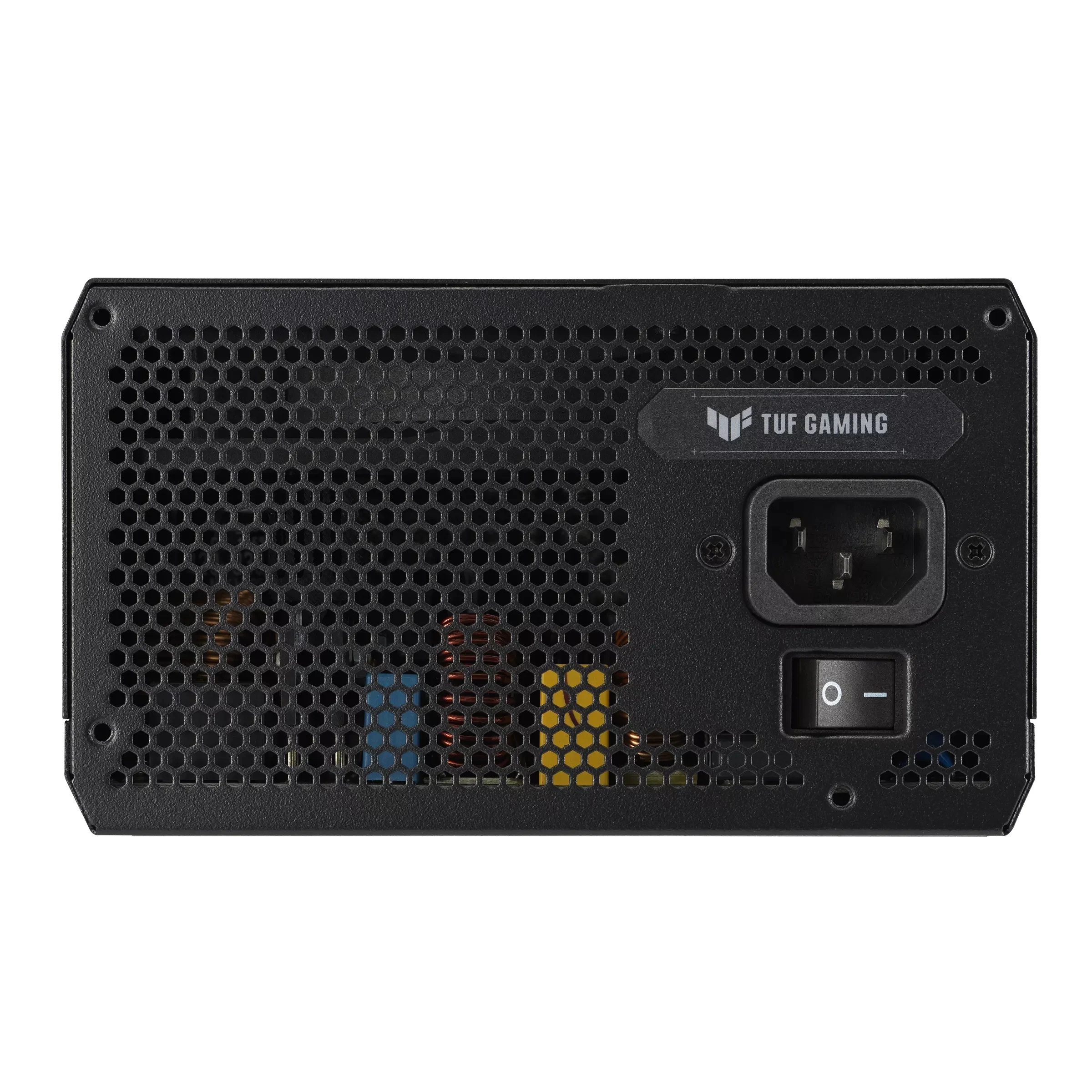

| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A25A99A 0.8A 3A |
| Combined Load | 130W 130W 1188W 9.6W 15W |
| Total Output | 1200W |

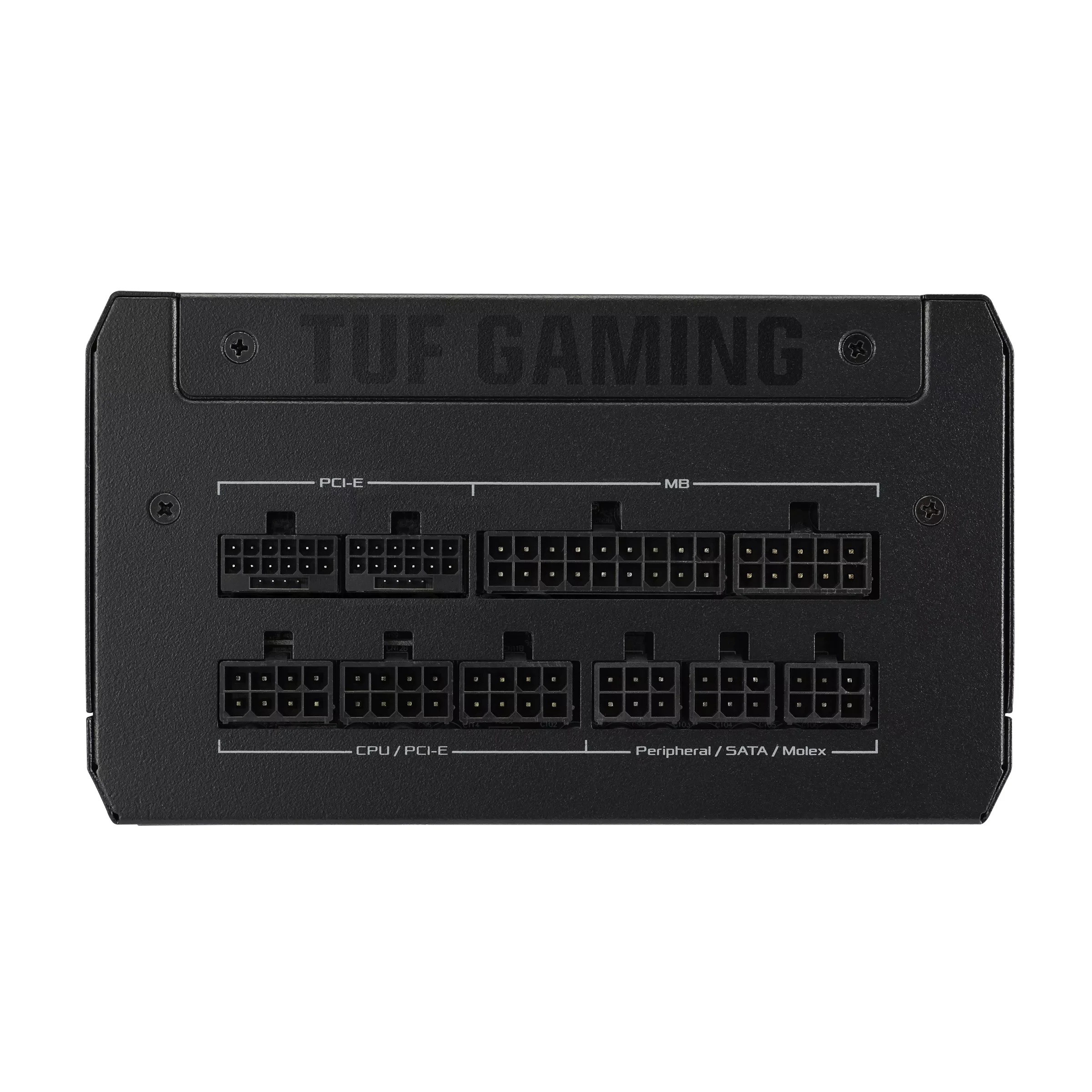

| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 2 PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 2 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) PCI-E 1-to-2 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120 mm) SATA 1-to-3 Cable x 1 (400+120+120 mm) Peripheral 1-to-4 x 1 (400+150+150+150 mm) TUF Gaming Cable tie x 3 User Manual x 1 |
| Weight | 2.66kg (single PSU) |
