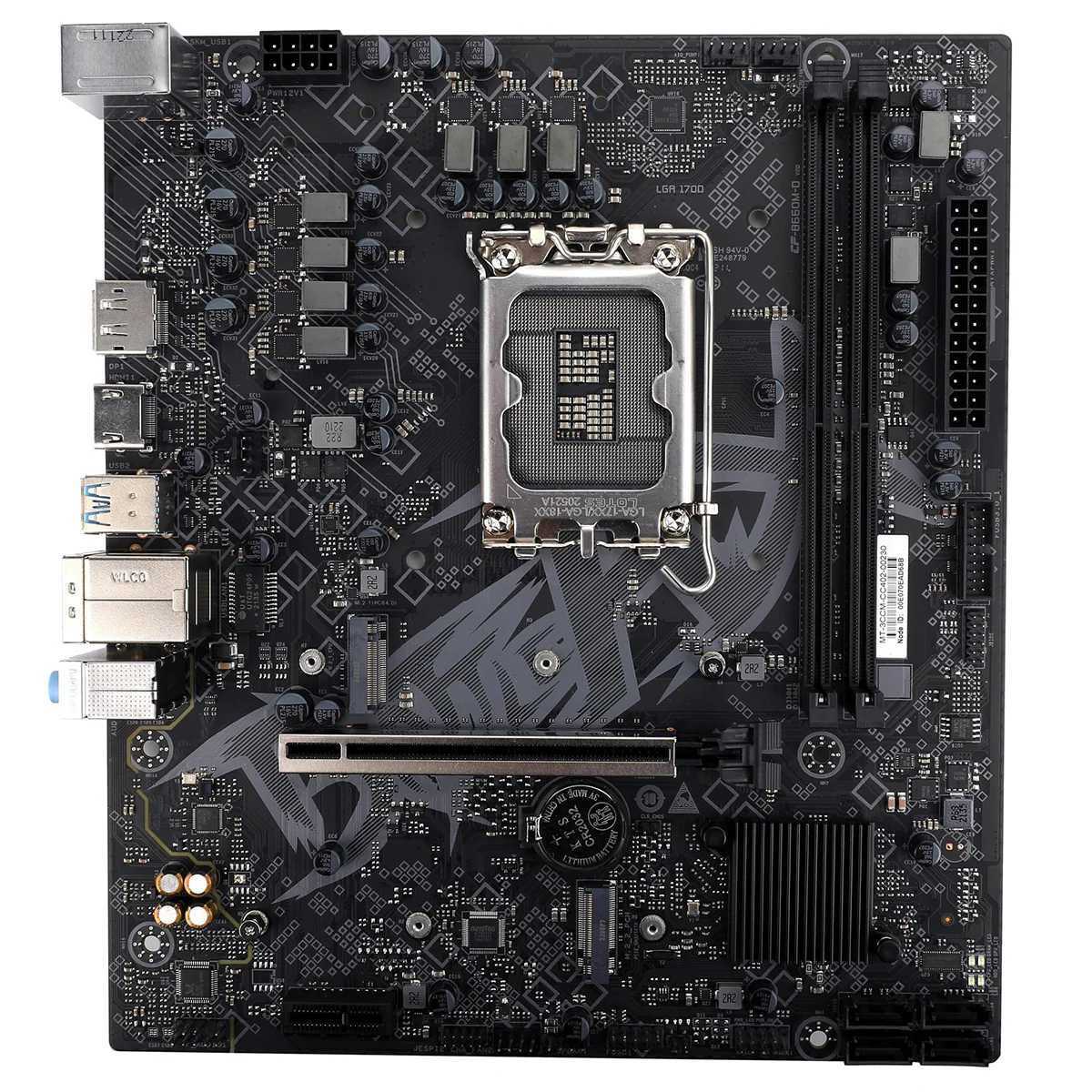

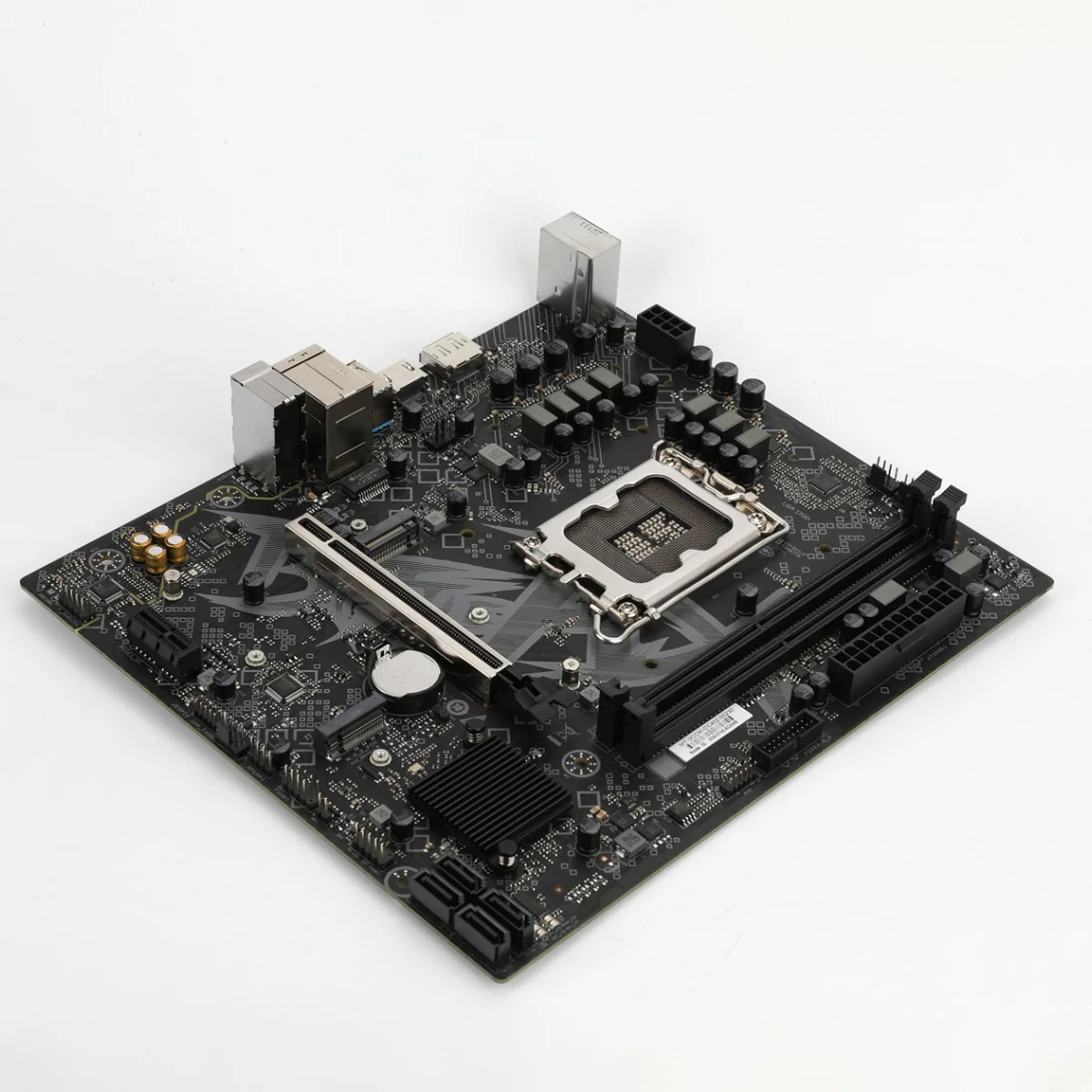

Colorful Battle-AX B660M-D V20 Motherboard

Feature Highlights:

• Supports 12th Gen Intel® Core Processors (Socket 1700)
• 2xDIMMs,supports Dual Channel DDR4  memory
• *memory overclocking also depends on the matching CPU and memory itself!
• 4xSATA3.0 ports
• 2xM.2 SSD slots
• 1000M LAN
• 6-channel audio chipset
• DP+HDMI ports
• 4*USB2.0 ports (2 rear, 1 header)
• 6*USB3.2 Gen1 ports (4 rear, 1 header)

SPECIFICATION

Model	BATTLE-AX B660M-D V20
Product Series	BATTLE-AX series
Chipset	Intel B660
Processor	Supports 14th/13th/12th Gen Intel® Core™ Processors (Socket 1700)
Memory	2 DIMM slots，support dual channel DDR4 memory
Graphics Support	1xPCIe 4.0/3.0x16 slot
SATA Ports	4xSATA 6Gb/s ports, Supports RAID0, 1, 5, 10
Board I/O	I/O: 1xPS/2 port, 1xHDMI display port, 1xDP display port, 2xUSB 2.0 ports, 4xUSB 3.2 Gen 1 ports, three 6-channel audio interface, RJ45 LAN interface; Onboard: 1xUSB2.0 headers, 1xUSB 3.2 Gen 1 headers, 1x CPU fan headers, 2x system fan headers
Expansion Slots	1xPCIe 3.0x1 slot, 2xM.2 slots
BIOS	128M UEFI
Hardware Monitor	CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN	1000M LAN
Audio	6-Channel High Definition audio CODEC
Configuration	235 x 207mm，M-ATX
