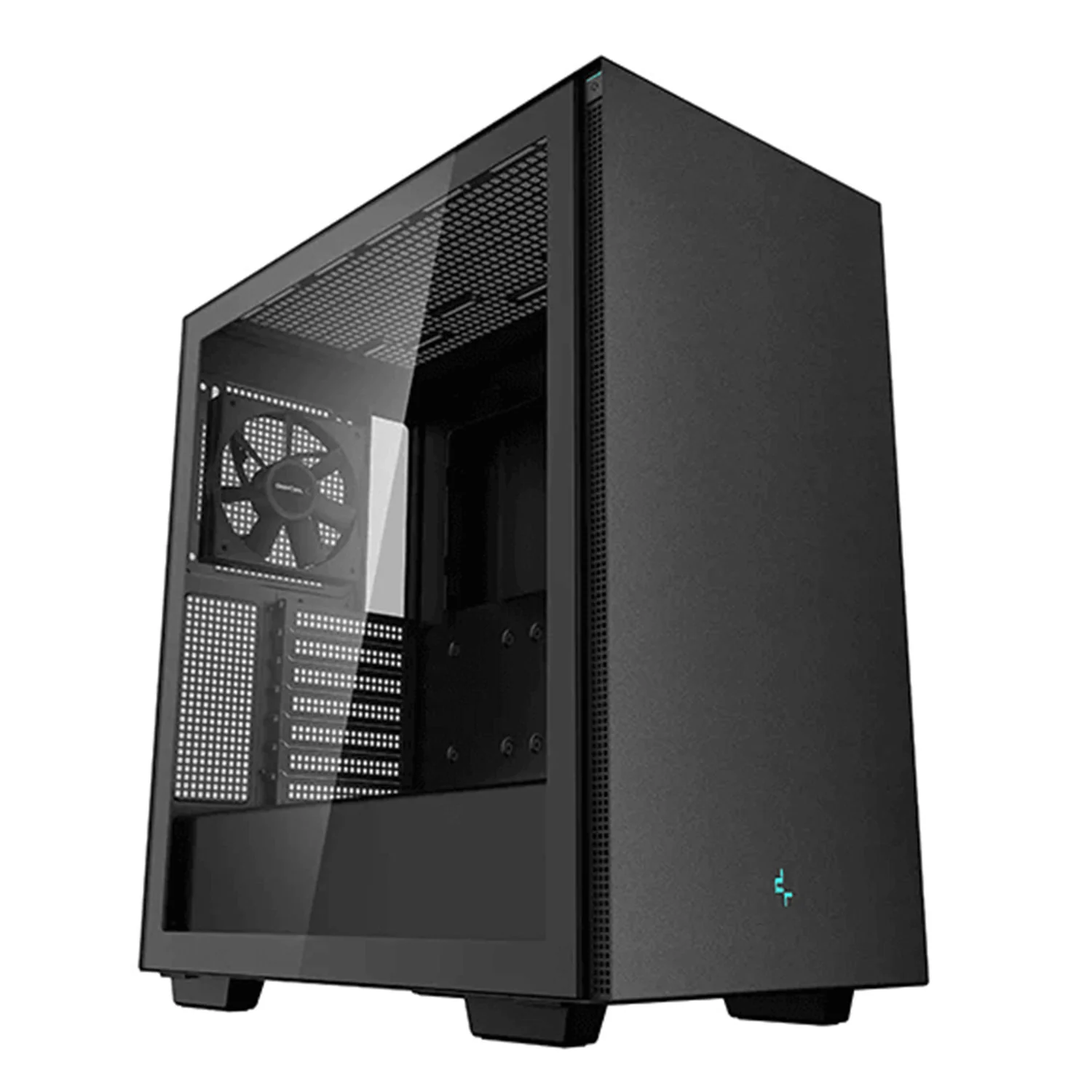

DEEPCOOL CH510 Mid-Tower ATX Case (R-CH510-BKNNE1-G-1)
CH510
The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
A COMPLETE BUILD EXPERIENCE
The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
EXPAND YOUR COOLING
Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
Technical Spec
| Product Dimensions | 435×230×471mm(L×W×H) |
| Net Weight | 7.2Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×2、Audio×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Rear: 1×120mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2 （maximum length: 170mm） |
| EAN Code | 6933412715009 |
| PN Code | R-CH510-BKNNE1-G-1 |
