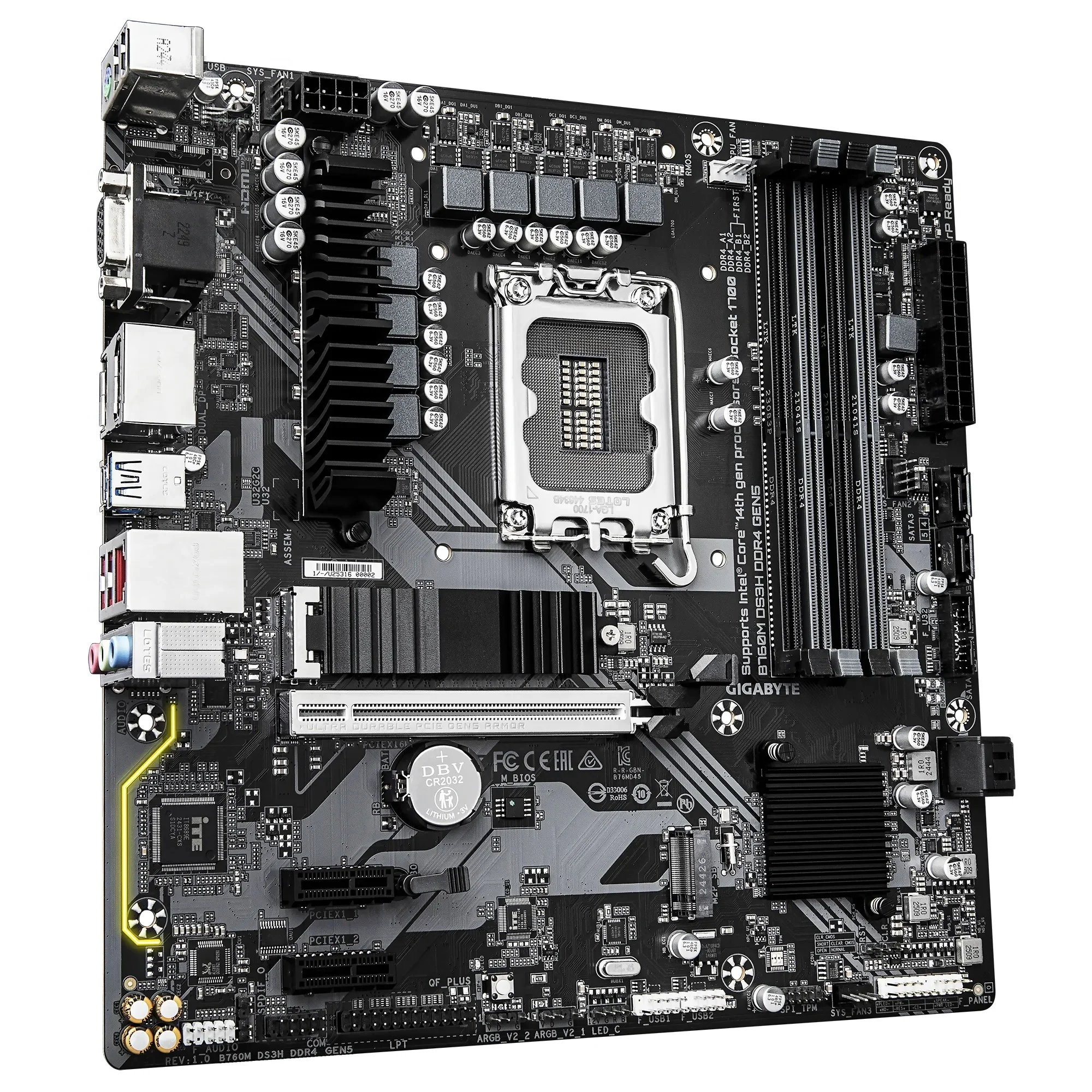

Gigabyte B760M DS3H DDR4 Gen5 UD Motherboard

Key Features

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel® Core™ 14th/ 13th /12th processors
• EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
• PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
• Dual Channel DDR4 : 4*DIMMs XMP Memory Module Support
• Fast Networks : 2.5 GbE LAN
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications:

CPU	LGA1700 socket, supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset	Intel® B760 Express Chipset
Memory	4 x DDR4 DIMM, up to 128 GB, supports 3200/3000/2933/2666/2400/2133 MT/s, ECC/non-ECC, XMP
Onboard Graphics	D-Sub (1920x1200@60Hz), HDMI (4096x2160@60Hz), 2 x DisplayPort (4096x2304@60Hz), up to quad-display
Audio	Realtek® Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5/1Gbps/100Mbps)
Expansion Slots	1 x PCIe x16 (PCIe 5.0, CPU), 2 x PCIe x1 (PCIe 3.0, chipset)
Storage	2 x M.2 (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s, RAID 0/1/5/10
USB Ports	1 x USB Type-C® (USB 3.2 Gen 2), 5 x USB 3.2 Gen 1, 6 x USB 2.0/1.1
Internal I/O	24-pin + 8-pin power, 3 fan headers, 2 ARGB, 1 RGB, TPM, serial, parallel, audio, USB, reset, CMOS, Q-Flash Plus
Back Panel	2 x USB 2.0, PS/2, D-Sub, HDMI, 2 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB-C, LAN, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
Monitoring	Voltage, Temperature, Fan speed, Water flow, Fan fail warning, Speed control
BIOS	128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, ACPI 5.0, etc.
Unique Features	GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton® Internet Security (OEM)
OS Support	Windows 11/10 64-bit
Form Factor	Micro ATX, 24.4cm x 24.4cm
