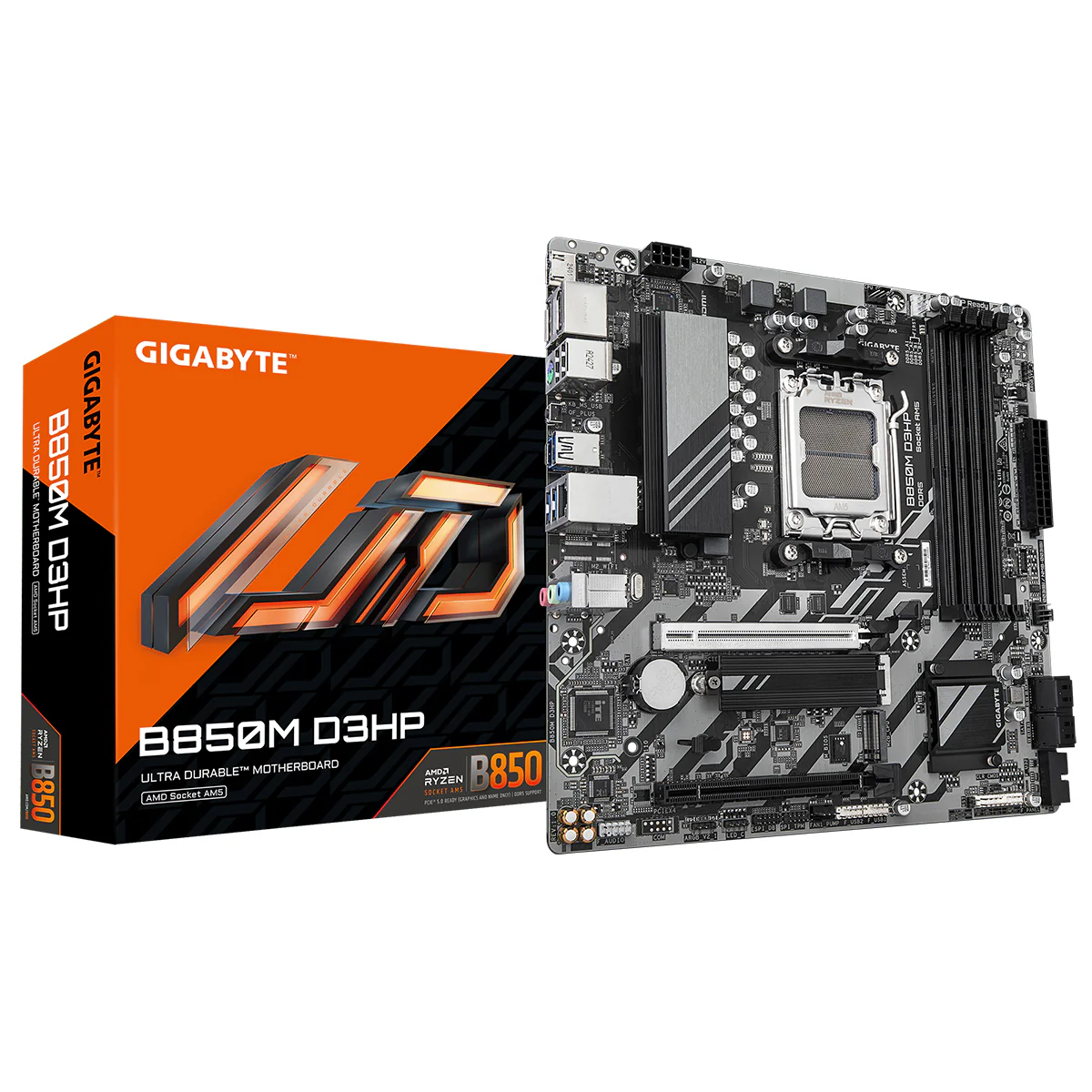

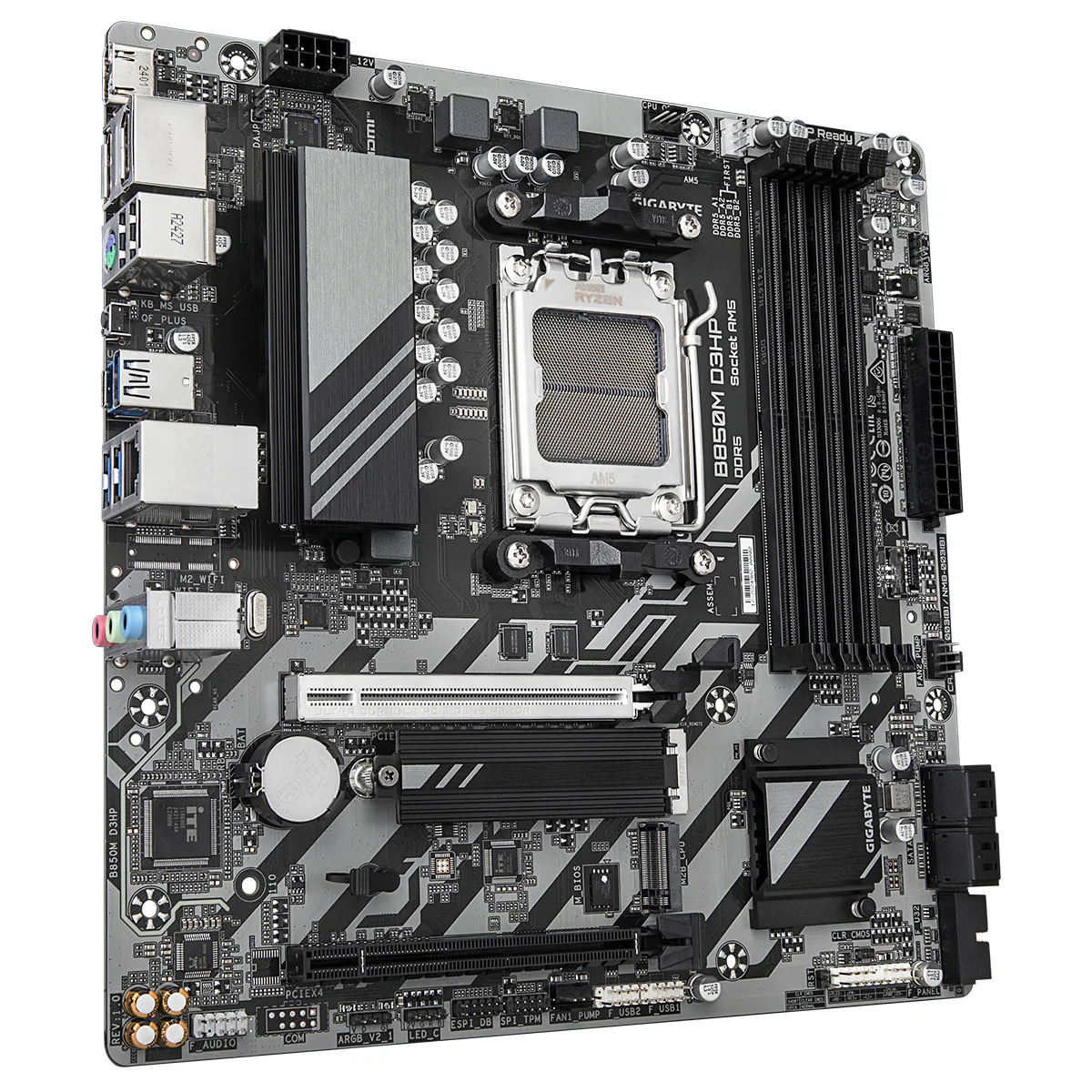

Gigabyte B850M D3HP DDR5 AMD Ultra Durable Motherboard
Specifications:
| CPU Support | AMD Ryzenā¢ 9000/8000/7000 Series (Socket AM5) |
| Chipset | AMD B850 |
| Memory | DDR5 8200(OC) to 4400 MT/s 4 x DIMM, up to 256 GB Dual channel, non-ECC unbuffered Supports AMD EXPOā¢ and XMP |
| Graphics Outputs | 1 x HDMI 2.1 (4096x2160@60Hz) 2 x DisplayPort 1.4 (3840x2160@144Hz) Triple display supported |
| Audio | RealtekĀ® Audio CODEC, up to 7.1-channel HD Audio |
| LAN | RealtekĀ® GbE LAN (1 Gbps) |
| Expansion Slots | 1 x PCIe x16 (CPU-based): - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000-Phoenix 1: PCIe 4.0 x8 - Ryzen 8000-Phoenix 2: PCIe 4.0 x4 1 x PCIe x16 (chipset): PCIe 3.0 x4 |
| Storage | 2 x M.2: - M2A_CPU: PCIe 5.0/4.0 x4 - M2B_CPU: PCIe 4.0 x4/x2 4 x SATA 6Gb/s NVMe RAID 0/1/5/10 (RAID 5 for Ryzen 9000 only) SATA RAID 0/1/10 |
| USB Ports | Back Panel: - 1 x USB-CĀ® (3.2 Gen 1) - 3 x USB 3.2 Gen 1 - 2 x USB 2.0 - 1 x USB 2.0/1.1 Internal: - 1 x USB-CĀ® (3.2 Gen 1) - 2 x USB 3.2 Gen 1 - 4 x USB 2.0 |
| Internal Connectors | 1 x 24-pin ATX power 1 x 8-pin ATX 12V 2 x CPU/system fan headers 2 x RGB LED headers 2 x M.2 Socket 3 4 x SATA 6Gb/s 1 x USB-C 3.2 Gen 1 header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers TPM, Reset, Clear CMOS jumpers |

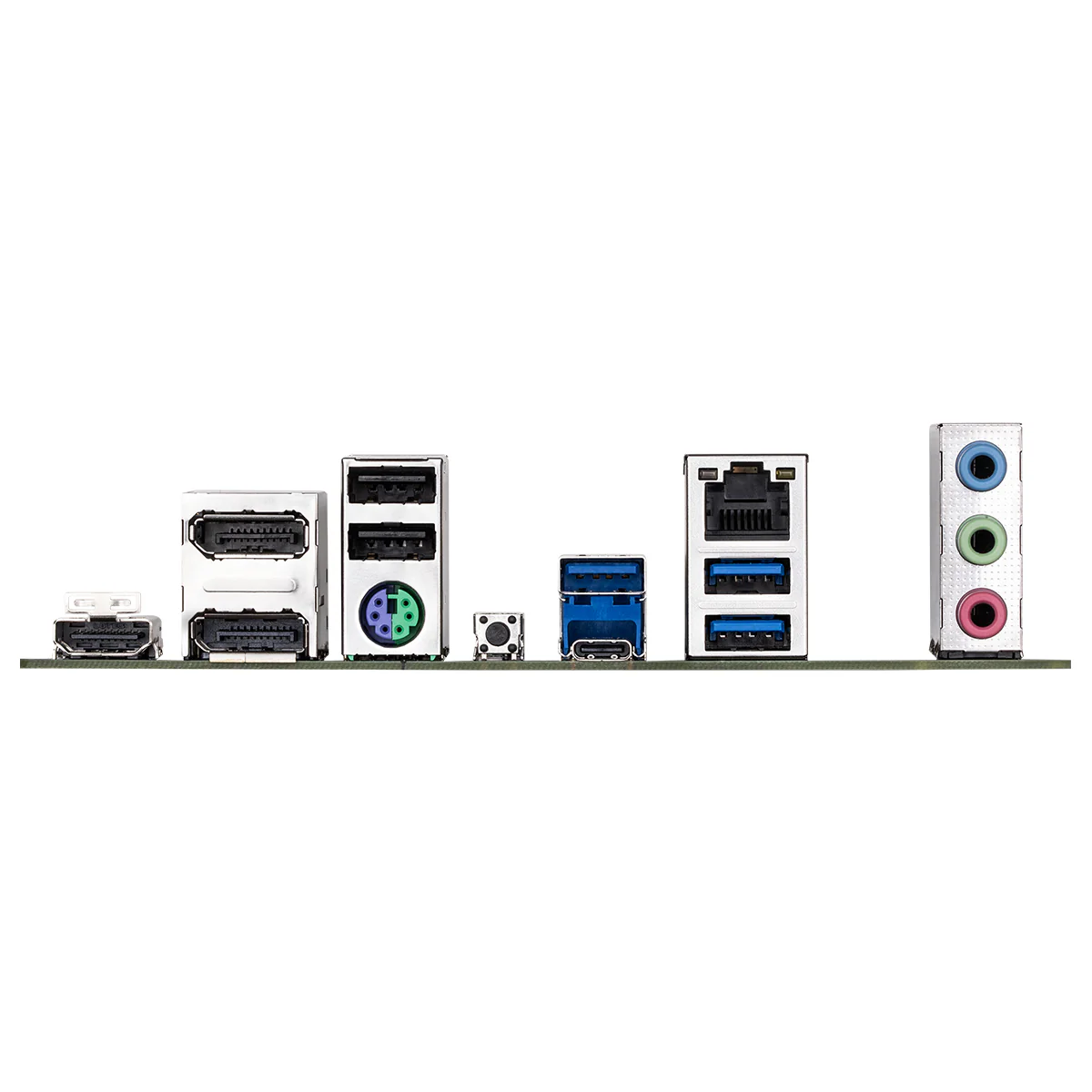

| Back Panel I/O | 1 x HDMI, 2 x DisplayPort 1 x PS/2 combo 1 x Q-Flash Plus button 1 x USB-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0 1 x RJ-45 3 x audio jacks |
| BIOS | AMI UEFI, 256 Mbit, Q-Flash, Q-Flash Plus, Smart Backup |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
| Operating System | Windows 11 / 10 64-bit |
| Software | Norton Security (OEM), LAN bandwidth software |
| Unique Features | GIGABYTE Control Center, RGB Fusion, Smart Fan |
Ā
Ā
Ā
Ā
$143.93
Gigabyte B850M D3HP DDR5 AMD Ultra Durable Motherboardā
$143.93
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specifications:
| CPU Support | AMD Ryzenā¢ 9000/8000/7000 Series (Socket AM5) |
| Chipset | AMD B850 |
| Memory | DDR5 8200(OC) to 4400 MT/s 4 x DIMM, up to 256 GB Dual channel, non-ECC unbuffered Supports AMD EXPOā¢ and XMP |
| Graphics Outputs | 1 x HDMI 2.1 (4096x2160@60Hz) 2 x DisplayPort 1.4 (3840x2160@144Hz) Triple display supported |
| Audio | RealtekĀ® Audio CODEC, up to 7.1-channel HD Audio |
| LAN | RealtekĀ® GbE LAN (1 Gbps) |
| Expansion Slots | 1 x PCIe x16 (CPU-based): - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000-Phoenix 1: PCIe 4.0 x8 - Ryzen 8000-Phoenix 2: PCIe 4.0 x4 1 x PCIe x16 (chipset): PCIe 3.0 x4 |
| Storage | 2 x M.2: - M2A_CPU: PCIe 5.0/4.0 x4 - M2B_CPU: PCIe 4.0 x4/x2 4 x SATA 6Gb/s NVMe RAID 0/1/5/10 (RAID 5 for Ryzen 9000 only) SATA RAID 0/1/10 |
| USB Ports | Back Panel: - 1 x USB-CĀ® (3.2 Gen 1) - 3 x USB 3.2 Gen 1 - 2 x USB 2.0 - 1 x USB 2.0/1.1 Internal: - 1 x USB-CĀ® (3.2 Gen 1) - 2 x USB 3.2 Gen 1 - 4 x USB 2.0 |
| Internal Connectors | 1 x 24-pin ATX power 1 x 8-pin ATX 12V 2 x CPU/system fan headers 2 x RGB LED headers 2 x M.2 Socket 3 4 x SATA 6Gb/s 1 x USB-C 3.2 Gen 1 header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers TPM, Reset, Clear CMOS jumpers |
| Back Panel I/O | 1 x HDMI, 2 x DisplayPort 1 x PS/2 combo 1 x Q-Flash Plus button 1 x USB-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0 1 x RJ-45 3 x audio jacks |
| BIOS | AMI UEFI, 256 Mbit, Q-Flash, Q-Flash Plus, Smart Backup |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
| Operating System | Windows 11 / 10 64-bit |
| Software | Norton Security (OEM), LAN bandwidth software |
| Unique Features | GIGABYTE Control Center, RGB Fusion, Smart Fan |
