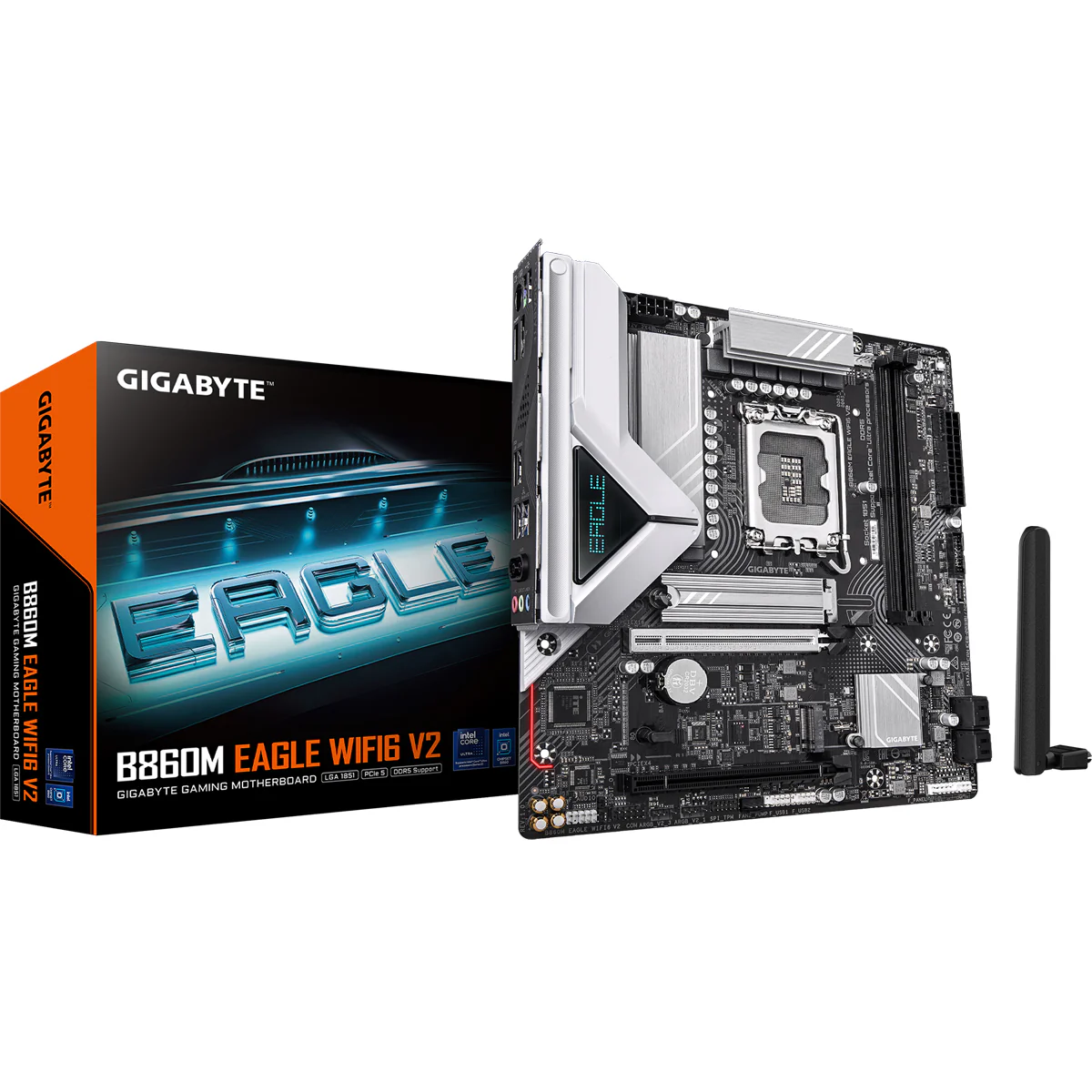

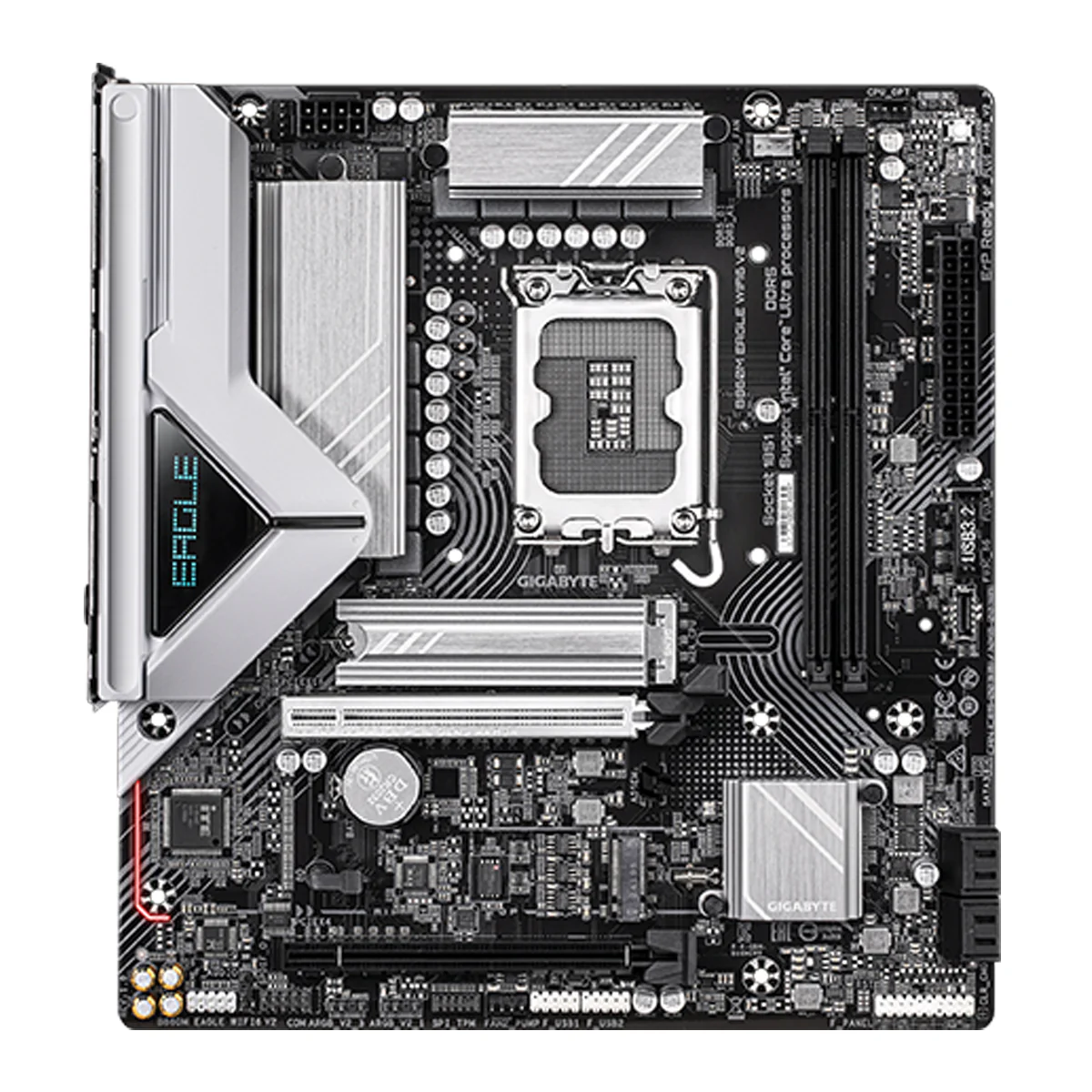

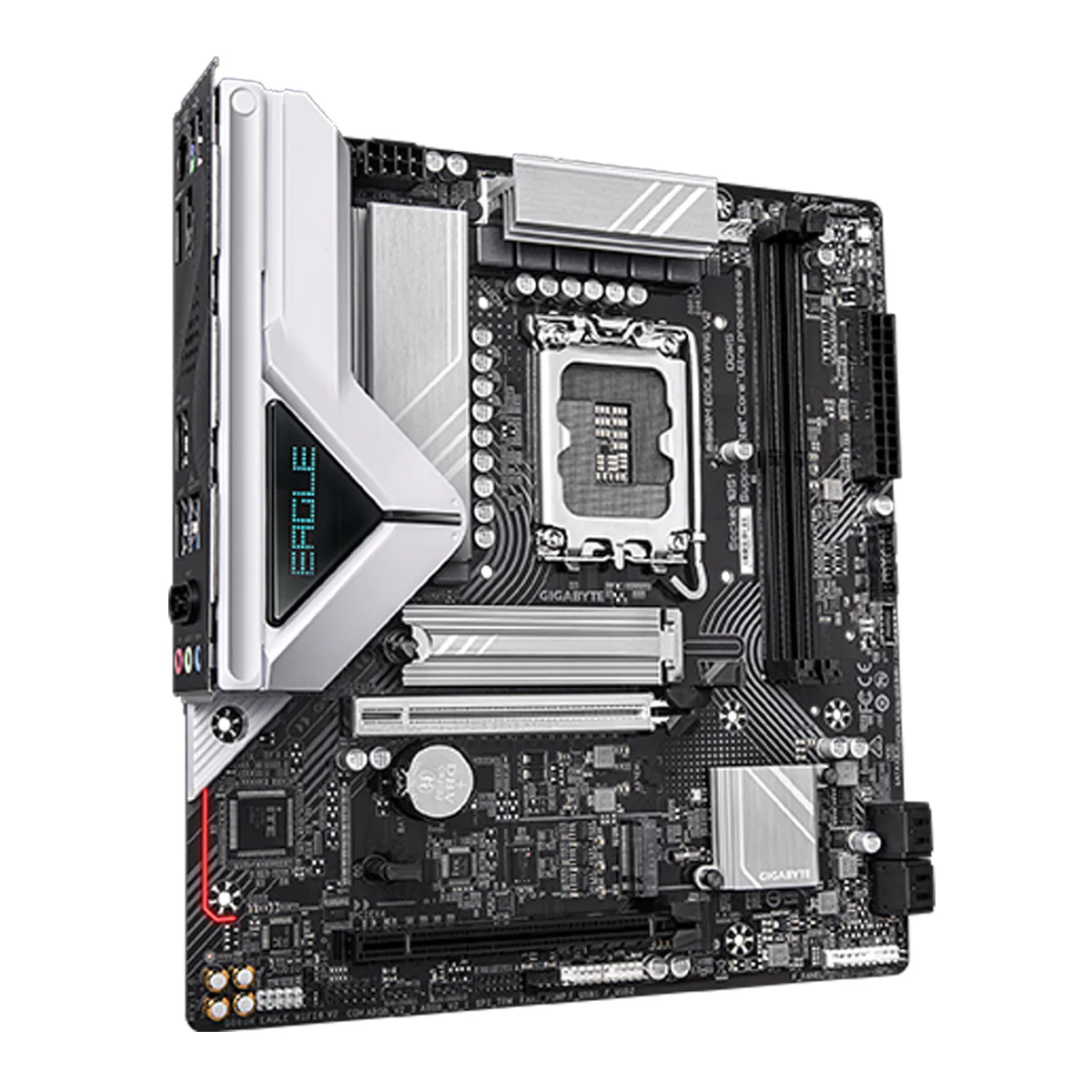

Gigabyte B860M Eagle WiFi6 V2 DDR5 Intel Gaming Motherboard

Gigabyte B860M Eagle WiFi6 V2 DDR5 Intel Gaming Motherboard

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital 6+1+2 phases VRM solution
• Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN & Wi-Fi 6
• Extended Connectivity : HDMI, DisplayPort


GIGABYTE B860M EAGLE WIFI6 V2 Specifications
CPU Support	LGA1851 socket, Intel® Core™ Ultra Processors (check GIGABYTE CPU support list)
Chipset	Intel® B860 Express
Memory	2 x DDR5 DIMM slots, up to 128 GB, Dual Channel, ECC/Non-ECC, Supports 5600–9066 MT/s (OC), Supports XMP
Onboard Graphics	1 x HDMI (max 4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (max 3840x2160@144Hz, DP 2.1)
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out support
LAN	Realtek® 2.5GbE LAN
Wireless	Realtek® Wi-Fi 6 RTL8851BE, 2.4/5 GHz, Bluetooth 5.3
Expansion Slots	CPU: 1 x PCIe 5.0 x16 Chipset: 1 x PCIe 4.0 x16 (x4 mode)
Storage	CPU: 1 x M.2 Socket 3 (PCIe 5.0 x4/x2, 2280) Chipset: 1 x M.2 Socket 3 (PCIe 4.0 x4/x2, 2280), 4 x SATA 6Gb/s RAID 0/1/5/10 support

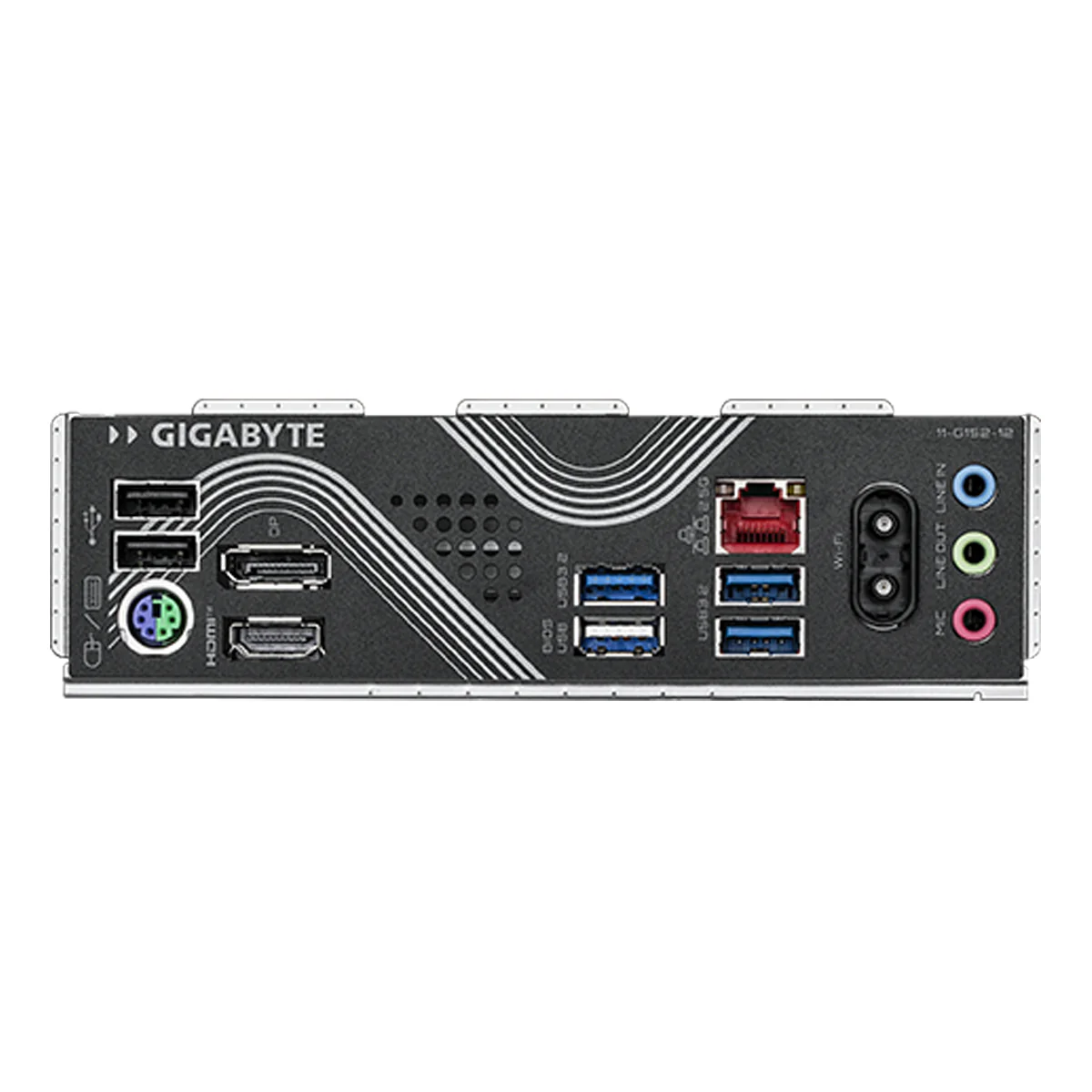

USB	Rear: 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1, 1 x HDMI, 1 x DisplayPort, 1 x PS/2, 2 x antenna connectors, 1 x RJ-45, 3 x Audio jacks Internal: 1 x USB Type-C (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 4 x USB 2.0 via hub
Internal I/O Connectors	1 x 24-pin ATX, 1 x 8-pin 12V, CPU fan header, CPU fan/water pump header, system fan header, system fan/water pump header, 3 x Addressable RGB Gen2 headers, 2 x M.2 connectors, 4 x SATA 6Gb/s, front panel header, front audio header, S/PDIF Out header, TPM header, serial port header, Q-Flash Plus button, Clear CMOS jumper, Reset jumper
BIOS	256 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center support, Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton Internet Security OEM, LAN bandwidth management software
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX; 24.4 cm x 22.5 cm
