Gigabyte GP-UD1300GM PG5 1300W 80+ Gold PCIE GEN 5.0 ATX 3.0 Fully Modular Power Supply
KEY FEATURE
- Ultra Durable
- Ā Main Japanese capacitors
- Ā Enhanced thermal solution

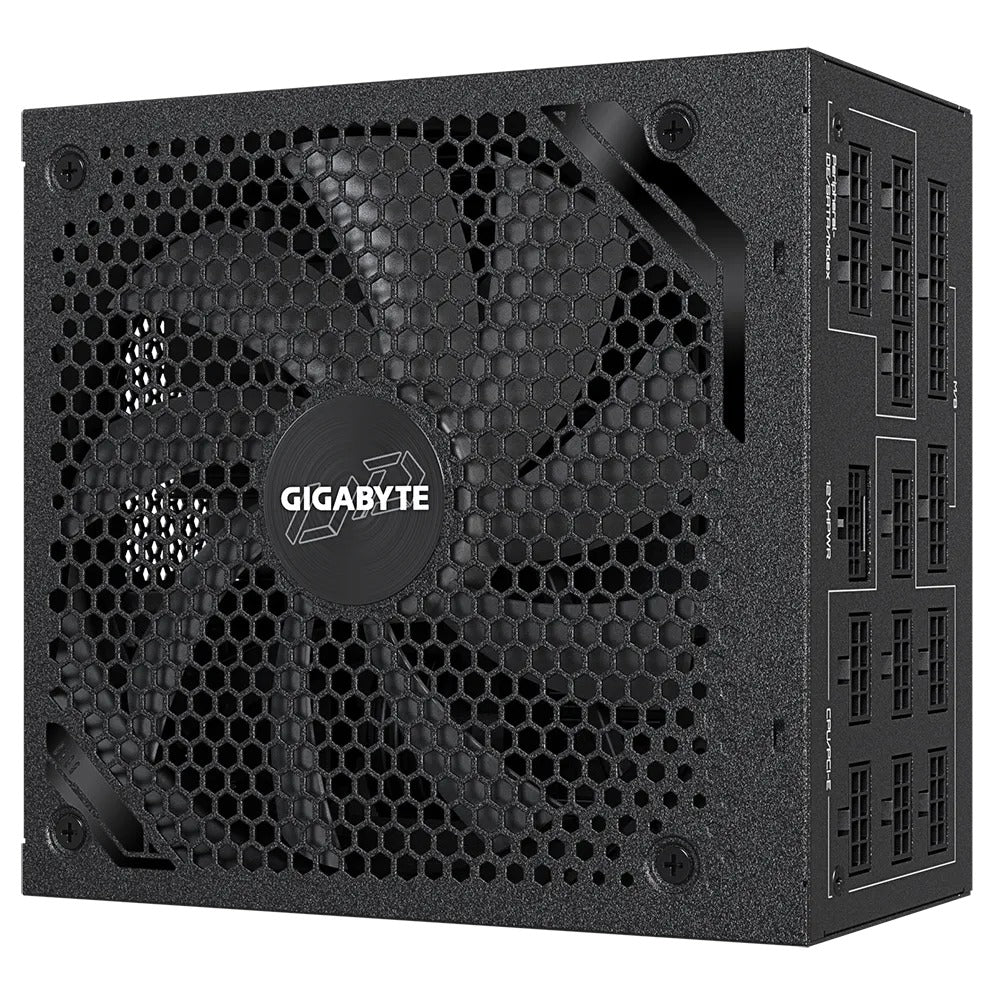

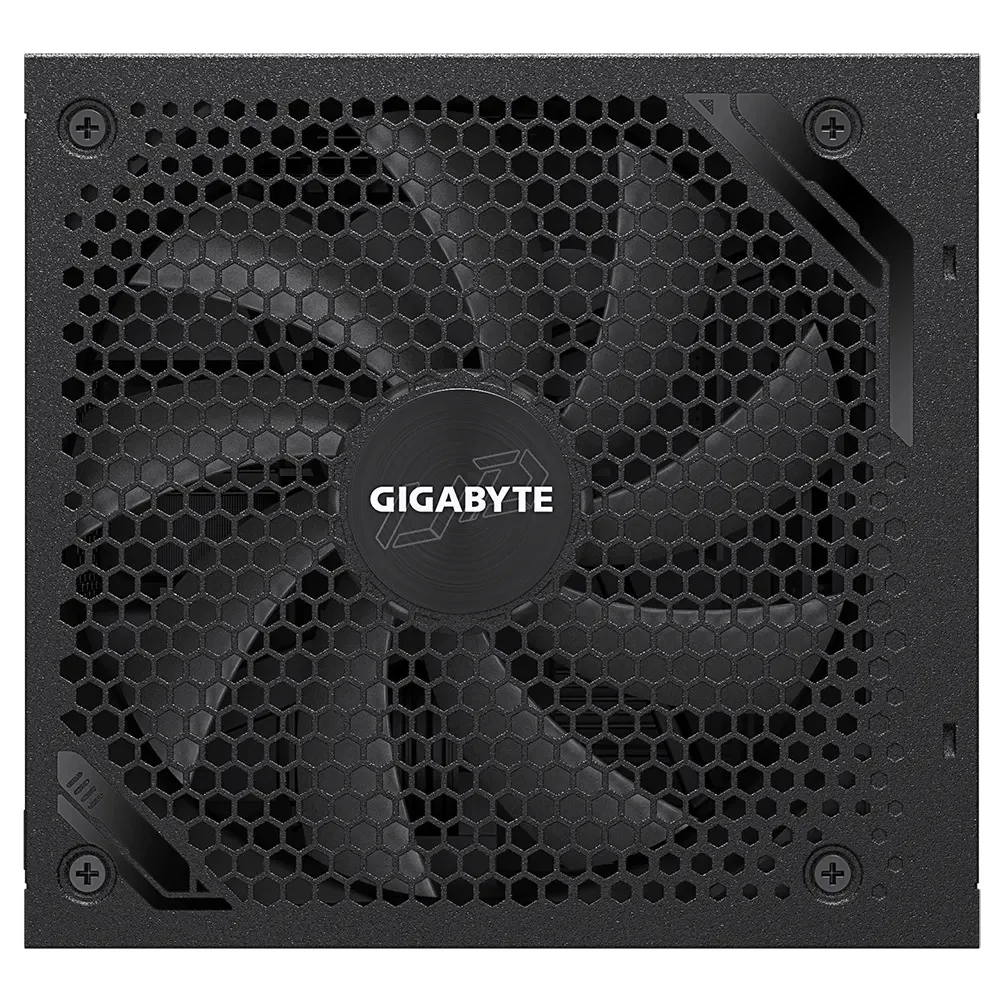

- Ā 140mm smart hydraulic bearing (HYB) fan
- Ā OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics card
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified
- Fully modular design
- Compact size
- 10 years warranty (Adjusted according to different regions)
Ā
SPECIFICATIONS:
| Model | Ā GP-UD1300GM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | Ā 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | Ā 1300W |
| Dimension | Ā 150 x 160 x 86 mm |
| Fan Type | 140mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | Ā 90% at typical load |
| MTBF | Ā >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | Ā 100-150ms |
| Hold Up Time | Ā >16ms |
| Cable Type | Ā Flat, All black |

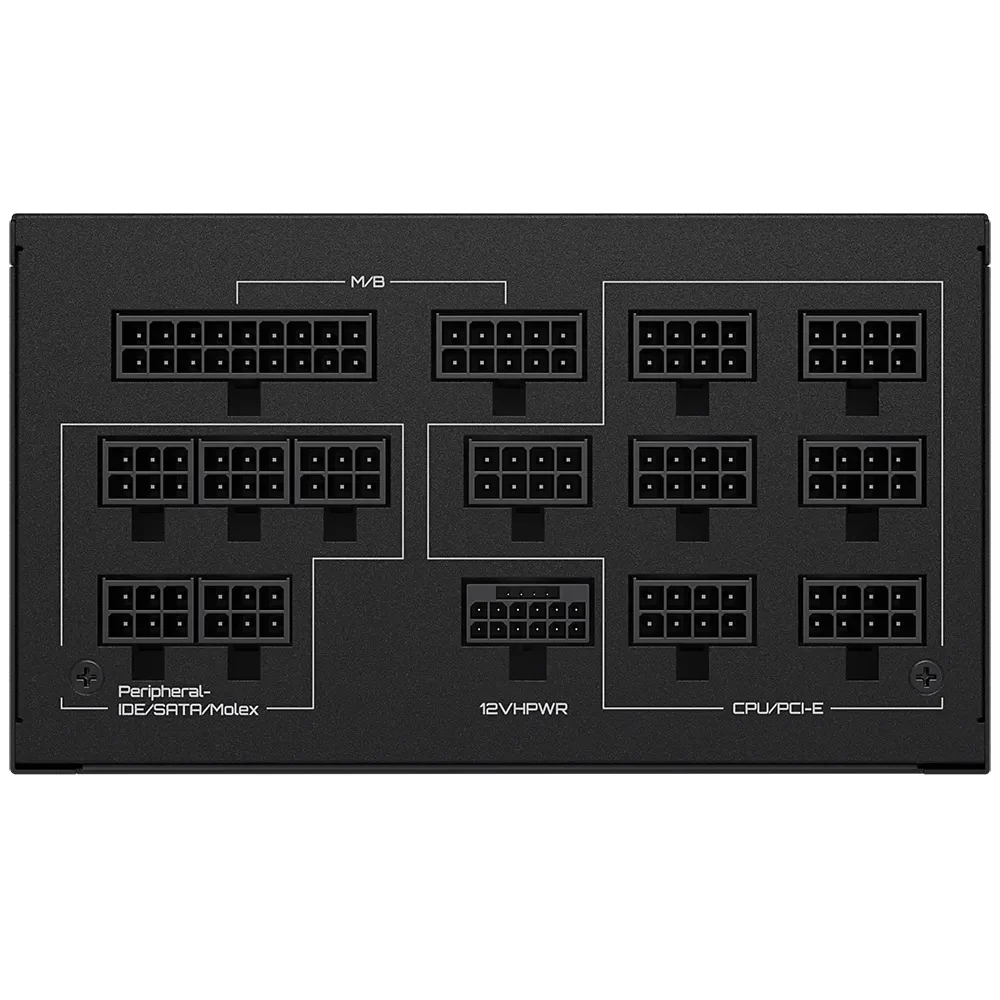

| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2 |
