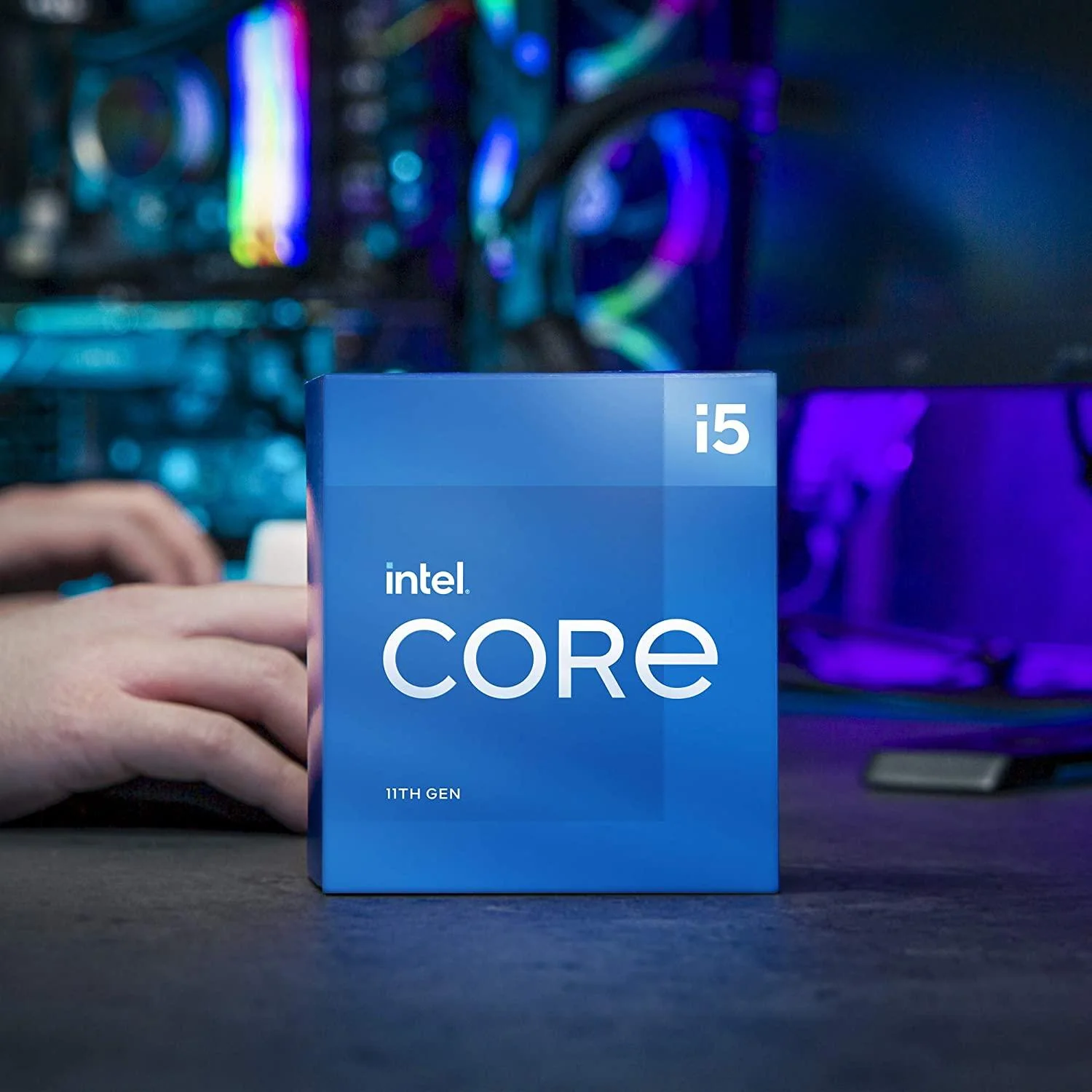

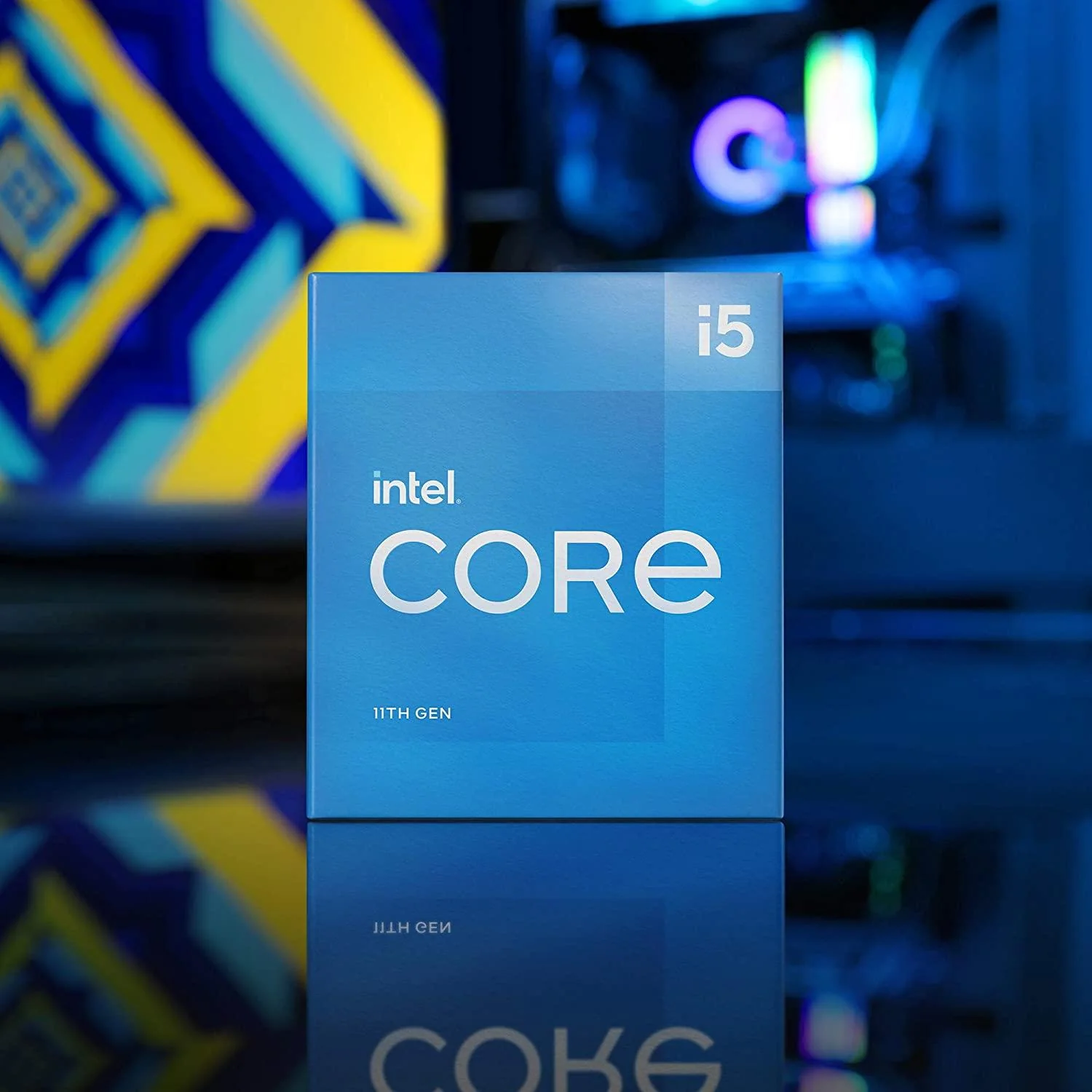

Intel Core i5-11400 2.6 GHZ 6-Core LGA 1200 Processor (BX8070811400)

Intel Core i5-11400 2.6 GHZ 6-Core LGA 1200 Processor (BX8070811400)

i5-10400 Desktop Boxed CPU Specs

Max clock speed	Up to 4.4 GHz
Base clock speed	2.6 GHz
Cores/Threads	6/12
Unlocked and overclockable(1)	No
Boost technology	Intel Turbo Boost Technology 2.0
TDP	65W
Intel Smart Cache	12M
Motherboard compatibility	400 and 500 series(2)

Inteland reg; Coreand reg; i5 2.60 GHz processor offers hyper-threading architecture that delivers high performance for demanding applications with improved onboard graphics and turbo boost
The Socket LGA-1200 socket allows processor to be placed on the PCB without soldering
12 MB of L3 cache rapidly retrieves the most used data available to improve system performance
14 nm design offers great efficiency for computing, delivers nimble processing with balanced cost, performance, and power
Built-in Intel UHD Graphics 730 controller for improved graphics and visual quality. Supports up to 3 monitors.

CPU Specifications

Total Cores : 6

Total Threads :12

Max Turbo Frequency : 4.40 GHz

Intel® Turbo Boost Technology 2.0 Frequency^‡ : 4.40 GHz

Processor Base Frequency : 2.60 GHz

Cache :12 MB Intel® Smart Cache

Bus Speed : 8 GT/s

TDP : 65 W

Memory Specifications

Max Memory Size (dependent on memory type) : 128 GB

Memory Types : DDR4-3200

Max # of Memory Channels : 2

Max Memory Bandwidth : 50 GB/s

ECC Memory Supported ^‡:No

Processor Graphics

Processor Graphics ^{‡ :}Intel® UHD Graphics 730

Graphics Base Frequency : 350 MHz

Graphics Max Dynamic Frequency : 1.30 GHz

Graphics Video Max Memory : 64 GB

Execution Units : 24

4K Support : Yes, at 60Hz

Max Resolution (HDMI)^{‡ :}4096x2160@60Hz

Max Resolution (DP)‡ : 5120 x 3200 @60Hz

Max Resolution (eDP - Integrated Flat Panel)‡ : 5120 x 3200 @60Hz

DirectX* Support : 12.1

OpenGL* Support : 4.5

OpenCL* Support : 3.0

Intel® Quick Sync Video : Yes

Intel® InTru™ 3D Technology : Yes

Intel® Clear Video HD Technology : Yes

Intel® Clear Video Technology : Yes

# of Displays Supported : 3

Device I : 0x4C8B

Expansion Options

Scalabilit : 1S Only

PCI Express Revision : 4.0

PCI Express Configurations ^{‡ :}Up to 1x16+1x4, 2x8+1x4, 1x8+3x4

Max # of PCI Express Lanes : 20

Package Specifications

Sockets Supported : FCLGA1200

Max CPU Configuratio : 1

Thermal Solution Specification : PCG 2019C

T_{JUNCTION :}100°C

Package Siz : 37.5 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator : 2.0

Intel® Deep Learning Boost (Intel® DL Boost) : Yes

Intel® Optane™ Memory Supported ^{‡ :}Yes

Intel® Thermal Velocity Boost : No

Intel® Turbo Boost Max Technology 3.0 ^{‡ :}No

Intel® Turbo Boost Technology ^{‡ :}2.0

Intel® Hyper-Threading Technology ^{‡ :}Yes

Intel® 64 ^{‡ :}Yes

Instruction Set : 64-bit

Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512

Idle States : Yes

Enhanced Intel SpeedStep® Technology : Yes

Thermal Monitoring Technologies : Yes

Intel® Identity Protection Technology ^{‡ :}Yes

Security & Reliability

Intel® AES New Instructions : Yes

Secure Key : Yes

Intel® Software Guard Extensions (Intel® SGX) : No

Intel® OS Guar : Yes

Intel® Trusted Execution Technology ^{‡ :}No

Execute Disable Bit ^{‡ :}Yes

Intel® Boot Guard : Yes

Intel® Stable IT Platform Program (SIPP) : No

Intel® Virtualization Technology (VT-x) ^{‡ :}Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ^{‡ :}Yes

Intel® VT-x with Extended Page Tables (EPT) ^{‡ :}Yes

$102.38

Intel Core i5-11400 2.6 GHZ 6-Core LGA 1200 Processor (BX8070811400)—

$102.38

Intel Core i5-11400 2.6 GHZ 6-Core LGA 1200 Processor (BX8070811400)—

$102.38

Product Information

Shipping & Returns

Description

i5-10400 Desktop Boxed CPU Specs

Max clock speed	Up to 4.4 GHz
Base clock speed	2.6 GHz
Cores/Threads	6/12
Unlocked and overclockable(1)	No
Boost technology	Intel Turbo Boost Technology 2.0
TDP	65W
Intel Smart Cache	12M
Motherboard compatibility	400 and 500 series(2)

Inteland reg; Coreand reg; i5 2.60 GHz processor offers hyper-threading architecture that delivers high performance for demanding applications with improved onboard graphics and turbo boost
The Socket LGA-1200 socket allows processor to be placed on the PCB without soldering
12 MB of L3 cache rapidly retrieves the most used data available to improve system performance
14 nm design offers great efficiency for computing, delivers nimble processing with balanced cost, performance, and power
Built-in Intel UHD Graphics 730 controller for improved graphics and visual quality. Supports up to 3 monitors.

CPU Specifications

Total Cores : 6

Total Threads :12

Max Turbo Frequency : 4.40 GHz

Intel® Turbo Boost Technology 2.0 Frequency^‡ : 4.40 GHz

Processor Base Frequency : 2.60 GHz

Cache :12 MB Intel® Smart Cache

Bus Speed : 8 GT/s

TDP : 65 W

Memory Specifications

Max Memory Size (dependent on memory type) : 128 GB

Memory Types : DDR4-3200

Max # of Memory Channels : 2

Max Memory Bandwidth : 50 GB/s

ECC Memory Supported ^‡:No

Processor Graphics

Processor Graphics ^{‡ :}Intel® UHD Graphics 730

Graphics Base Frequency : 350 MHz

Graphics Max Dynamic Frequency : 1.30 GHz

Graphics Video Max Memory : 64 GB

Execution Units : 24

4K Support : Yes, at 60Hz

Max Resolution (HDMI)^{‡ :}4096x2160@60Hz

Max Resolution (DP)‡ : 5120 x 3200 @60Hz

Max Resolution (eDP - Integrated Flat Panel)‡ : 5120 x 3200 @60Hz

DirectX* Support : 12.1

OpenGL* Support : 4.5

OpenCL* Support : 3.0

Intel® Quick Sync Video : Yes

Intel® InTru™ 3D Technology : Yes

Intel® Clear Video HD Technology : Yes

Intel® Clear Video Technology : Yes

# of Displays Supported : 3

Device I : 0x4C8B

Expansion Options

Scalabilit : 1S Only

PCI Express Revision : 4.0

PCI Express Configurations ^{‡ :}Up to 1x16+1x4, 2x8+1x4, 1x8+3x4

Max # of PCI Express Lanes : 20

Package Specifications

Sockets Supported : FCLGA1200

Max CPU Configuratio : 1

Thermal Solution Specification : PCG 2019C

T_{JUNCTION :}100°C

Package Siz : 37.5 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator : 2.0

Intel® Deep Learning Boost (Intel® DL Boost) : Yes

Intel® Optane™ Memory Supported ^{‡ :}Yes

Intel® Thermal Velocity Boost : No

Intel® Turbo Boost Max Technology 3.0 ^{‡ :}No

Intel® Turbo Boost Technology ^{‡ :}2.0

Intel® Hyper-Threading Technology ^{‡ :}Yes

Intel® 64 ^{‡ :}Yes

Instruction Set : 64-bit

Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512

Idle States : Yes

Enhanced Intel SpeedStep® Technology : Yes

Thermal Monitoring Technologies : Yes

Intel® Identity Protection Technology ^{‡ :}Yes

Security & Reliability

Intel® AES New Instructions : Yes

Secure Key : Yes

Intel® Software Guard Extensions (Intel® SGX) : No

Intel® OS Guar : Yes

Intel® Trusted Execution Technology ^{‡ :}No

Execute Disable Bit ^{‡ :}Yes

Intel® Boot Guard : Yes

Intel® Stable IT Platform Program (SIPP) : No

Intel® Virtualization Technology (VT-x) ^{‡ :}Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ^{‡ :}Yes

Intel® VT-x with Extended Page Tables (EPT) ^{‡ :}Yes
