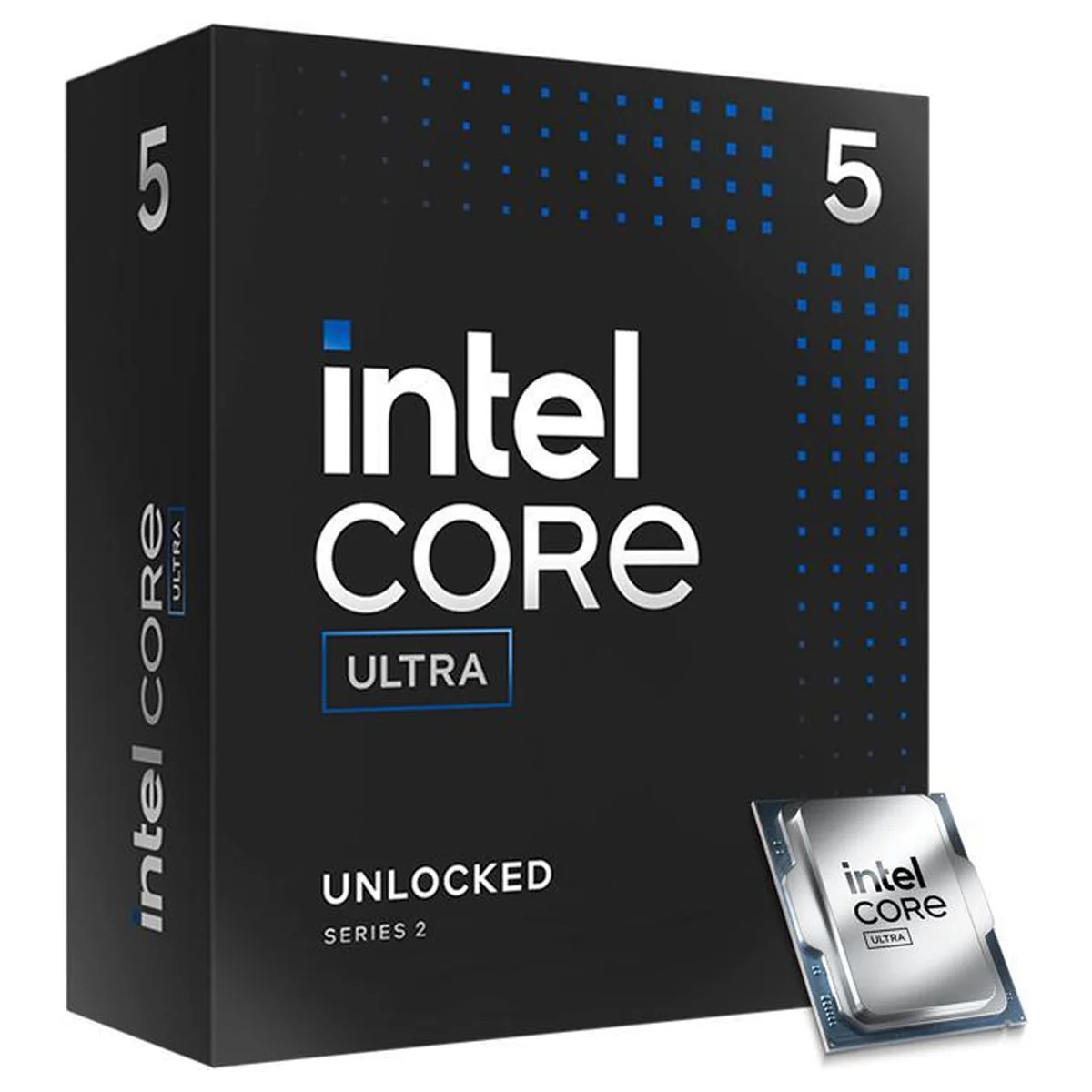

Intel Core Ultra 5 245K Processor

The Intel Core Ultra 5 245K is a mid-range processor from Intel's Arrow Lake series, utilizing a 3nm architecture. It features a hybrid core design with 6 Performance cores (P-cores) and 8 Efficiency cores (E-cores), offering a total of 14 cores and 20 threads. Its clock speeds include a base frequency of 3.6 GHz (P-cores) and boost frequencies up to 5.2 GHz (P-cores) and 4.6 GHz (E-cores). This processor comes equipped with 24 MB of L3 cache and has a 159W TDP.

Specifications:

Product Collection	Intel® Core™ Ultra Processors (Series 2)
Vertical Segment	Desktop
Processor Number	245K
Overall Peak TOPS (Int8)	30
Total Cores	14
# of Performance-cores	6
# of Efficient-cores	8
Total Threads	14
Max Turbo Frequency	5.2 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Base Frequency	4.2 GHz
Efficient-core Base Frequency	3.6 GHz
Cache	24 MB Intel® Smart Cache
Total L2 Cache	26 MB
Processor Base Power	125 W
Maximum Turbo Power	159 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
AI Software Frameworks Supported by CPU	OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography	TSMC N3B
Max Memory Size (dependent on memory type)	192 GB
Memory Types	Up to DDR5 6400 MT/s
Maximum Memory Speed	6400 MHz
Max # of Memory Channels	2
ECC Memory Supported	Yes
GPU Name	Intel® Graphics
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	1.9 GHz
GPU Peak TOPS (Int8)	8
Graphics Output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Xe-cores	4
Max Resolution (HDMI)	4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP)	8K @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)	4K @ 60Hz
DirectX* Support	12
OpenGL* Support	4.5
OpenCL* Support	3
Intel® Quick Sync Video	Yes
