Kingston KVR56S46BS8-16 16GB DDR5 5600MHz NON-ECC SODIMM Memory
Kingston KVR56S46BS8-16 16GB DDR5 5600MHz NON-ECC SODIMM Memory

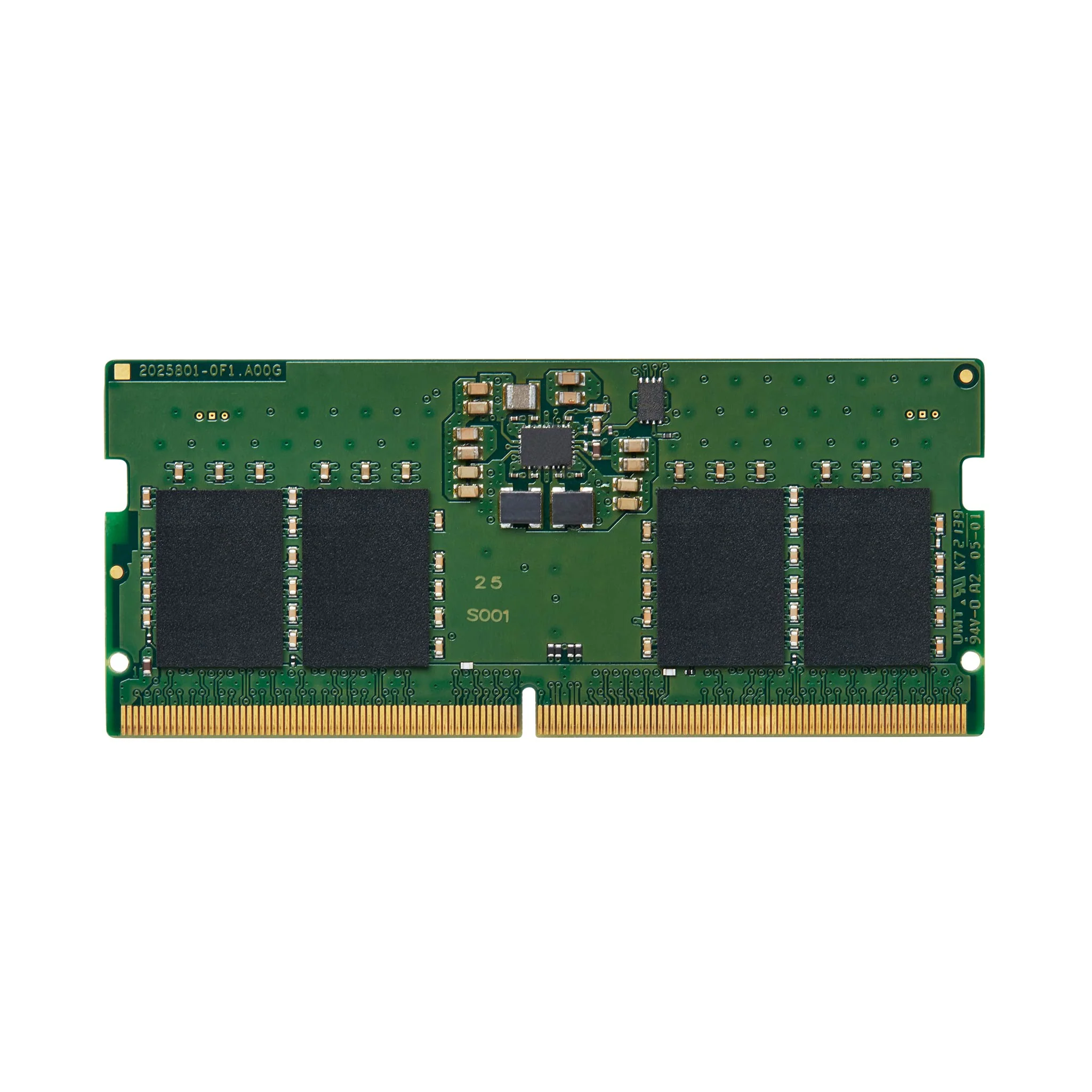

This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES:
ā¢ Power Supply: VDD = 1.1V Typical
ā¢ VDDQ = 1.1V Typical
ā¢ VPP = 1.8V Typical
ā¢ VDDSPD = 1.8V to 2.0V
ā¢ On-Die ECC
ā¢ PCB: Height 1.18ā (30.00mm)
ā¢ RoHS Compliant and Halogen-Fre
Ā
Original: $247.12
-70%$247.12
$74.14Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Kingston KVR56S46BS8-16 16GB DDR5 5600MHz NON-ECC SODIMM Memory
This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES:
ā¢ Power Supply: VDD = 1.1V Typical
ā¢ VDDQ = 1.1V Typical
ā¢ VPP = 1.8V Typical
ā¢ VDDSPD = 1.8V to 2.0V
ā¢ On-Die ECC
ā¢ PCB: Height 1.18ā (30.00mm)
ā¢ RoHS Compliant and Halogen-Fre
