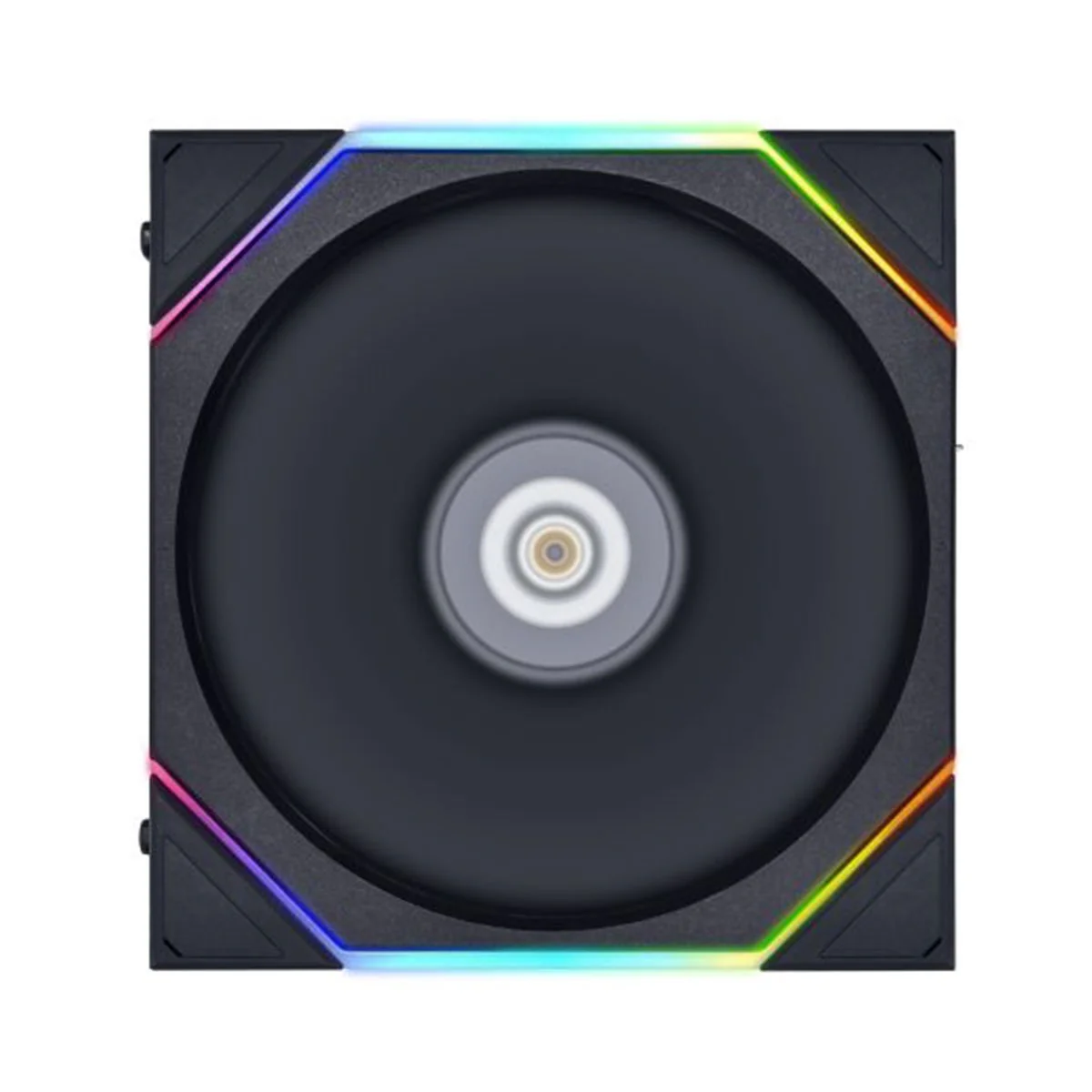

Lian Li Uni Fan TL 120 RGB Reverse Blade 120mm Fan Single Pack
UNI FAN TL
- Noise-optimized and performance-oriented fan.
- LCP (liquid crystal polymer) fan blades are used for tight tolerance.
- FDB bearing with copper shielding to ensure stable rotation of the impeller.
- Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
- Features two light zones for increased lighting customizability.
- UNIFAN interlocking system for ease of cable management.
- Cable connection is supported on both sides of the fan.
- Support up to 10 fans per controller port via a daisy-chain POGO cable.
- LED lighting and fan speed controller shared with UNIFAN TL LCD.
- Complete software control with L-Connect 3.
SPECIFICATION
| PRODUCT NAME | UNI FAN TL 140 Reverse Blade |
| MODEL | 12RTL1B / 12RTL1W |
| COLOR | Black /White |
| NUMBER OF FANS | 1 |
| CONTROLLER | No |
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) |
| FAN DIMENSION | 124 x 120 x 28 mm |
| FAN SPEED | 0, 200~2600 RPM |
| MAX. AIR PRESSURE | 2.66 mmH2O (Maximum) |
| MAX. AIRFLOW | 83.4 CFM (Maximum) |
| ACOUSTIC NOISE | 34 dB(A) Max |
| INPUT POWER | 4.5W |
| MATERIAL | PA66 / LCP |
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) |
| BEARING TYPE | Fluid Dynamic Bearing (FDB) |
| OPERATE VOLTAGE | DC12V & 5V |
