Moza SRP2 Racing Pedal (RS098)

MOZA SRP2 Pedals

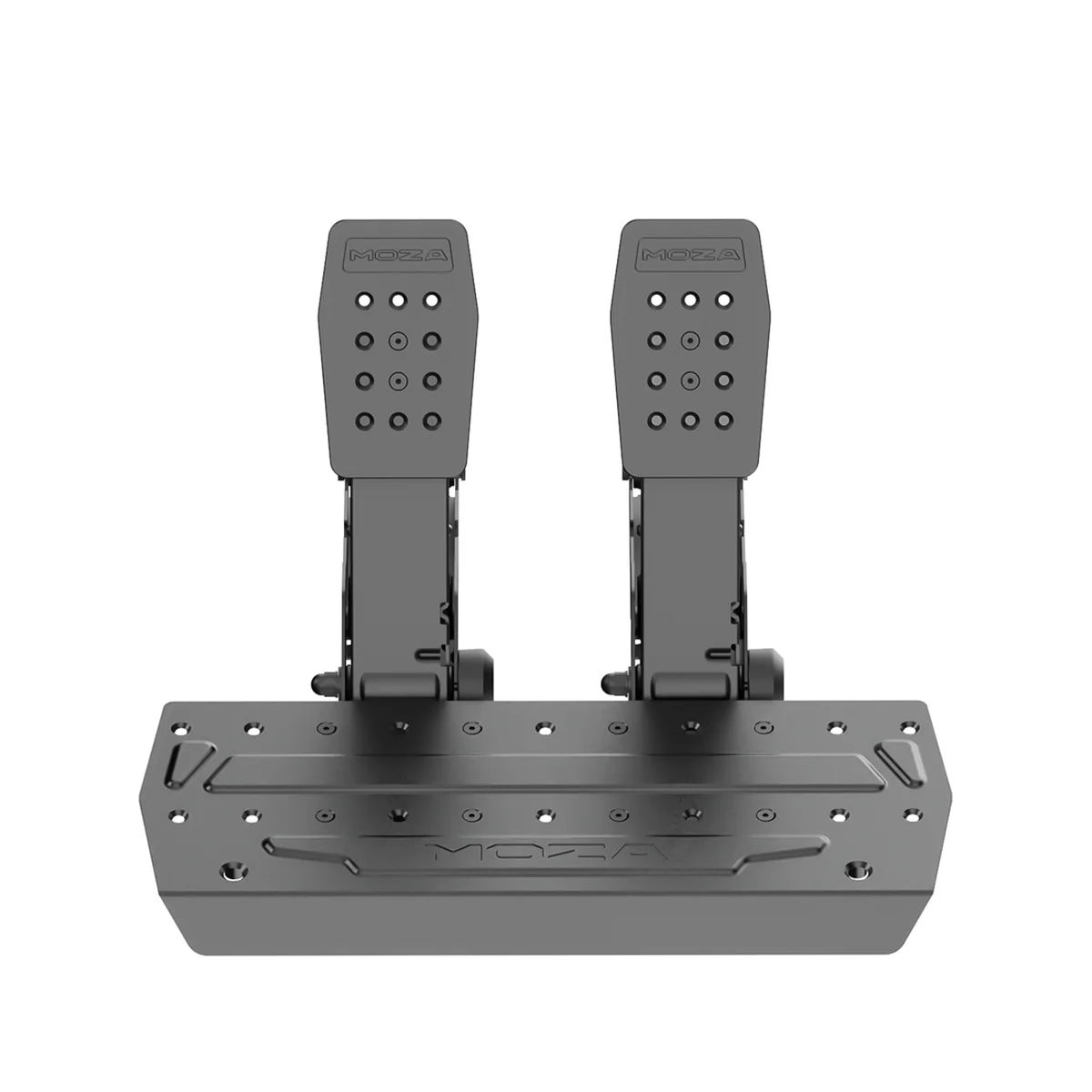

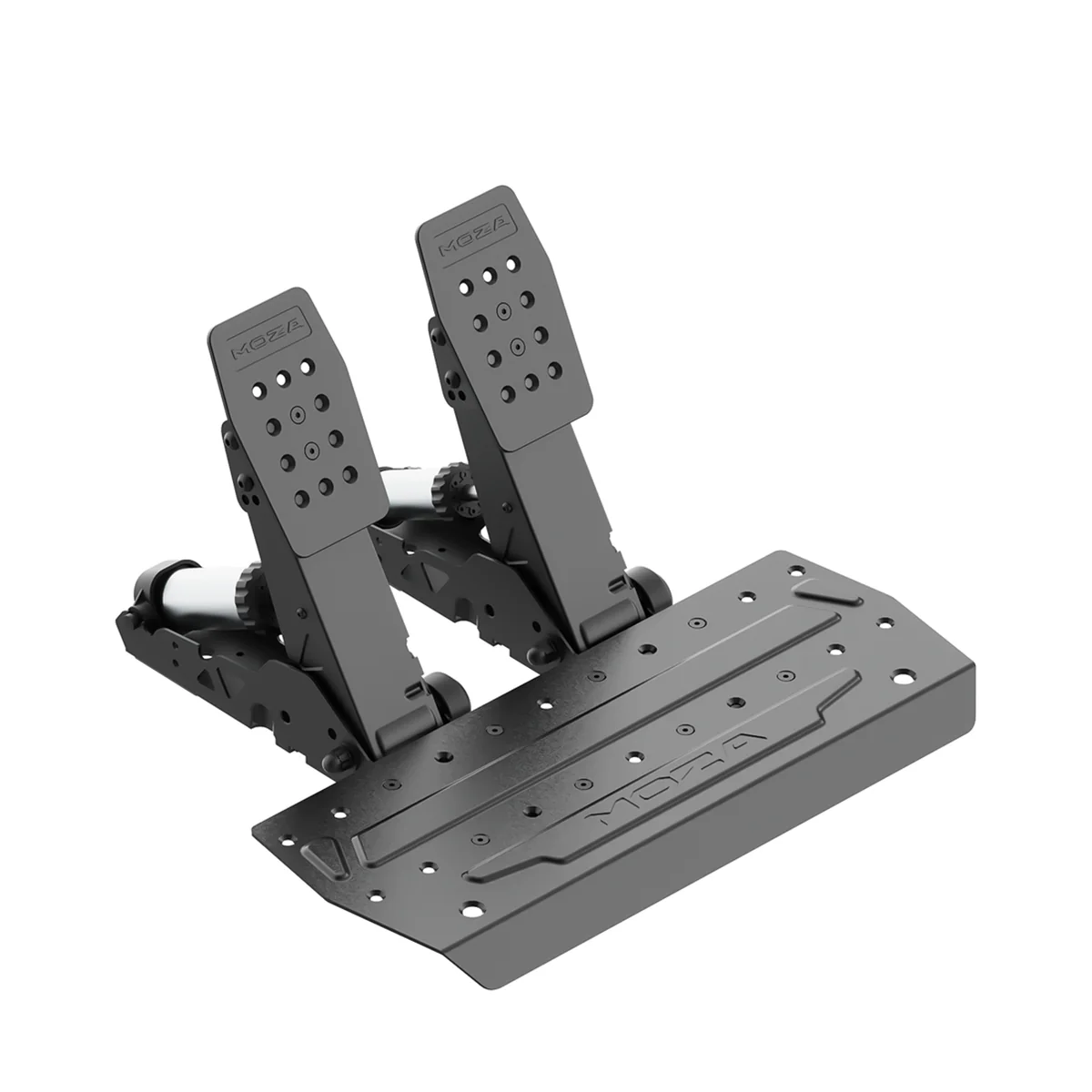

Precision-engineered MOZA SRP2 Dual Pedals feature CNC aerospace-grade aluminum and high-strength steel for durable, professional-grade performance. Equipped with a 100KG load cell and 15-bit angle sensor with fusion technology, the SRP2 delivers accurate, responsive brake input. Fully adjustable pedal angle, spacing, and height, combined with tool-free tuning and optional Performance Kit for 1,000+ brake feel configurations, ensure a customizable and immersive sim racing experience.



Specification:



Pedal Material	High-strength Steel
Base Material	High-strength Steel
Load Cell Range	0-100 kg
Brake Sensing Method	Hybrid Load Cell and Angle Sensor
Angle Sensor Resolution	15-bit (32,768 PPR)
Brake Feel Adjustability	Supported by swapping the included 2 elastomer sets or using the optional Kit
Throttle Adjustability	2-step preload adjustment
Clutch Adjustability	2-step preload adjustment
Pedal Angle Adjustment Range	10°/25°
Pedal Left/Right Adjustment Range	15 mm
Pedal Height Adjustment Range	36 mm
Pedal Curve Adjustment	Supported
Real-time Pedal Output Display	Supported
Brake Pressure Engagement Point Adjustment	Supported
