MSI MAG X870E Tomahawk Max WiFi DDR5 AMD Motherboard
| Core Specifications | |
|---|---|
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory Support | |
| Capacity & Type | 4x DDR5 UDIMM, Maximum 256GB |
| Frequency (OC) | Up to 8400+ MT/s (1DPC 1R) |
| Features | Dual-Channel mode, AMD EXPO™, Non-ECC, CUDIMM (Clock Driver bypass) |
| Expansion Slots & Graphics | |
| PCIe Slots |
1x PCIe 5.0 x16 (From CPU) 1x PCIe 4.0 x4 (From Chipset) 1x PCIe 3.0 x1 (From Chipset) |
| Video Output |
1x HDMI™ 2.1 FRL (8K 60Hz) 2x USB4® Type-C DisplayPort 1.4 (4K 60Hz) |
| Storage & RAID | |
| M.2 Slots |
M.2_1: PCIe 5.0 x4 (22110/2280) M.2_2: PCIe 5.0 x4 (2280/2260) M.2_3: PCIe 4.0 x4 (2280/2260) M.2_4: PCIe 4.0 x4 (2280/2260) |
| SATA | 4x SATA 6G |
| RAID Support | SATA: 0/1/10 | M.2 NVMe: 0/1/5/10 (RAID 5 for Ryzen 9000 only) |
| Connectivity & Audio | |
| Wireless & Bluetooth | Wi-Fi 7 (up to 5.8Gbps, 320MHz) | Bluetooth® 5.4 |
| LAN | 1x Realtek® 8126 5G LAN |

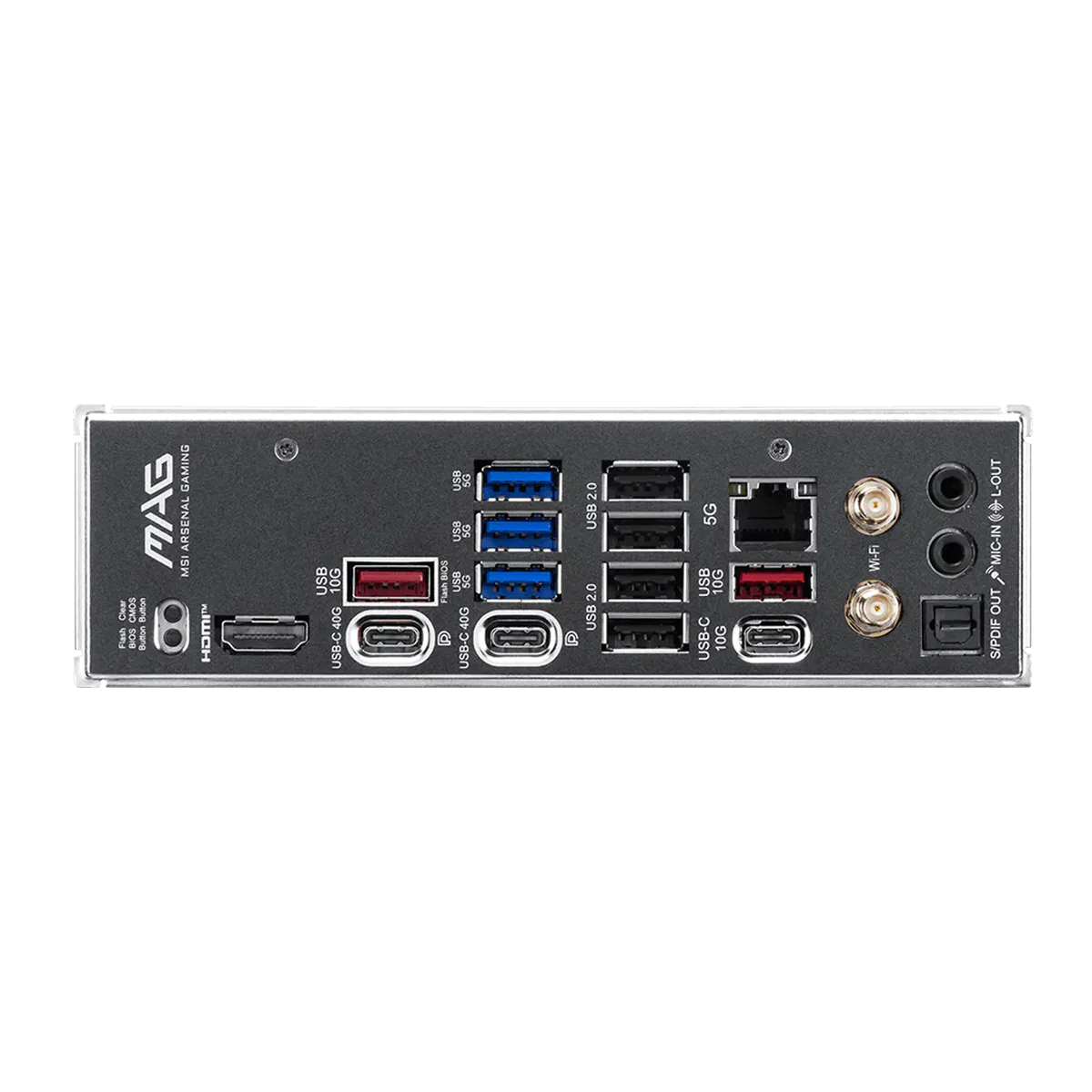

| USB (Rear) | 2x USB 40Gbps (Type-C), 1x USB 10Gbps (Type-C), 2x USB 10Gbps (Type-A), 3x USB 5Gbps (Type-A), 4x USB 2.0 |
| Audio | Realtek® ALC4080 Codec (7.1-Channel, S/PDIF output) |
| Internal I/O & Hardware Features | |
| Fan Headers | 1x CPU, 1x Combo (Pump/Sys), 6x System Fans |
| LED & Debug | 3x ARGB V2, 1x RGB, EZ Debug LED, Digit Debug LED, Memory Detection LED |
| Power Connectors | 1x 24-pin ATX, 2x 8-pin CPU, 1x 8-pin PCIE |
