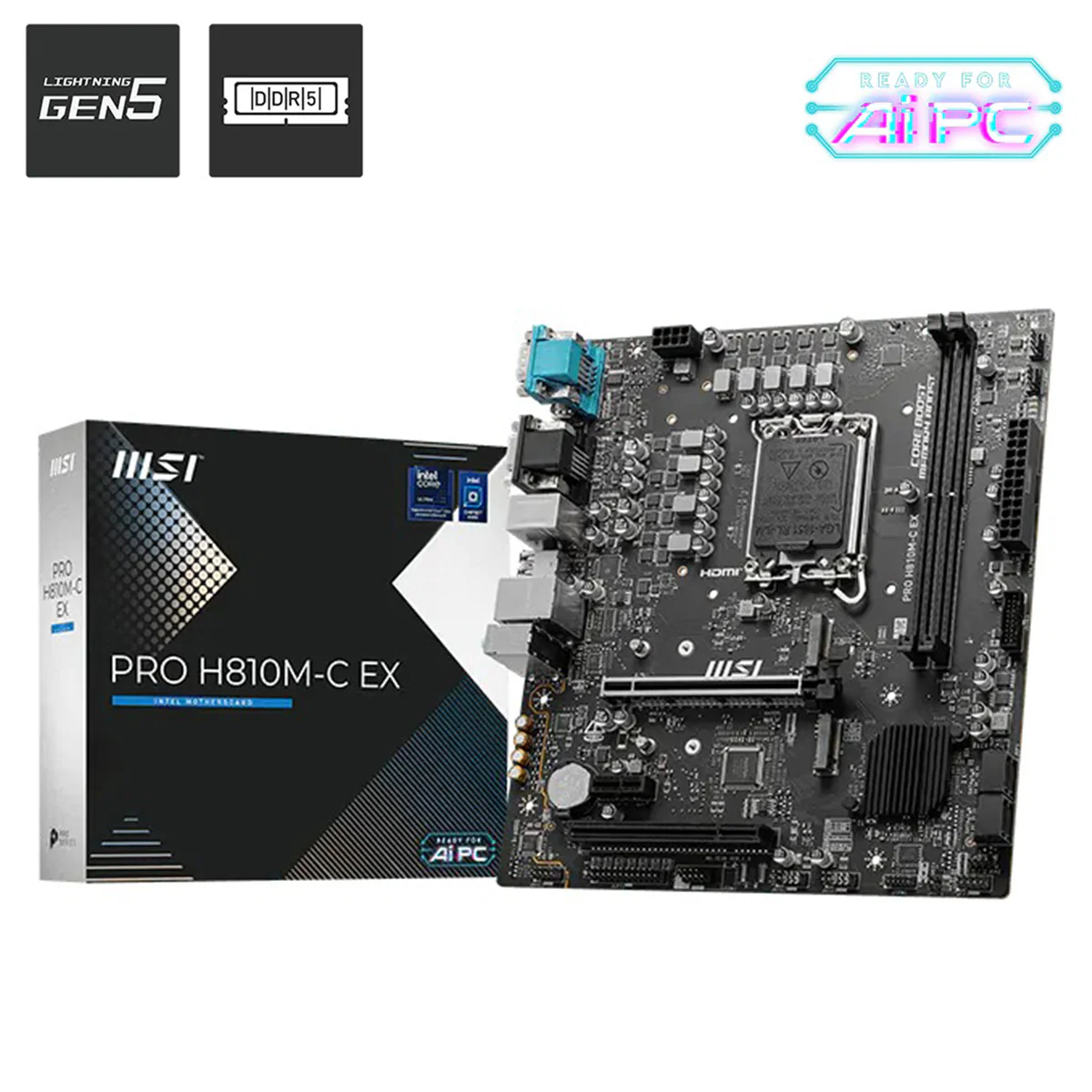

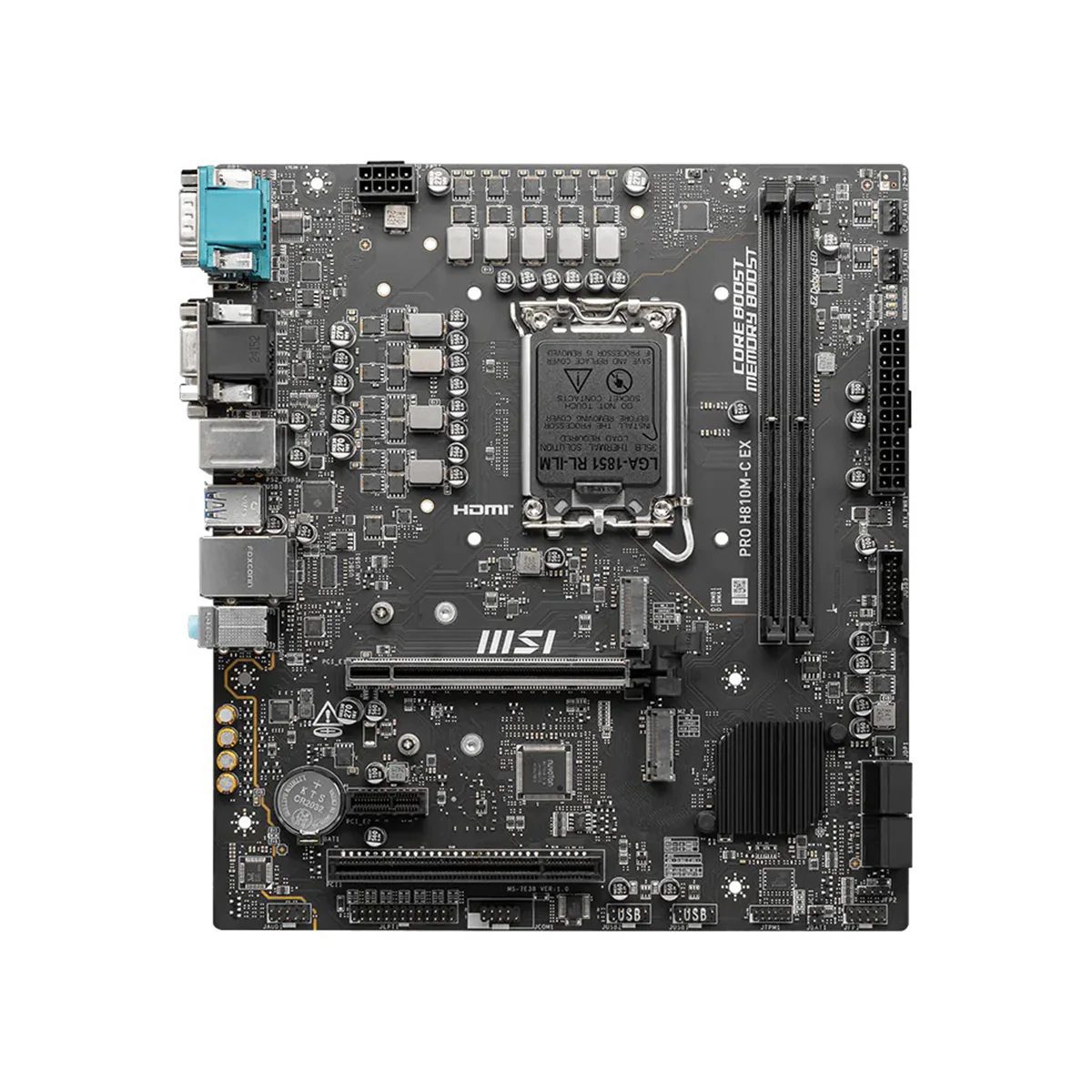

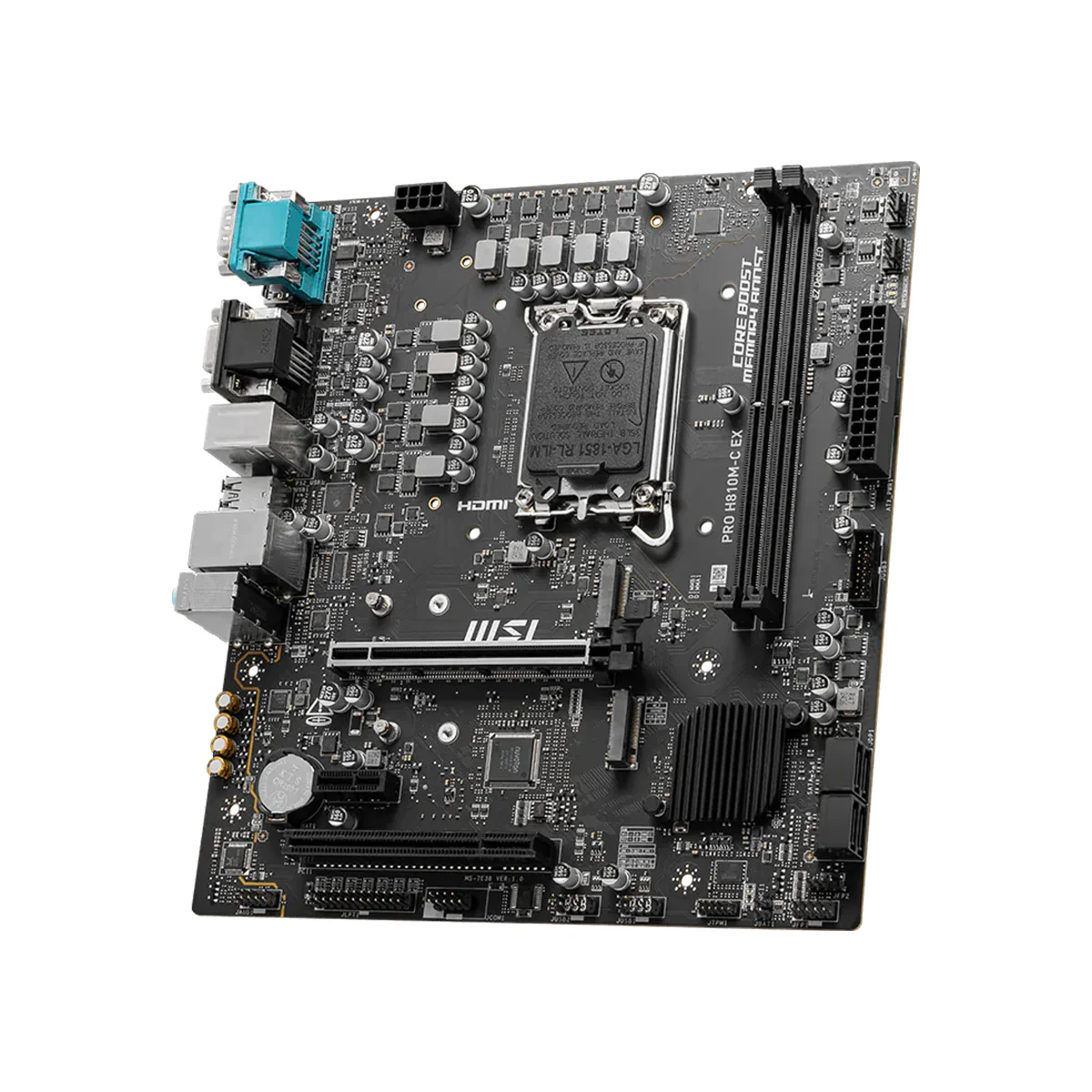

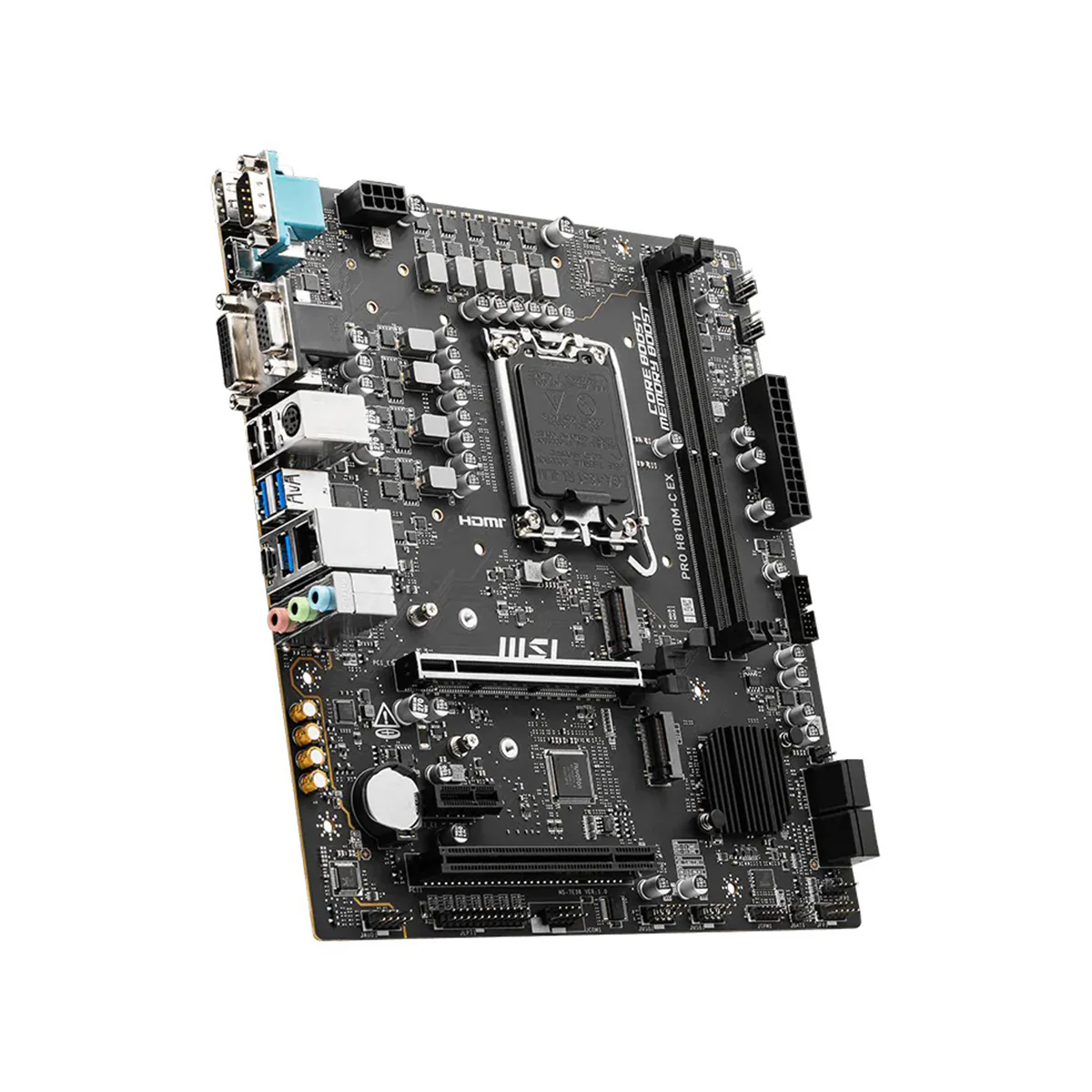

MSI Pro H810M-C EX DDR5 Intel Motherboard
PRO H810M-C EX is engineered with many exclusive features of MSI, EZ PCIe Clip II, PCIe 5.0, M.2 Gen4, and Type-C display, ready for the IntelĀ®Ā Coreā¢ Ultra processors.
Ā
Specifications
| Chipset | INTEL H810 |
| CPU | Supports IntelĀ® Coreā¢ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Memory Support | DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: ā¢ 1DPC 1R Max speed up to 6400 MT/s ā¢ 1DPC 2R Max speed up to 6400 MT/s Supports IntelĀ® POR Speed and JEDEC Speed Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory ā¢ The DIMM slots on this motherboard only have single-sided latches. ā¢ Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the productās Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMIā¢ Support HDMIā¢ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 over USB Type-CĀ®, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. **This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot 1x PCI slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | RealtekĀ® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Rear) |
| LAN | IntelĀ® I219V 1Gbps LAN controller |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |

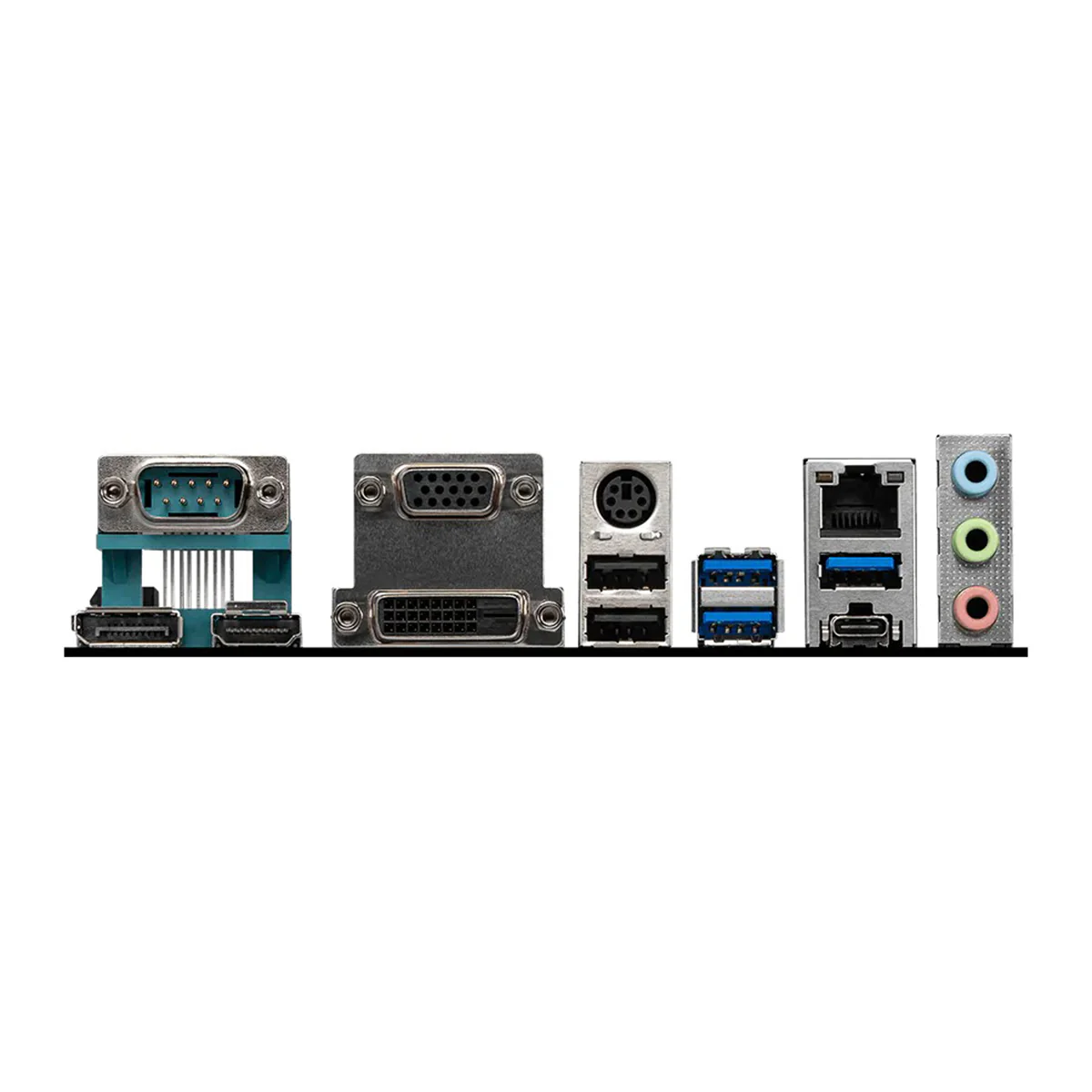

| BACK PANEL PORTS | COM Port VGA Keyboard / Mouse USB 5Gbps Type-A 1G LAN Audio Connectors DisplayPort HDMIā¢ DVI-D USB 2.0 USB 5Gbps Type-A USB 10Gbps Type-C (Type-C Display port) |
| OPERATING SYSTEM | Support for WindowsĀ® 11 64-bit |
| BOX CONTENT | |
| PCB Info | mATX 220mmx243.84mm |
Ā
Ā
$31.47
Original: $104.90
-70%MSI Pro H810M-C EX DDR5 Intel Motherboardā
$104.90
$31.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
PRO H810M-C EX is engineered with many exclusive features of MSI, EZ PCIe Clip II, PCIe 5.0, M.2 Gen4, and Type-C display, ready for the IntelĀ®Ā Coreā¢ Ultra processors.
Ā
Specifications
| Chipset | INTEL H810 |
| CPU | Supports IntelĀ® Coreā¢ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Memory Support | DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: ā¢ 1DPC 1R Max speed up to 6400 MT/s ā¢ 1DPC 2R Max speed up to 6400 MT/s Supports IntelĀ® POR Speed and JEDEC Speed Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory ā¢ The DIMM slots on this motherboard only have single-sided latches. ā¢ Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the productās Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMIā¢ Support HDMIā¢ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 over USB Type-CĀ®, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. **This motherboard limits the onboard graphics to support only four displays. If you utilize all five onboard graphics ports, the DVI-D port will be disabled. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot 1x PCI slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | RealtekĀ® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Rear) |
| LAN | IntelĀ® I219V 1Gbps LAN controller |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| BACK PANEL PORTS | COM Port VGA Keyboard / Mouse USB 5Gbps Type-A 1G LAN Audio Connectors DisplayPort HDMIā¢ DVI-D USB 2.0 USB 5Gbps Type-A USB 10Gbps Type-C (Type-C Display port) |
| OPERATING SYSTEM | Support for WindowsĀ® 11 64-bit |
| BOX CONTENT | |
| PCB Info | mATX 220mmx243.84mm |
