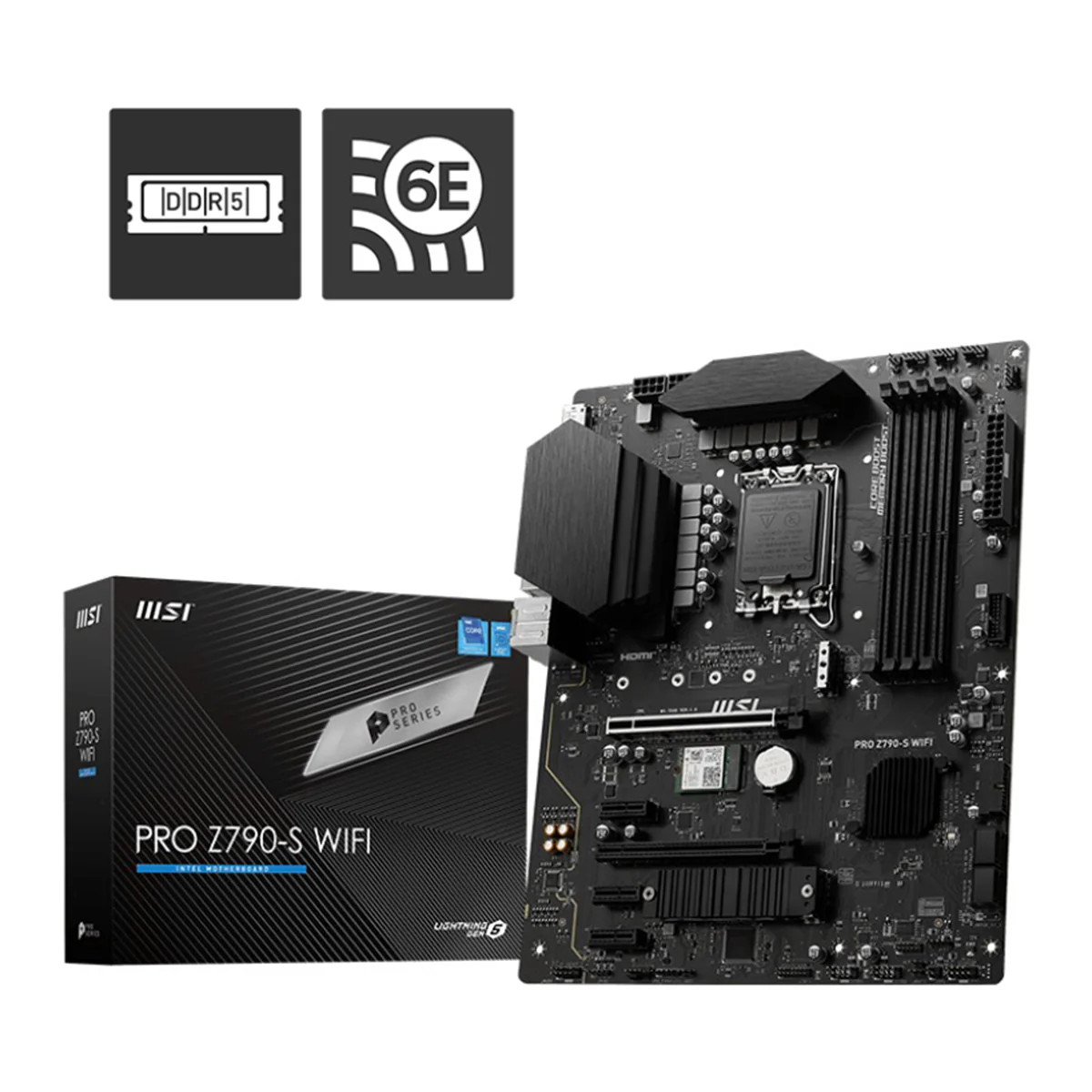

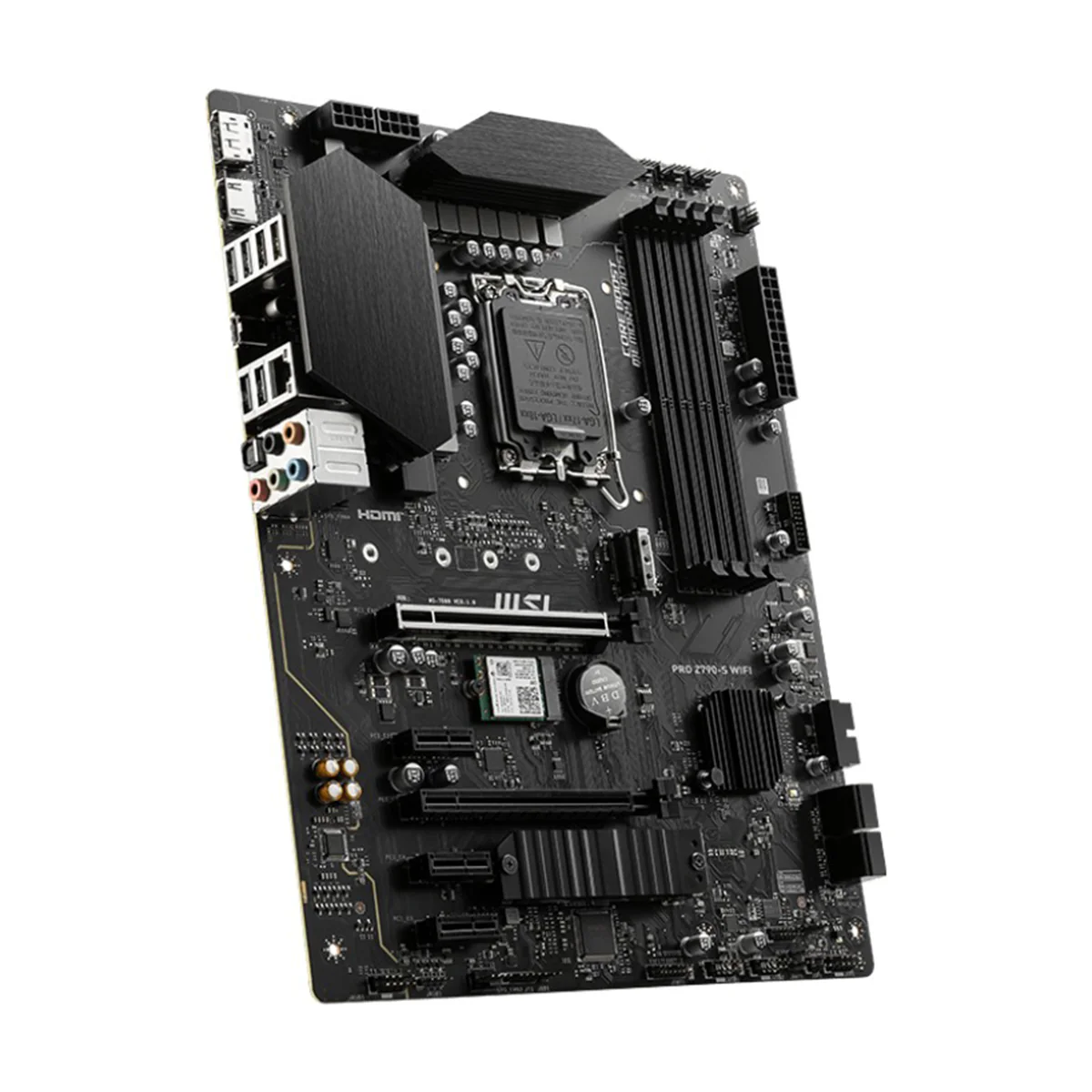

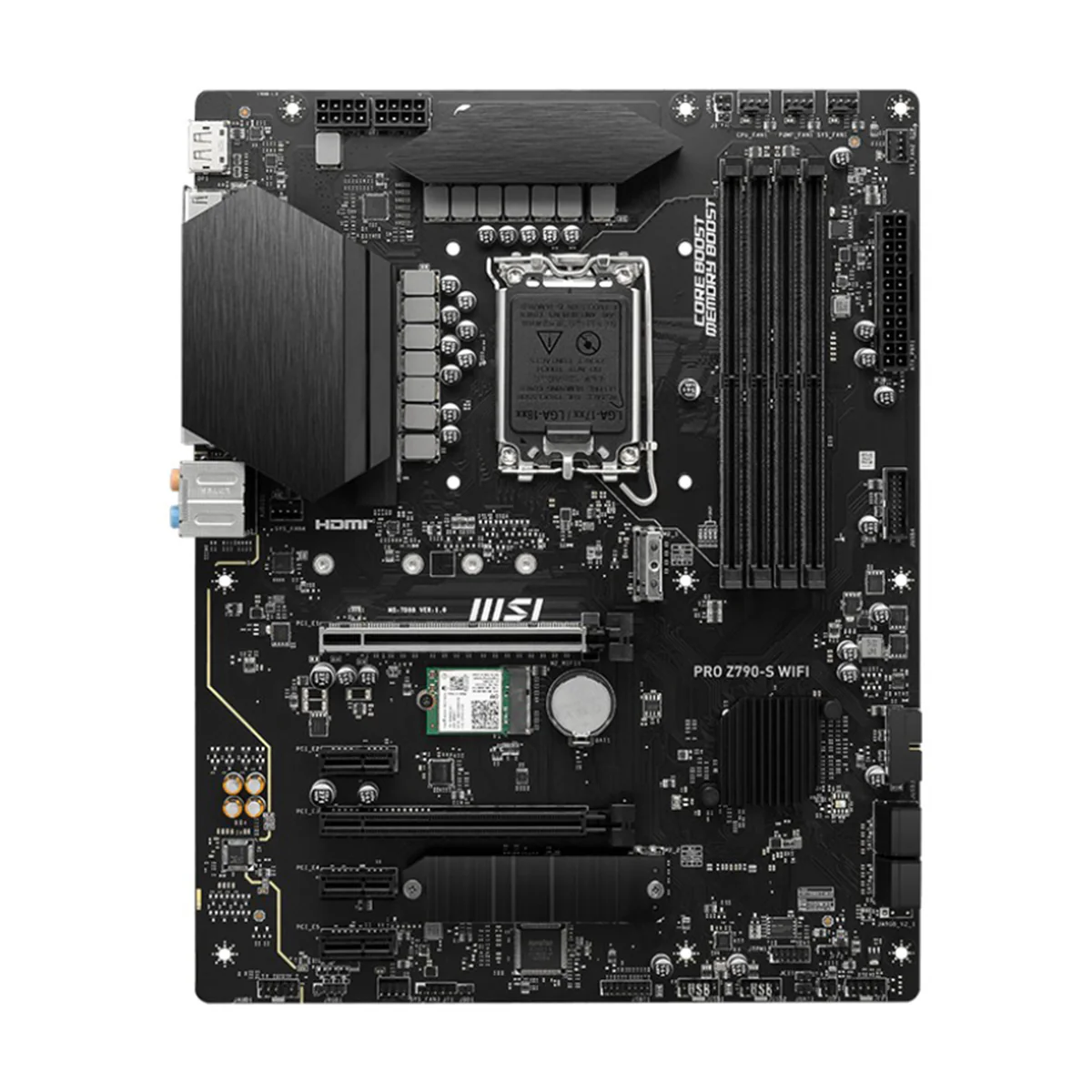

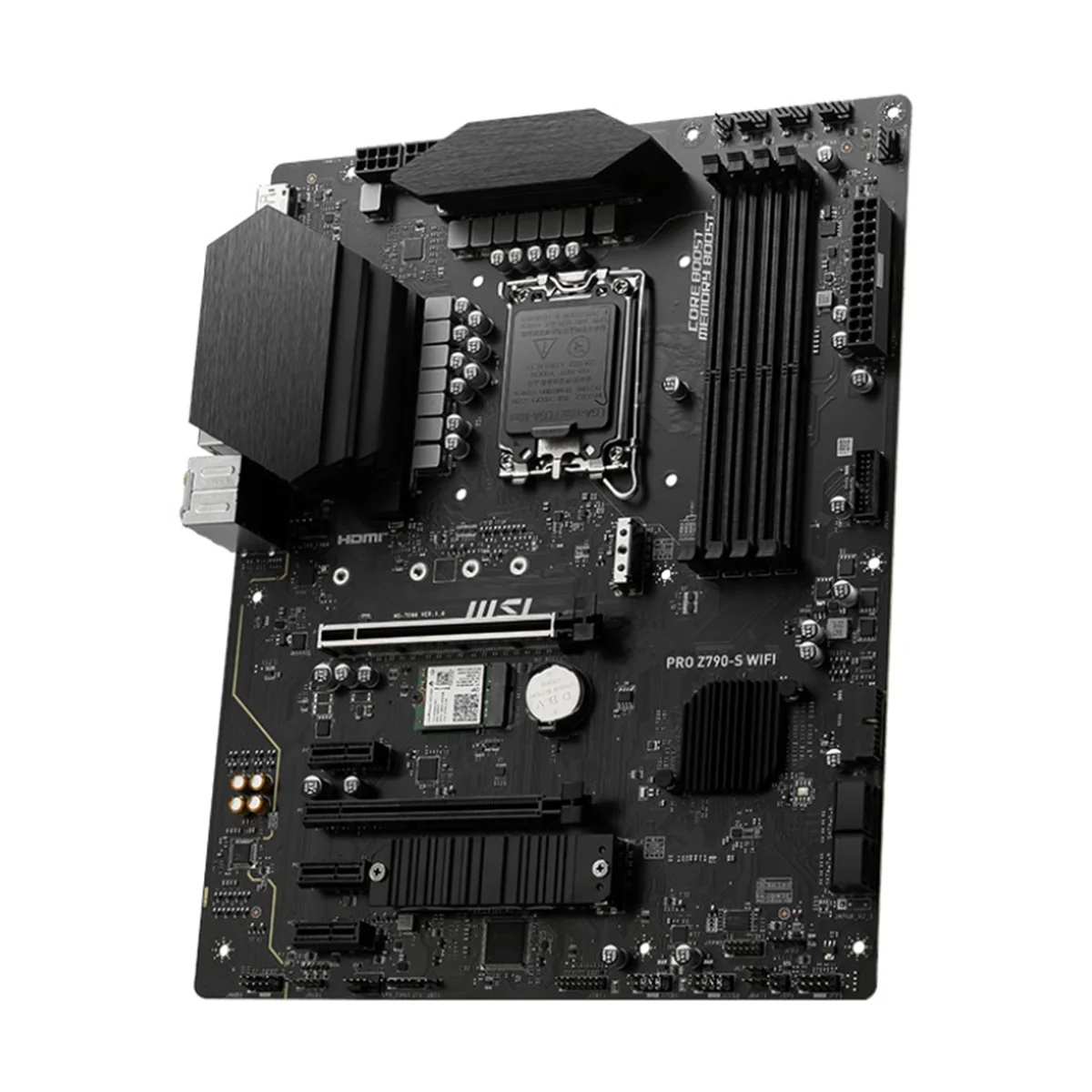

MSI Pro Z790-S Wifi DDR5 Intel Motherboard

PRO Z790-S WIFI

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
• Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications:

Chipset	INTEL Z790
CPU Support	Intel® Core™ 14th/13th/12th Gen, Pentium® Gold & Celeron® (LGA 1700)
Memory	4x DDR5 DIMMs, up to 256GB DDR5 6600+(OC) down to 4800MHz (JEDEC) Max Overclock: • 1DPC 1R: 6600+ MHz • 1DPC 2R: 6400+ MHz • 2DPC 1R: 6000+ MHz • 2DPC 2R: 5600+ MHz Dual-channel, XMP 3.0, non-ECC, un-buffered
Onboard Graphics	1x HDMI™ 1.4 (4K@30Hz) 1x DisplayPort 1.4 (4K@60Hz) *Only with supported CPUs featuring integrated graphics
Expansion Slots	2x PCI-E x16 (Gen 5.0 & 3.0) 3x PCI-E x1 (Gen 3.0)
Audio	Realtek® ALC897, 7.1 HD Audio, S/PDIF Out
Storage	2x M.2 (PCIe 4.0 x4 & PCIe 4.0/SATA) 4x SATA 6Gb/s RAID 0/1/5/10 support
USB Ports	Rear: 2x USB 2.0, 4x USB 5Gbps (Type-A), 1x USB 20Gbps (Type-C) Front: 4x USB 2.0, 4x USB 5Gbps (Type-A)
LAN	Realtek® RTL8125BG 2.5Gbps
Wireless & Bluetooth	Intel® Wi-Fi 6E (2.4/5/6GHz, up to 2.4Gbps) Bluetooth® 5.3, MU-MIMO *Wi-Fi 6E availability depends on region
Internal I/O	1x ATX_PWR, 2x CPU_PWR, CPU Fan, Pump Fan, 4x Sys Fan Front Panel connectors, JAUD, JCI, TPM, RGB Header, USB headers (USB 2.0, USB 5Gbps)

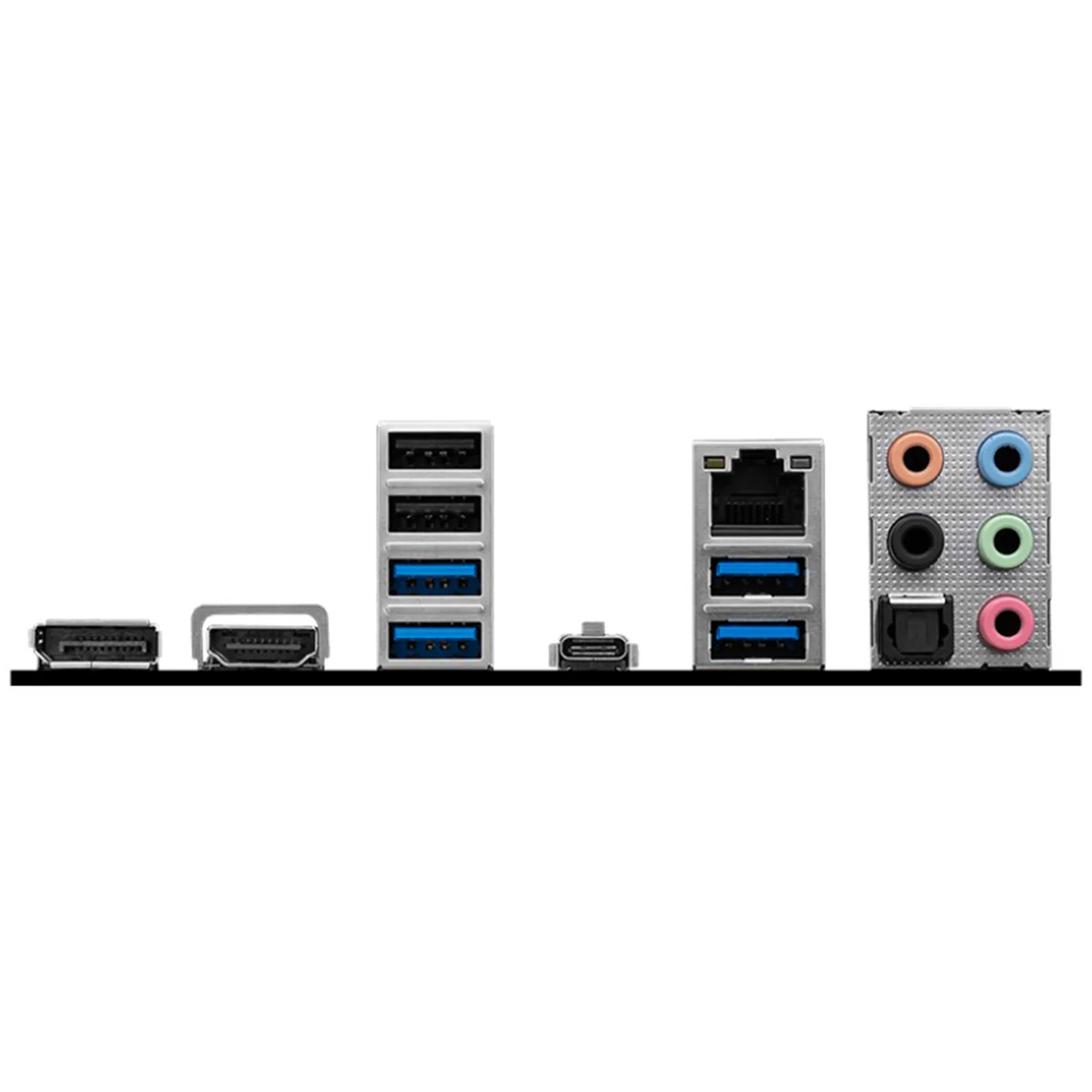

Back Panel Ports	HDMI™, DisplayPort, USB 2.0, USB 5Gbps (Type-A), USB 20Gbps (Type-C), 2.5G LAN, Audio connectors, S/PDIF Out
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	ATX (243.84mm x 304.8mm)
