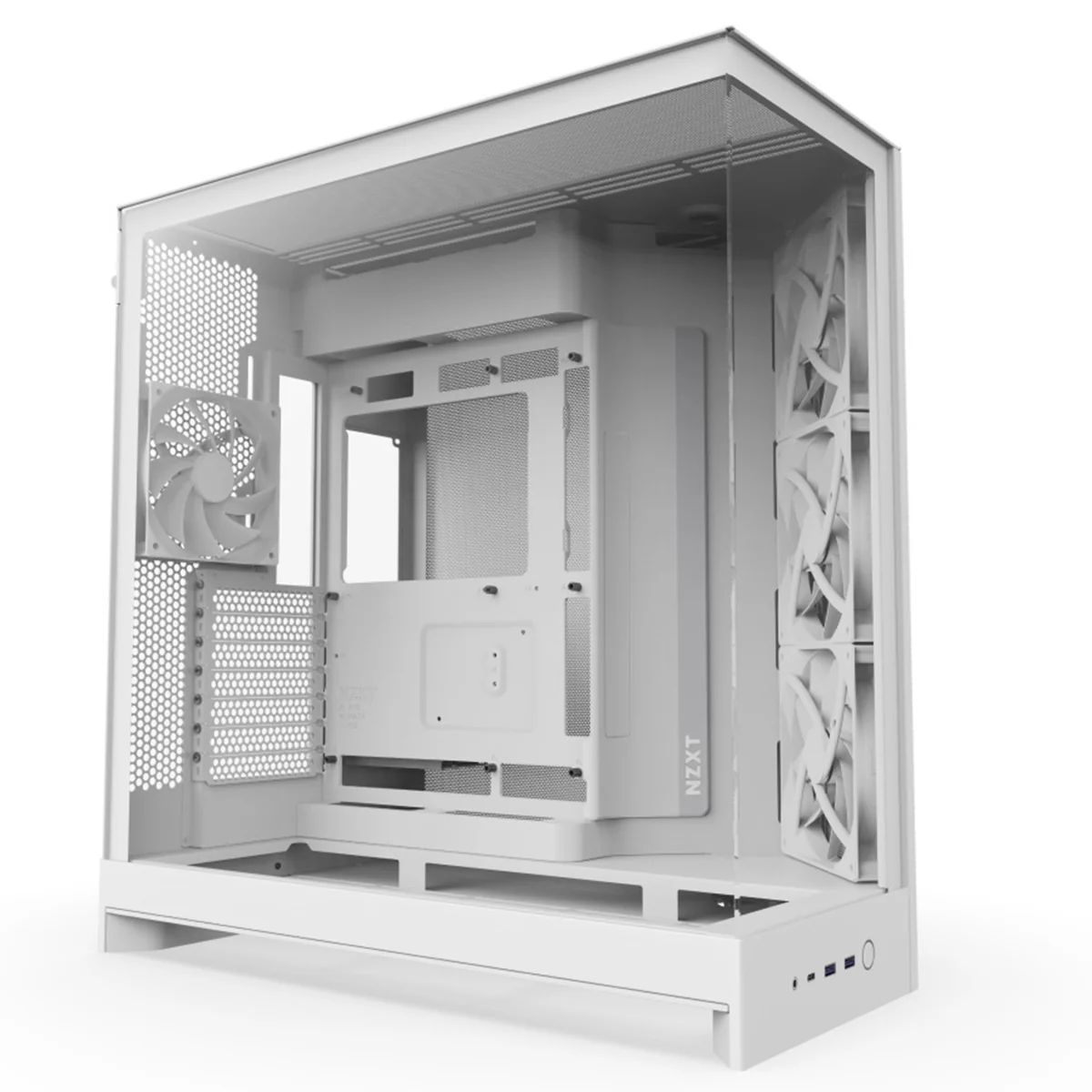

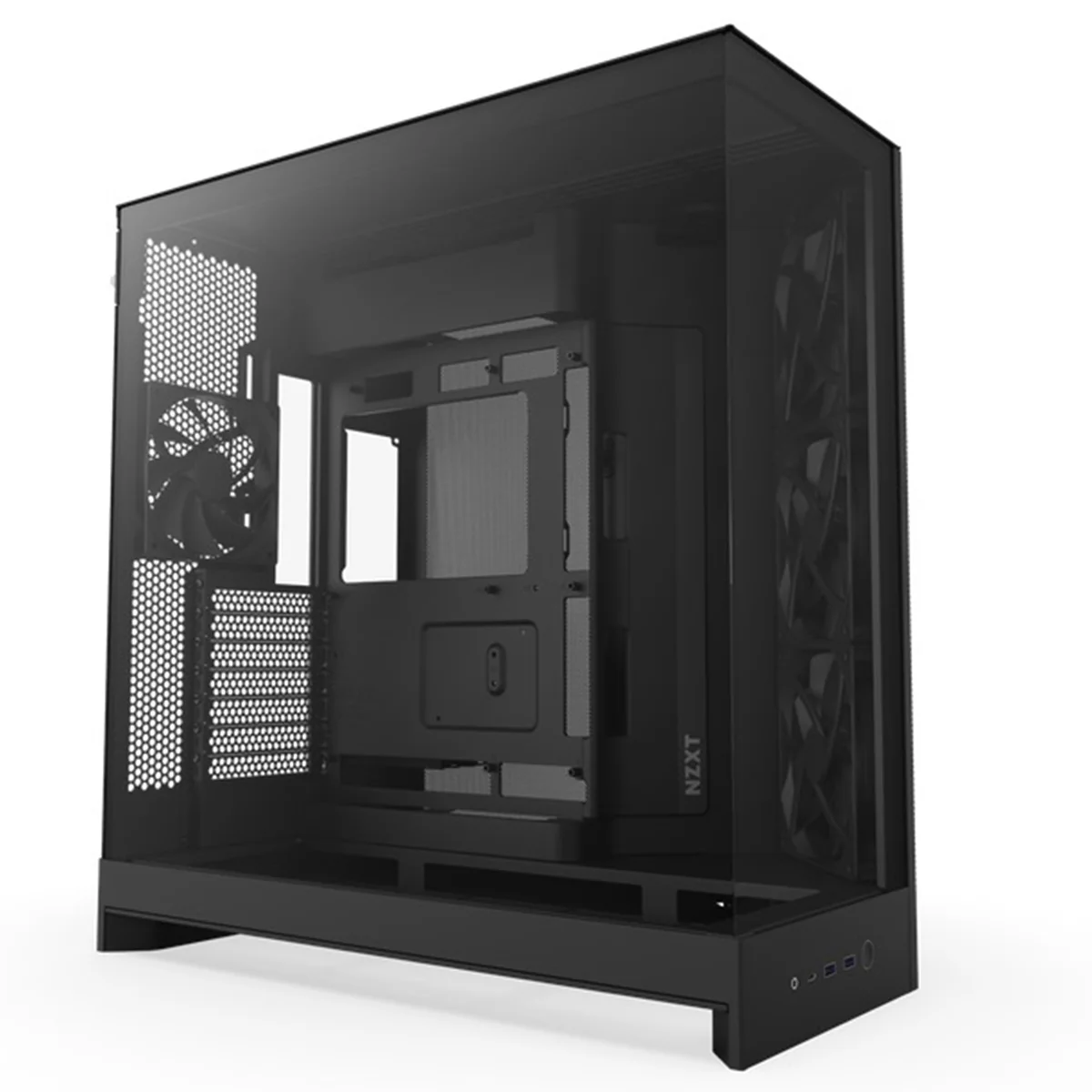

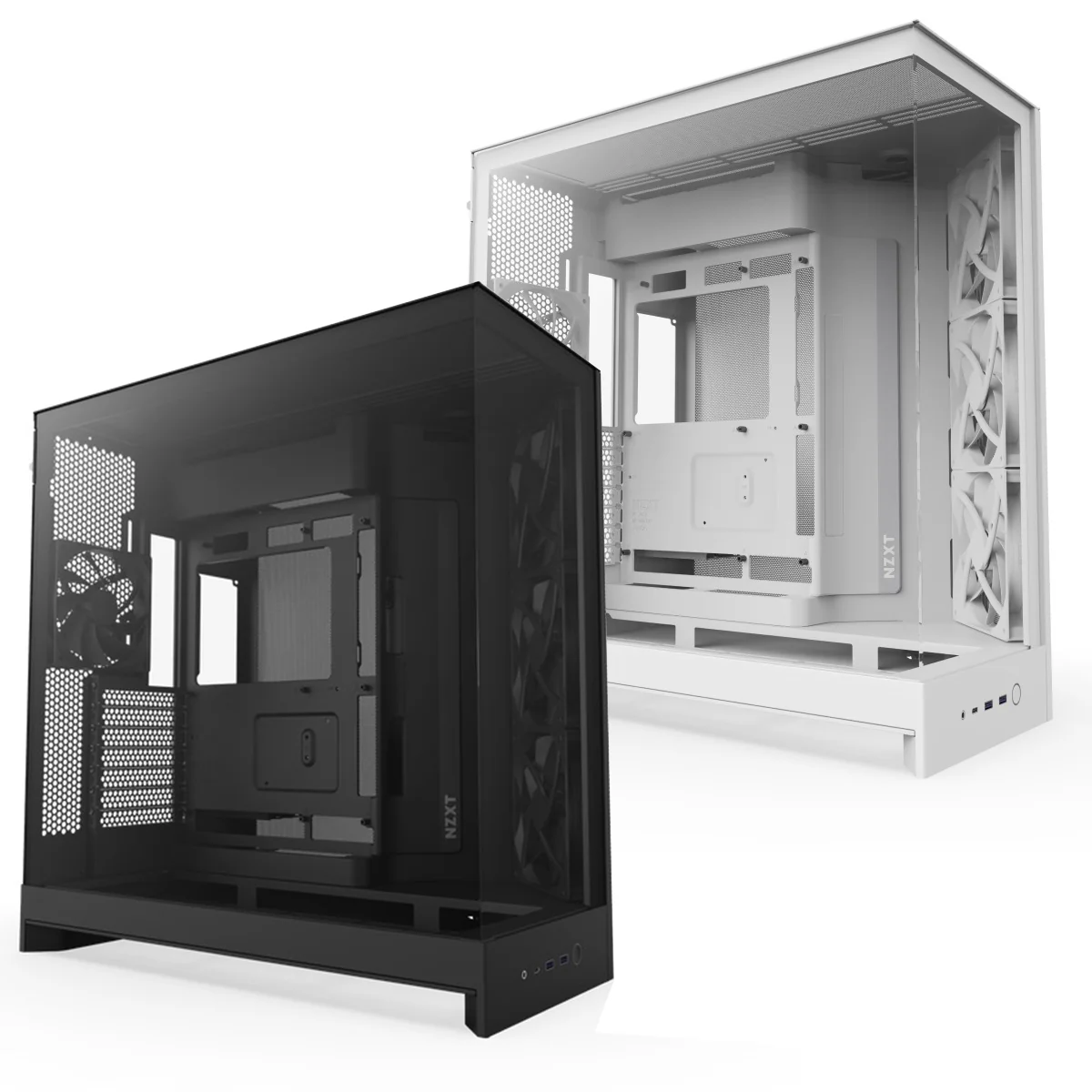

NZXT H9 Flow Large Dual-Chamber Mid-Tower ATX Airflow Case (Black, White)

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

• Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
• Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
• Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
• Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.

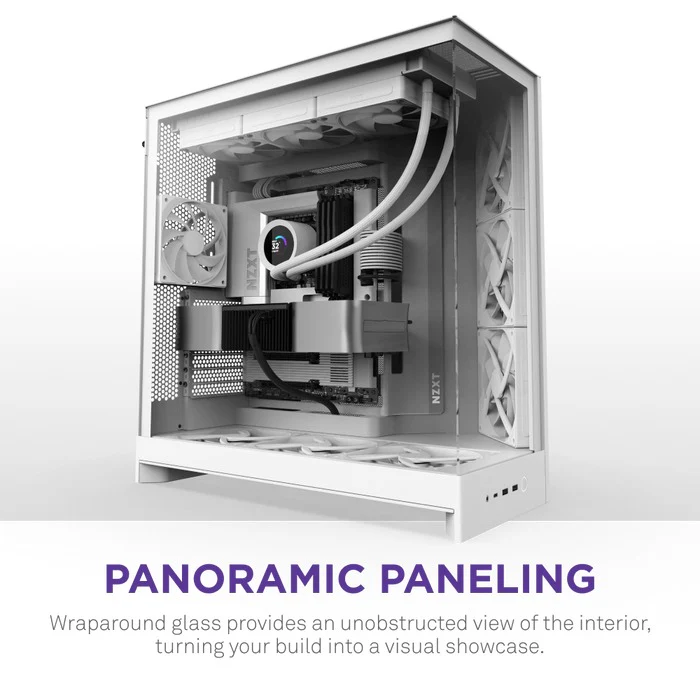

• Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
• Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.

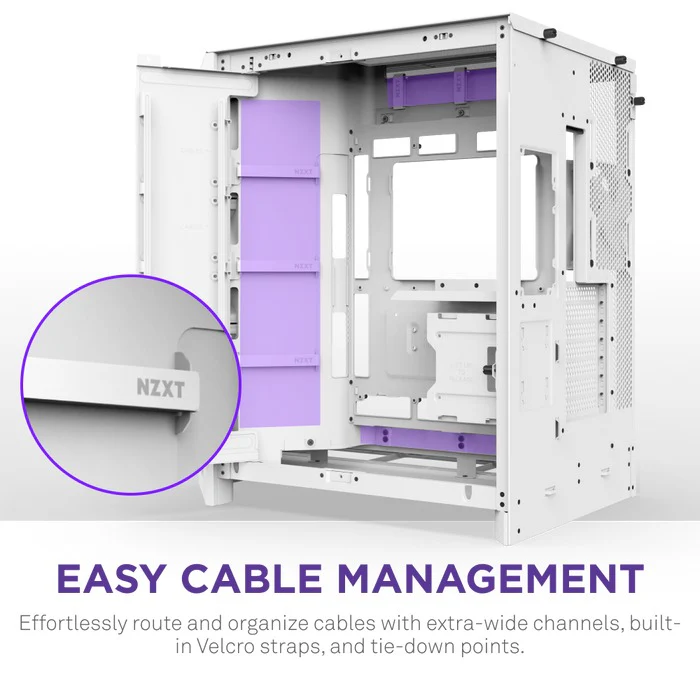

• Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
• Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

Specifications:

Dimensions	Height: 506 mm (19.9 in) Width: 315 mm (12.4 in) Depth: 481 mm (18.9 in) Volume: 76.7 L Weight: 12.46 kg (27.47 lb)
General	Enclosure Type: Mid-tower Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX Rear-Connecting Motherboard Support (BTF, Project Zero): Yes (ATX) Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Clearance	CPU Cooler Height: 165 mm GPU Length: Up to 459 mm (with <56 mm thickness fans at front-right), Up to 410 mm (with 56 mm thick 420 mm AIO and fans at front-right) PSU Length: 200 mm Top Radiator & Fan Thickness: Up to 80 mm (360 mm), Up to 62 mm (420 mm)
Front I/O Ports	USB 3.2 Type-A: 2 USB 3.2 Gen2x2 Type-C: 1 Headset Jack: 1
Expansion Slots	Standard: 7 Vertical: 0
Drive Bays	2.5": 4+2 3.5": 2
Fan Support	Front-Right: 3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included) Top: 3 x 120 mm / 3 x 140 mm Bottom: 3 x 120 mm / 3 x 140 mm Rear: 1 x 120 mm (1 x F120Q (CV) included)
Radiator Support	Front-Right: Up to 420 mm Top: Up to 420 mm Bottom: Up to 360 mm Rear: Up to 120 mm
Fan Specs - F140Q (CV)	Model: F140Q (CV) Speed: 1,350 ± 150 RPM Airflow: 100.25 CFM Static Pressure: 1.4 mmH2O Noise: 22.9 dBA Fan Connector: 3-pin
Fan Specs - F120Q (CV)	Model: F120Q (CV) Speed: 1,350 ± 150 RPM Airflow: 60.2 CFM Static Pressure: 1.05 mmH2O Noise: 24.1 dBA Fan Connector: 3-pin
