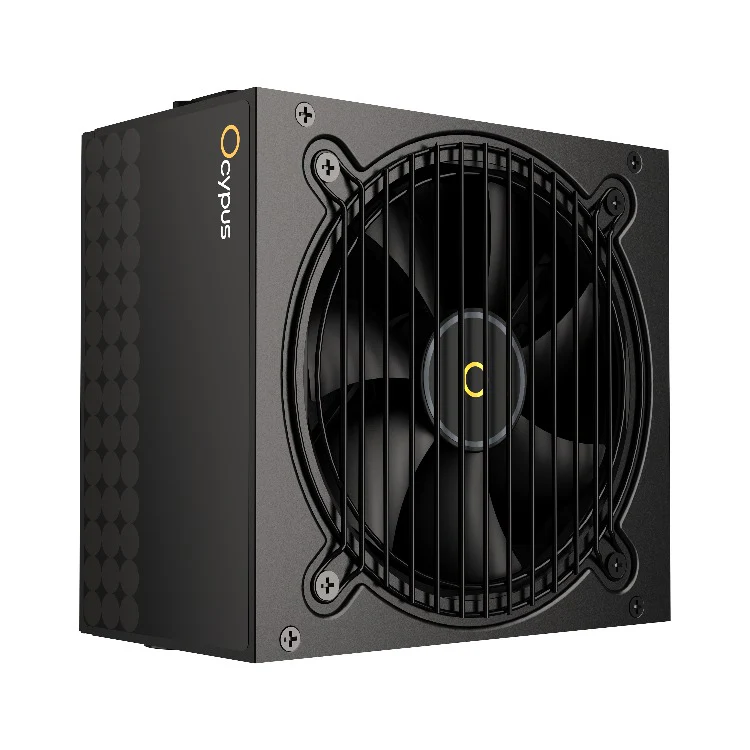

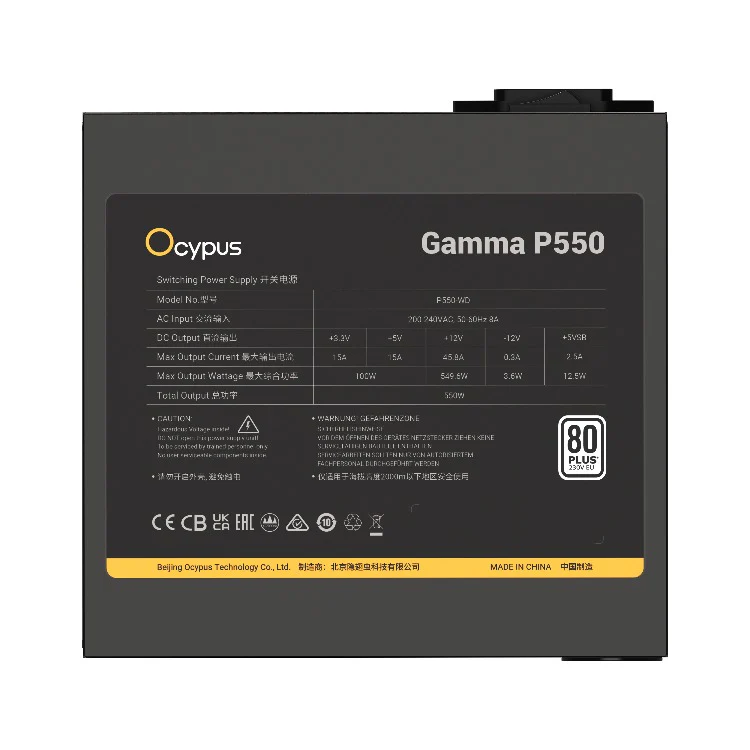

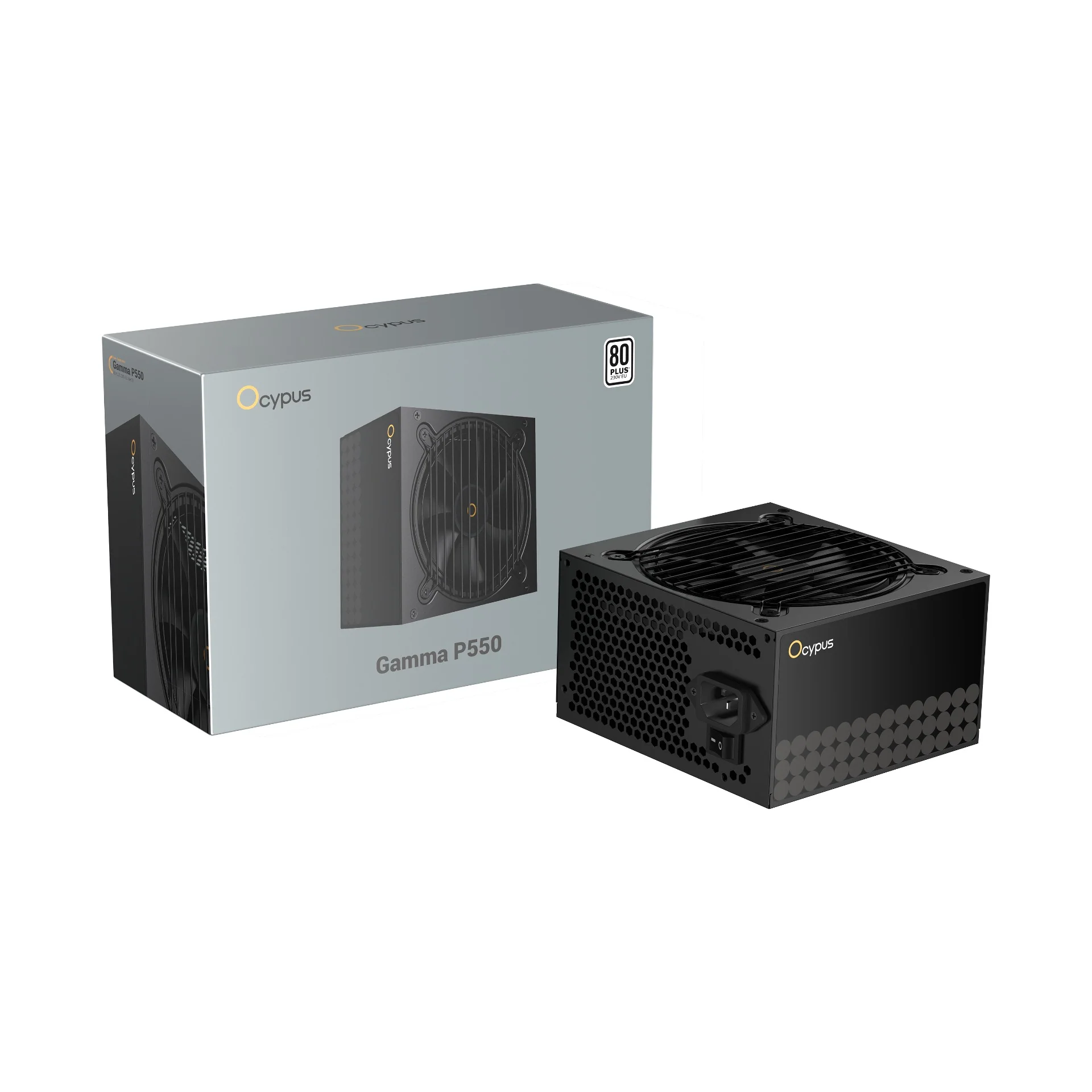

Ocypus Gamma P550 550W 80+ 230V Power Supply (Black)
• Equipped with the 80 PLUS 230V EU WHITE certification,
• Boasting conversion efficiency greater than 85% at 50% load,
• Featuring Active PFC + Double tube forward + DC to DC architecture,

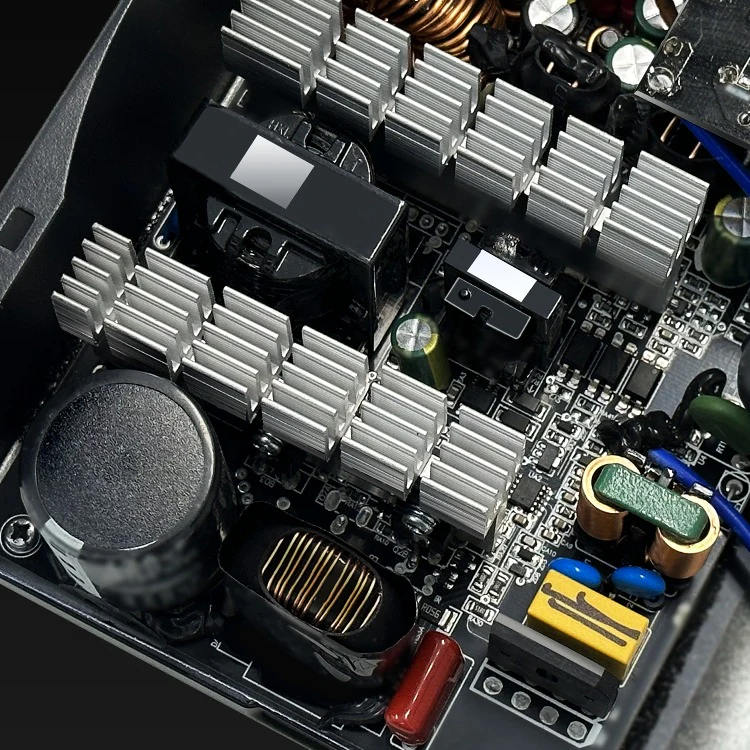

• Integrated with Taiwan bulk capacitor,
• Coming with thermal control function, providing stable and reliable operation.
Specifications:
| Basic | Type: ATX 2.53 Output Power: 550W Dimension: 150×140×86mm(WXLXH) 80PLUS Certification: 80 PLUS 230V EU WHITE Efficiency: >85% Under Typical Load (50% Loading) Topology: Active PFC+Double tube forward+DC to DC Net Weight: 1.35kg AC Input: 200-240V 50-60Hz 8A Protection: OVP/SCP/OPP Hold up time: >16ms(75% Load) Safety: CB/CE/UKCA/EAC/RCM/TUV/RoHs Environmental Compliance: RoHs Capacitors: Taiwan bulk capacitor Fan Type: Hydraulic Bearing Fan Size: 120mm Fan work mode: Thermal Control Modularity: Non modular |
| DC Output | +3.3V: 15A(100W) +5V: 15A(100W) +12V: 45.8A(549.6W) -12V: 0.3A(3.6W) +5VSB: 2.5A(12.5W) |
| Output Cable | Main Power Connector(24 Pin) 1: 550mm CPU(4+4) X2: 610mm+150mm PCI-E(6+2)Pin X2: 510mm+150mm SATAX3&4Pin Peripheral X 1: 450mm+150mm+150mm+150mm |
| Output Cable Quantity | Main Power Connector(24 Pin) X1: 1 CPU(4+4) X2: 1 PCI-E (6+2) Pin X2: 1 SATA X 3&4Pin Peripheral X1: 1 |
$11.20
Original: $37.32
-70%Ocypus Gamma P550 550W 80+ 230V Power Supply (Black)—
$37.32
$11.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
• Equipped with the 80 PLUS 230V EU WHITE certification,
• Boasting conversion efficiency greater than 85% at 50% load,
• Featuring Active PFC + Double tube forward + DC to DC architecture,
• Integrated with Taiwan bulk capacitor,
• Coming with thermal control function, providing stable and reliable operation.
Specifications:
| Basic | Type: ATX 2.53 Output Power: 550W Dimension: 150×140×86mm(WXLXH) 80PLUS Certification: 80 PLUS 230V EU WHITE Efficiency: >85% Under Typical Load (50% Loading) Topology: Active PFC+Double tube forward+DC to DC Net Weight: 1.35kg AC Input: 200-240V 50-60Hz 8A Protection: OVP/SCP/OPP Hold up time: >16ms(75% Load) Safety: CB/CE/UKCA/EAC/RCM/TUV/RoHs Environmental Compliance: RoHs Capacitors: Taiwan bulk capacitor Fan Type: Hydraulic Bearing Fan Size: 120mm Fan work mode: Thermal Control Modularity: Non modular |
| DC Output | +3.3V: 15A(100W) +5V: 15A(100W) +12V: 45.8A(549.6W) -12V: 0.3A(3.6W) +5VSB: 2.5A(12.5W) |
| Output Cable | Main Power Connector(24 Pin) 1: 550mm CPU(4+4) X2: 610mm+150mm PCI-E(6+2)Pin X2: 510mm+150mm SATAX3&4Pin Peripheral X 1: 450mm+150mm+150mm+150mm |
| Output Cable Quantity | Main Power Connector(24 Pin) X1: 1 CPU(4+4) X2: 1 PCI-E (6+2) Pin X2: 1 SATA X 3&4Pin Peripheral X1: 1 |
