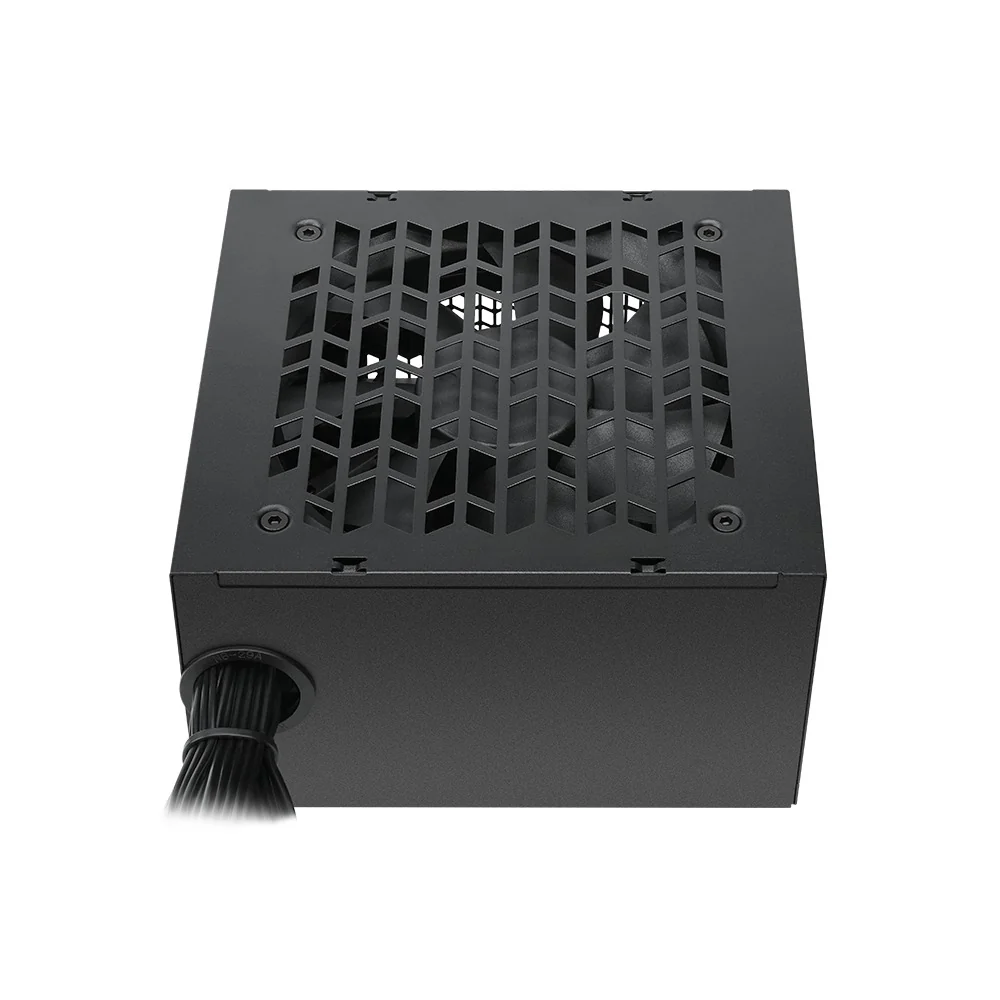

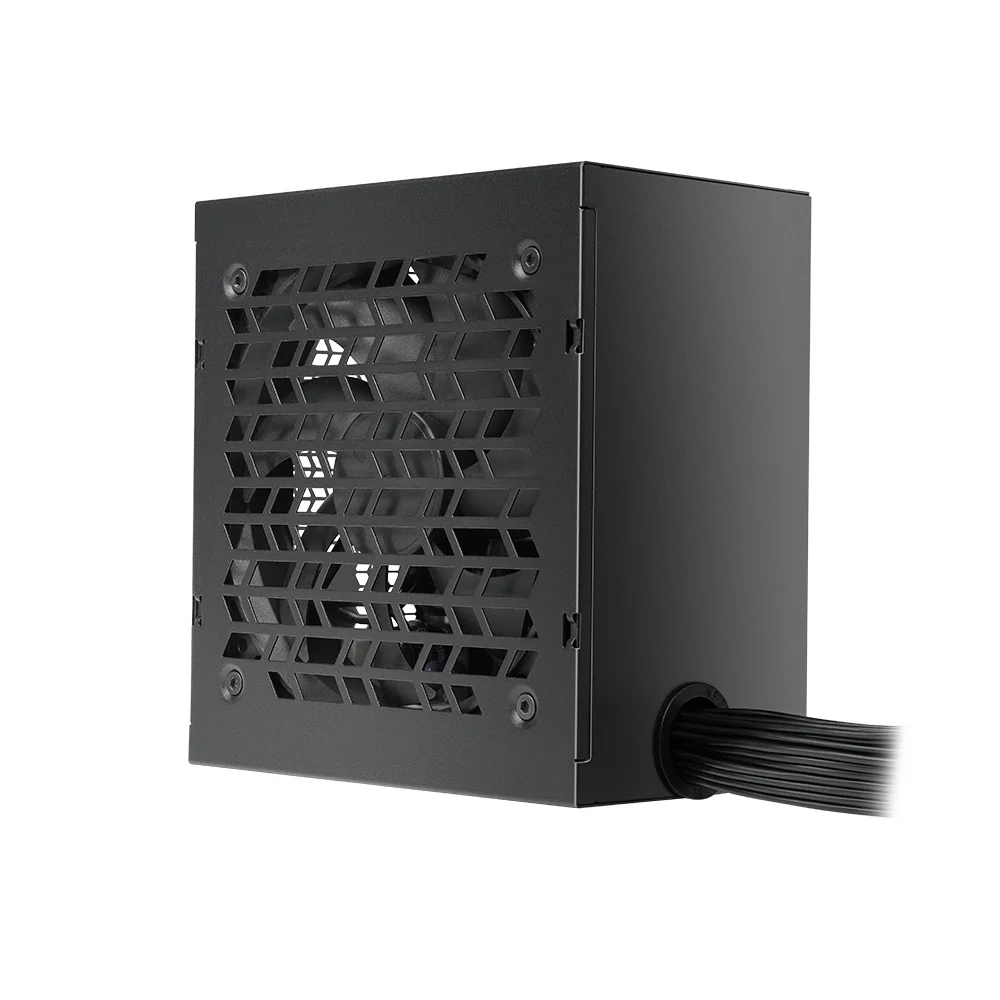

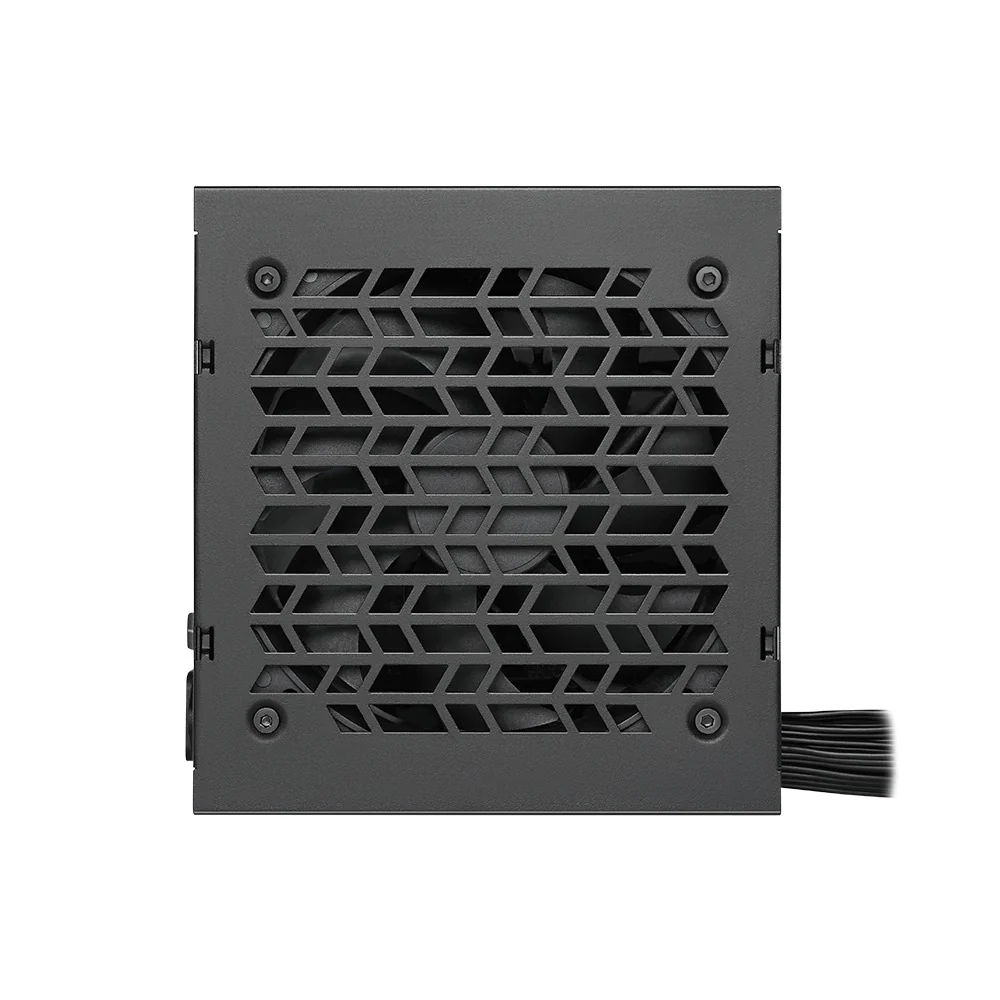

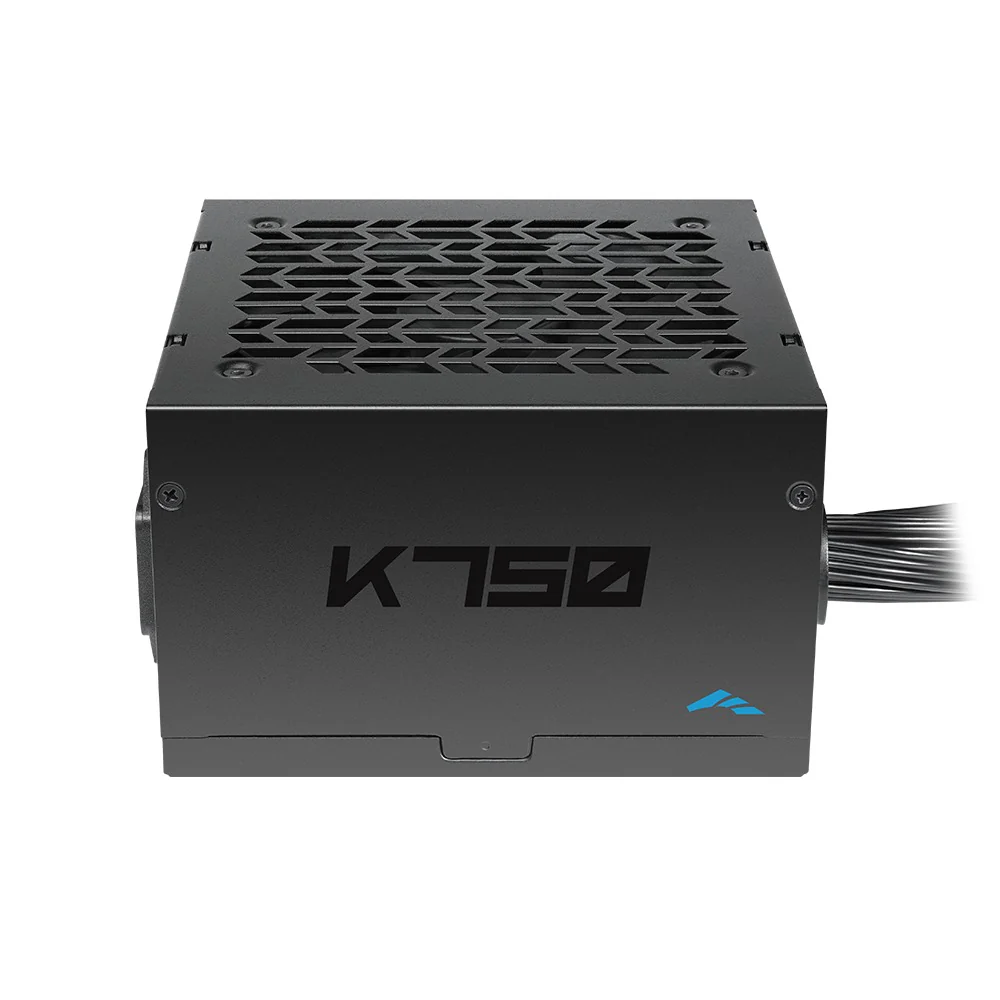

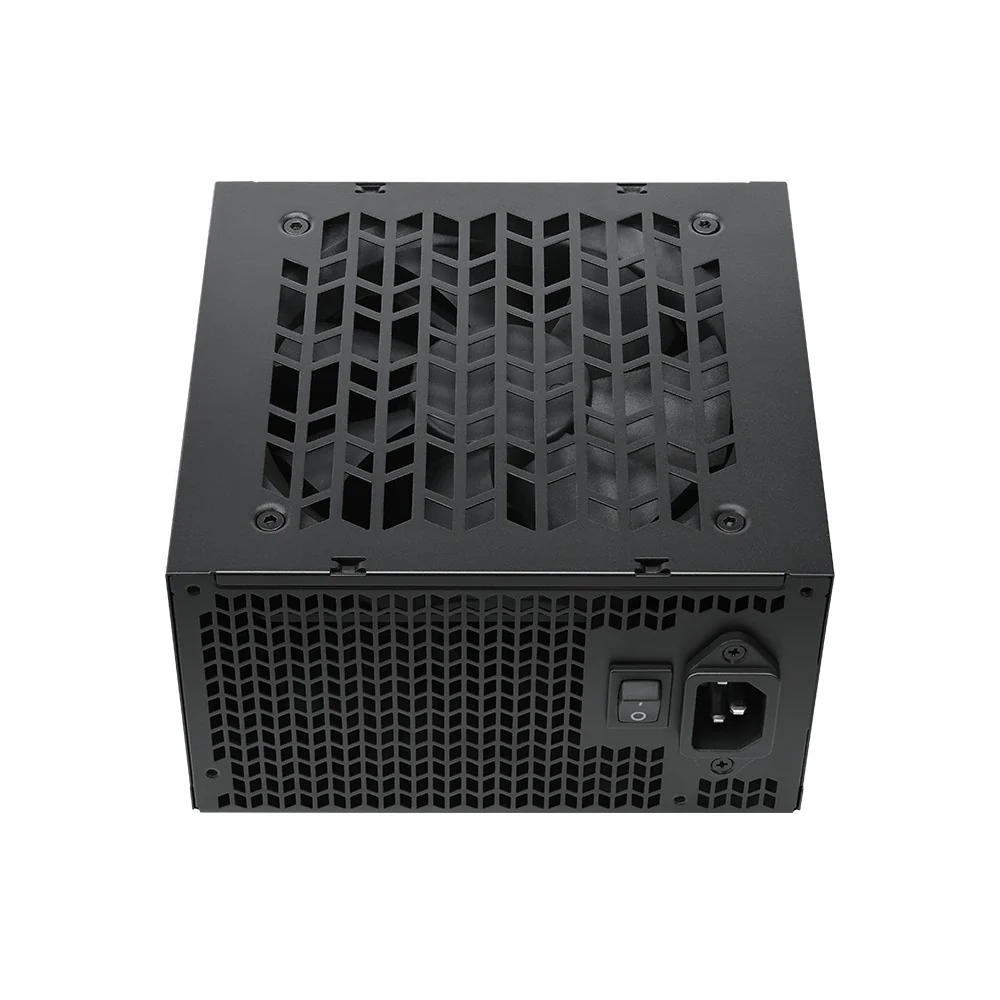

Sama K750 750W 80+ Bronze ATX 2.52 Non-Modular Power Supply (Black) (K0750-BKBFWA25-US)

This 750W power supply unit is built to provide stable and efficient power for mid- to high-performance desktop systems. Designed in the ATX 2.52 form factor, it features a non-modular layout, meaning all cables are fixed to the unit for straightforward installation. The compact 140 × 150 × 86 mm chassis, finished in black, ensures compatibility with most standard PC cases.

With an 80 PLUS Bronze certification, the PSU delivers over 85% efficiency at typical 50% load, helping to reduce power loss and heat generation. It supports a wide AC input range of 100–240V, making it suitable for global use. The unit is engineered with a robust internal topology that includes Active Power Factor Correction (APFC), Half-Bridge LLC, synchronous rectification (SR), and DC-DC conversion, ensuring consistent voltage regulation and reliable performance under varying loads. Its MTBF rating of 100,000 hours reflects long-term durability.



GENERAL SPECIFICATIONS
Output Power	750W
Form Factor	ATX 2.52
Modularity	Non-Modular
Dimensions	140 x 150 x 86 mm (L x W x H)
Color	Black
80PLUS Certification	Bronze
Efficiency	>85% Under Typical Load (50% Load)
MTBF	100,000 Hours
FAN & ELECTRICAL
Fan Size / Bearing	120 mm / Sleeve Fan
AC Input	100–240 Vac
Topology	APFC + Half-Bridge LLC + SR + DC-DC
Protection	UVP, OVP, OCP, OPP, NLP, SCP
Operating Temp.	0–40 °C
CONNECTORS & CABLES
MB ATX 24-Pin	1x (550 mm)
CPU (4+4) Pin	2x (700 + 150 mm)
PCI-E (6+2) Pin	4x (2 cables, 550 + 150 mm each)
SATA	6x (Across 2 cables)
Molex	2x (Across 2 cables)
