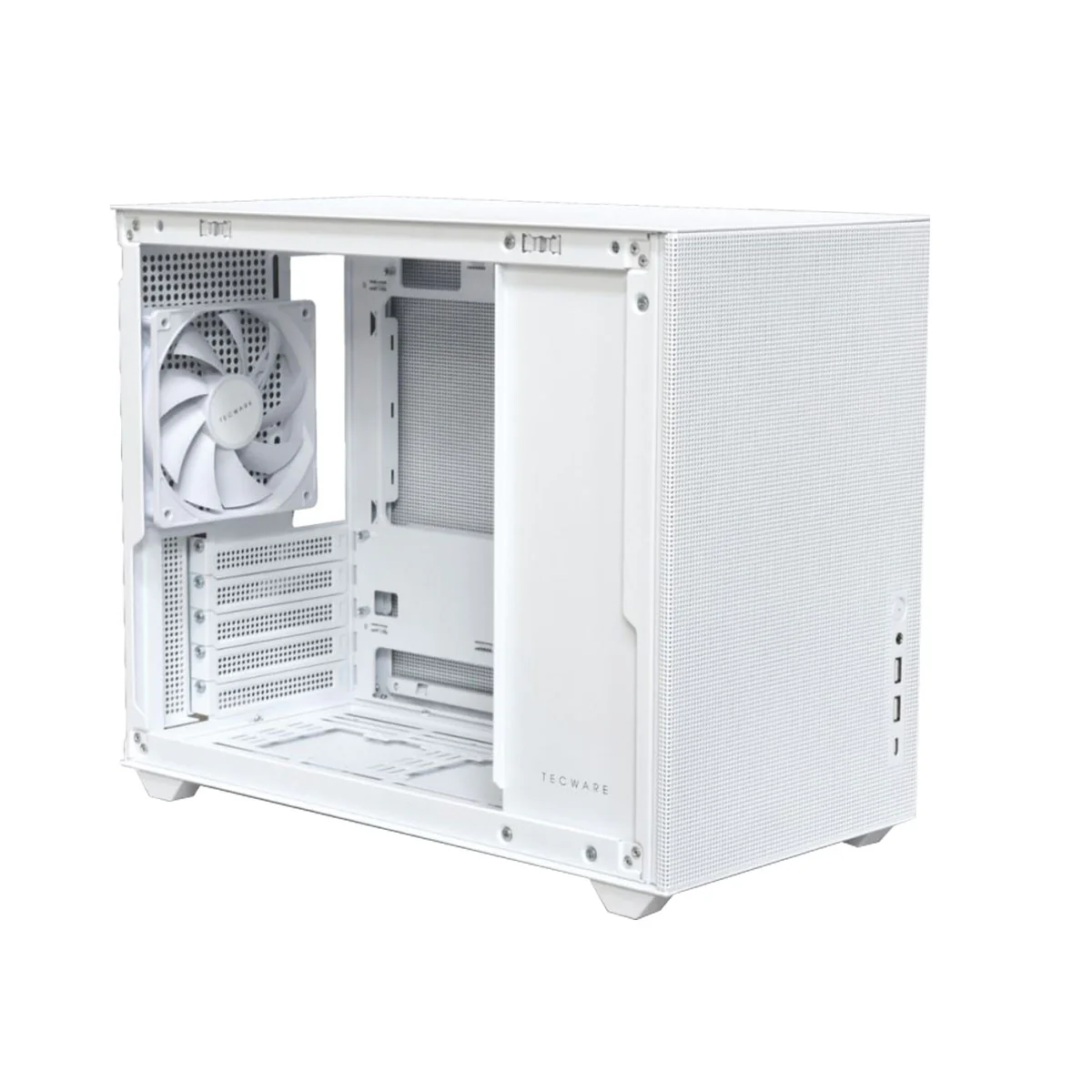

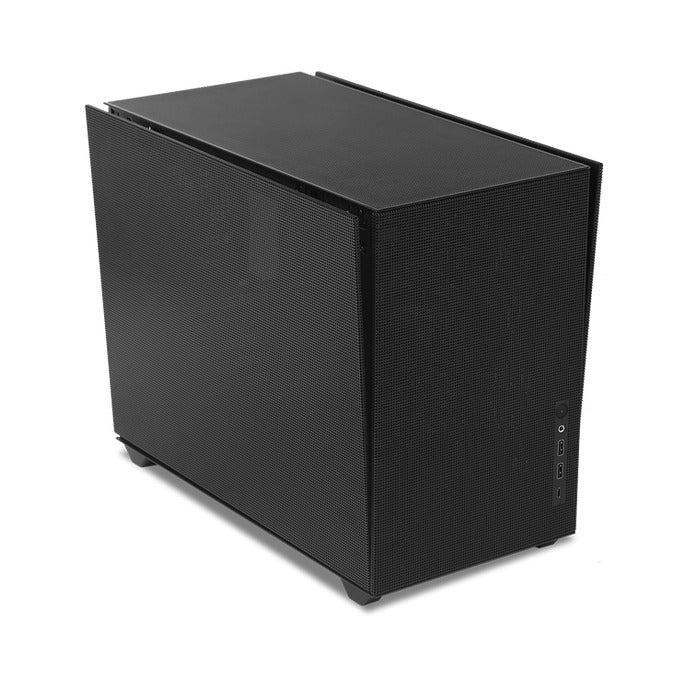

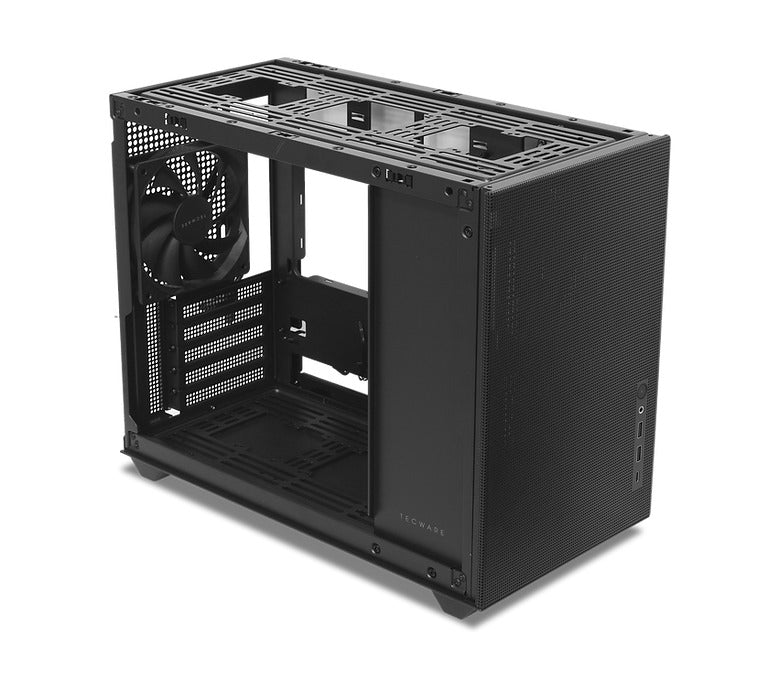

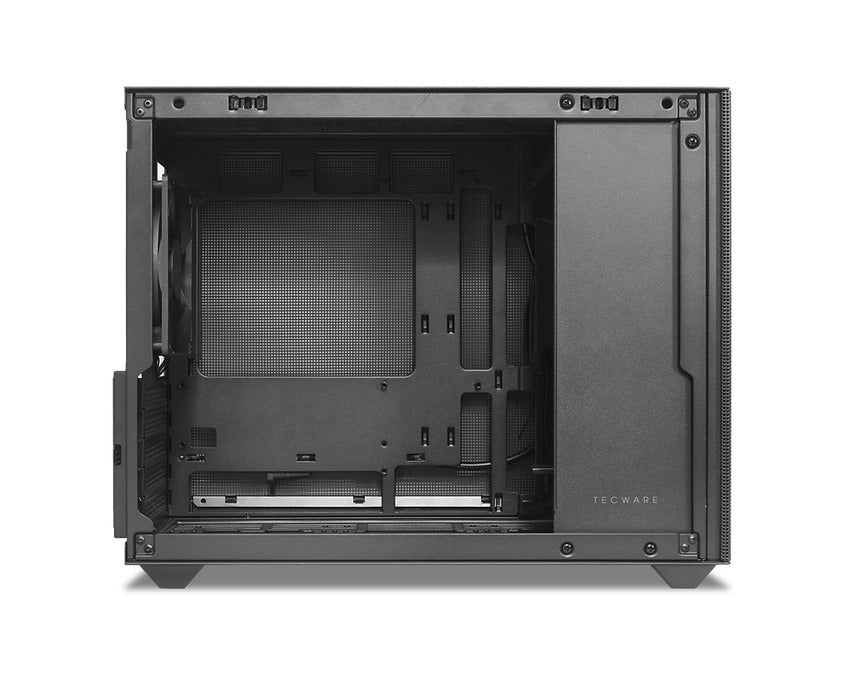

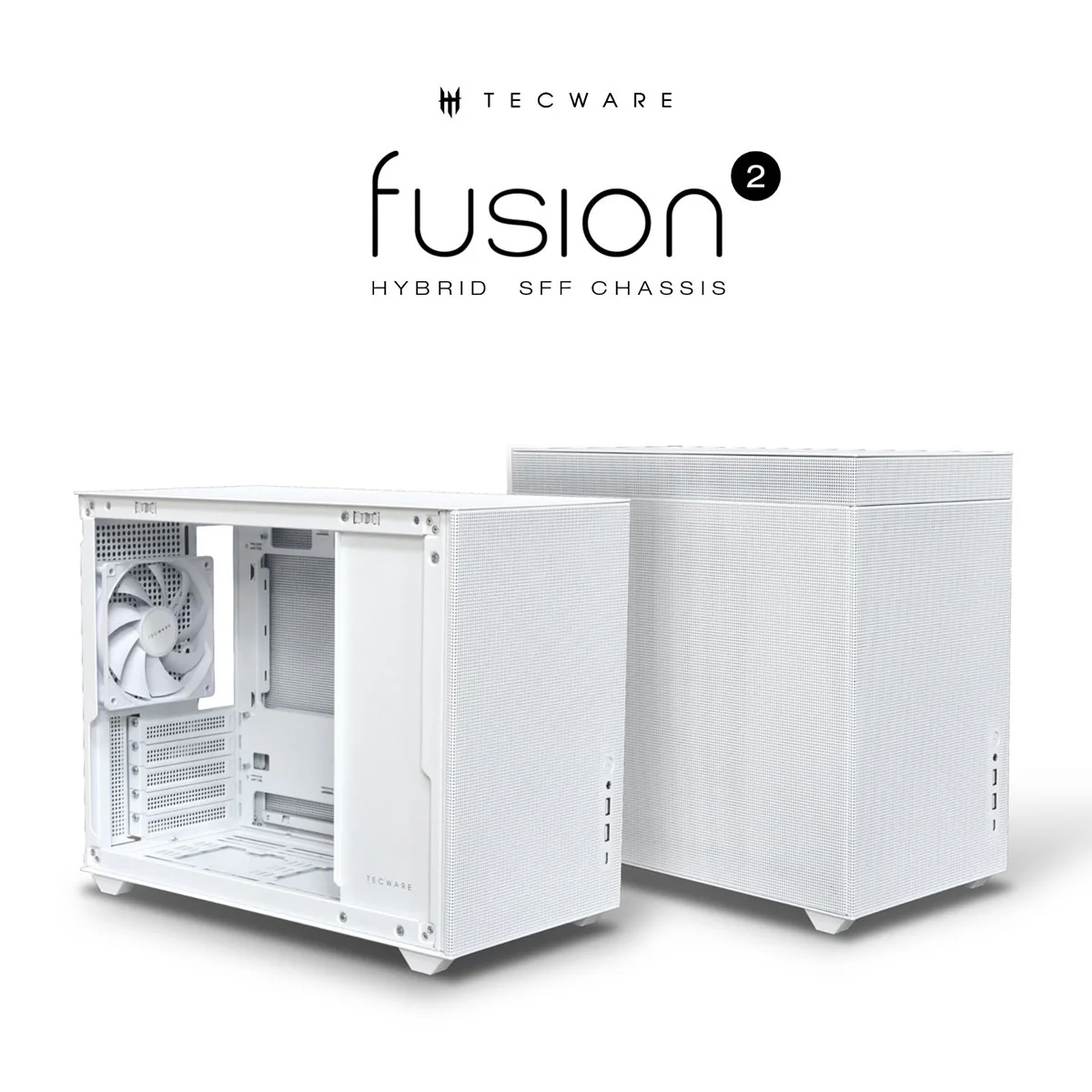

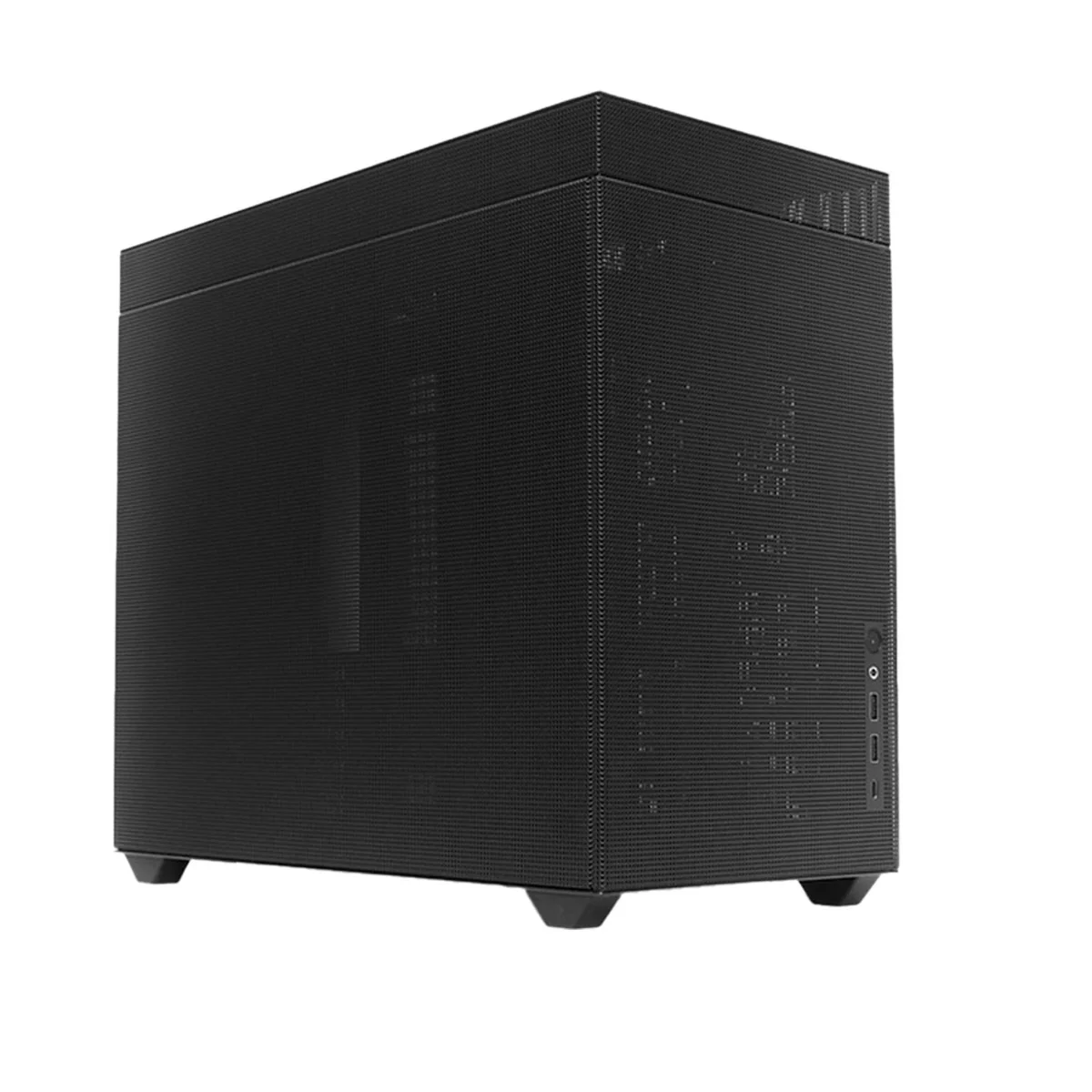

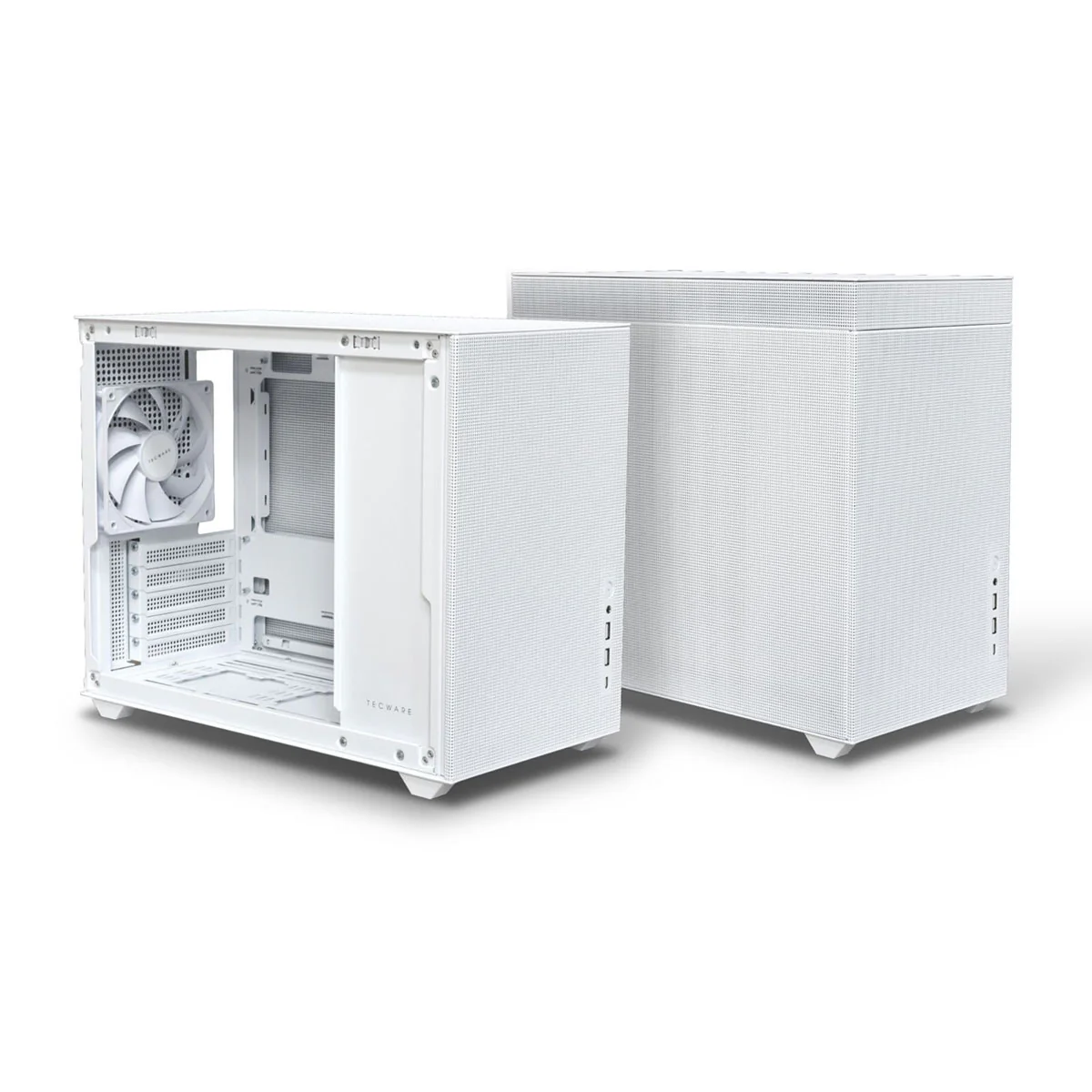

Tecware Fusion 2 Hybrid SSF ITX/MATX + 120MM Fan Case

Technical Specifications:

I/O
USB 3.0 x 02 + HD Audio + USB Type-C
Invertible I/O panel

BAYS (drives share position with fans)
Top: up to 2x SSD / HDD dependent on PSU pos.
Bottom: up to 2x SSD / HDD dependent on PSU pos.
5x PCIe slots (reusable)
​
FANS (fans share position with drives)
Top: 2x 120 / 1x 140mm
        up to 3x 120 / 2x 140mm with ext. chamber
Bottom: 2x 120mm
              up to 3x 120mm no front fan
Front: 1 x 120mm
Rear: 1 x 120mm (included)
​
HARDWARE CLEARANCE

mATX / ITX - Motherboard

ATX / SFX - Power Supply

355mm Max GPU Length (Top PSU)

280mm Max GPU Length (Top PSU lowered pos. / Bottom PSU)

165mm Max CPU Cooler Height
PSU Length (dependent on GPU length)


RADIATOR CLEARANCE

Top / Bottom: 240 / 280mm with ext. chamber

​

SIZE & WEIGHT

Dimensions: L391*W205*H362mm with ext. chamber

                     L391*W205*H325mm w/o ext. chamber

Weight: 6.9Kg
